Moyno Metering Pumps Specs

Product catalog summary

Overview: This document provides detailed specifications for Moyno's metering/dosing pumps, including bare shaft, close-coupled, and motorized models. It outlines materials of construction, dimensions, and available configurations.

Materials of Construction: The pumps are constructed using 316 SS/Cast Iron for housings, 316 SS/416 SS for rotors, and various materials for stators including Nitrile, Natural, EPDM, and Fluoroelastomer.

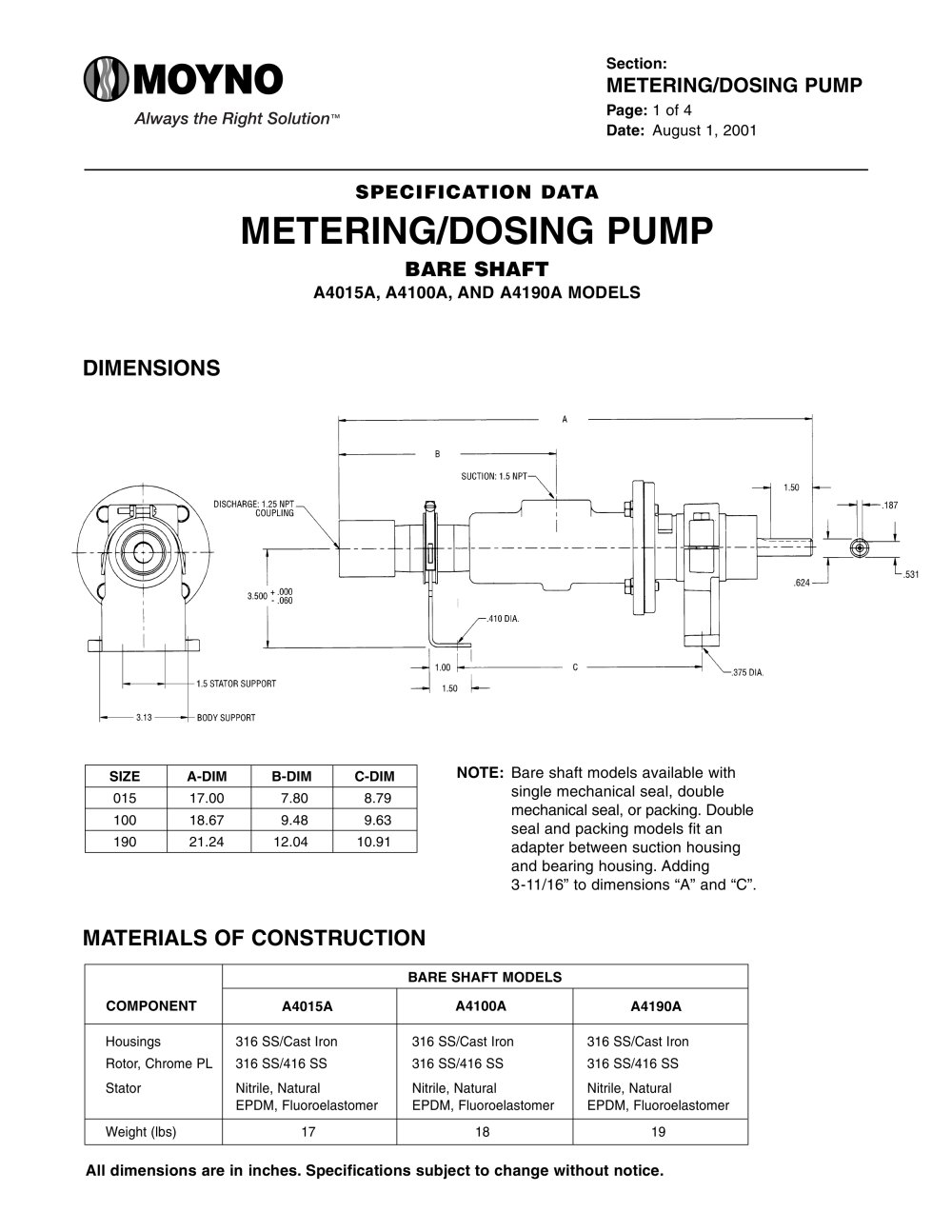

Bare Shaft Models: Models A4015A, A4100A, and A4190A are available with single or double mechanical seals or packing. Dimensions vary by model, with additional length for double seal and packing configurations.

Close Coupled Models: Models B4015B, B4100B, B4190B, and others are available with mechanical seals or packing. They feature different drive selections and dimensions based on the model.

Motorized Models: Models C4015J, C4100J, C4190K, and others are equipped with motors ranging from 0.5 HP to 1.0 HP, available in AC and DC configurations. These models are only available with mechanical seals.

Model Numbering System: The document explains the model numbering system, detailing type, stages, capacity, drive options, body and internal materials, stator materials, sealing options, and rotor variations.

Key Features: The pumps are designed for various capacities (15 GPH, 100 GPH, 190 GPH) and are adaptable with different drive and sealing options. Special configurations are available upon request.

Catalog excerpts

DescriptionTypical Model No. ٢ޛ A4015ASSQ3SAAType Standard Bare ShaftA Close-CoupledB MotorizedC Stages 4-Stage 4 Capacity,Size 15 GPH Max.015 100 GPH Max.100 190 GPH Max.190 Drive Options None (Bare Shaft)A 56C-Face (Close-Coupled)B 140TC-Face (Close-Coupled)C SEW Eurodrive (Close-Coupled)D .5 HPDC-90V (Motorized)E 1.0 HPDC-90V (Motorized)F .5 HPAC 230/460-3-60 (Motorized)G 1.0 HPAC 230/460-3-60 (Motorized)H .5 HPAC 115/230-1-60 (Motorized)J 1.0 HPAC 115/230-1-60 (Motorized)K Nord (Close-Coupled)L Special To OrderX Body Materials Cast IronC Stainless SteelS Internal Materials 416 Stainless SteelD...

Open the catalog to page 4
