Moyno 1000 Brochure

Moyno 1000 Brochure

Product catalog summary

Overview: The Moyno 1000 pump is designed to offer high-efficiency performance with versatility and ease of maintenance. It provides a combination of benefits that are unmatched by other positive displacement pumps.

Key Features:

Sealed pin joint for extended lifespan.
Low maintenance and ownership costs.
Available in standard flange, close-coupled, and open throat hopper models.
Constructed from a wide range of materials.
High volumetric and mechanical efficiency with minimal power consumption.
Handles a variety of fluids from clean water to viscous, abrasive slurries.
Non-pulsating flow and low NPSH requirement.
Self-priming with high suction lift capabilities.

Design and Construction:

Features abrasion-resistant chrome-plated rotors and a variety of stator elastomers.
Versatile piping connections with flanges available in different materials and configurations.
Progressing cavity pump operation with a simple principle involving rotor and stator components.

Maintenance and Durability:

Easy assembly and disassembly with standard tools.
Low-maintenance drive trains with sealed, lubricated joints.
Long-lasting drive ends with precision-machined components.

Applications: Moyno 1000 pumps are used in various industries including water and wastewater treatment, pulp and paper, chemical, pharmaceutical, petroleum, and more.

Service and Support: Moyno offers certified service facilities ensuring high-quality service and parts. Distributors provide maintenance programs, extensive inventory, and 24-hour support.

Contact Information: For more information or technical assistance, contact Moyno, Inc. at their Springfield, OH address or through their provided contact details.

Catalog excerpts

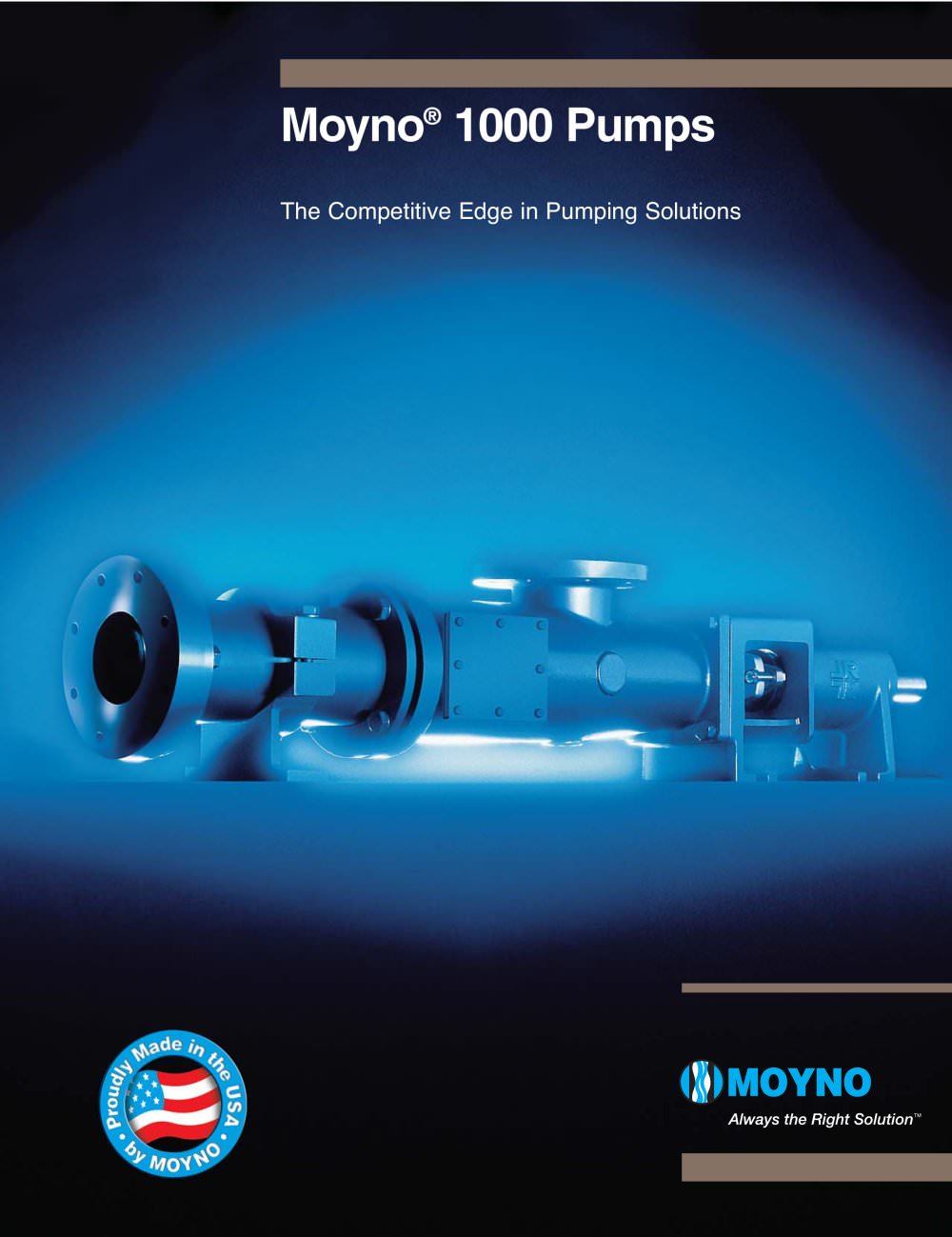

The Competitive Edge in Pumping Solutions >

Open the catalog to page 1

Transferring dewatered filter cake at 20 gpm and 20 psig. >

Open the catalog to page 2

1. Abrasion-resistant chrome-plated rotors in high grade carbon steel or 300 series stainless. New Ultra-Shield 4. Flanges available in 125 or 150 lb.flat face, cast iron or stainless steel on pump suction and discharge ends.Ε300 lb. raised face flanges on discharge end of four-stage, high-pressure pumps. > rotor coatings are available on all models. 2. Wide variety of Ultra-Flex > ή stator elastomers to meet specific application needs. 5. Suction port can be rotated to four positions, 90˚ apart. Open throat with large suction hopper allows smooth flow of viscous materials from auger assembly...

Open the catalog to page 3

6. Only standard tools needed for repairs. 8. Hardened pin-type universal joints are sealed and lubricated for long life and easy maintenance.Low angularity minimizes wear. ՕDurable connecting rod and rotor/shaft head.No thin bushings used.ՕSpare set of pin holes extendsservice life. 11. Connecting rod is precision machined from high-quality alloy steel or 300 series stainless.Provides low angularity, minimum velocity and smaller universal joint contact area.ՕReduces friction heat and increases service life and maximum torque to easily handle heavy fluids. 7. Drain plug allows easy, complete...

Open the catalog to page 4

Moyno 1000 pumps successfullyserve in thousands of applications worldwide across a broad range of industries that include: > Chemical metering Coating colorStarchStock transfer Mill wastewater Oily water separation Offshore oil platform transferPolymer flooding > Chemical dosingScum and greaseSamplingLime slurriesPolymer metering > Adhesives and masticsGrout High-pressure water Gels Lubricants Polyester blend Calcium carbonate slurry Polymer metering Soaps and detergents > Pill pastes Hand lotions >

Open the catalog to page 5
