Motoman YS850L 4-Axis SCARA Robot
2Pages

{{requestButtons}}

Catalog excerpts

Motoman YS850L 4-Axis SCARA Robot - 1

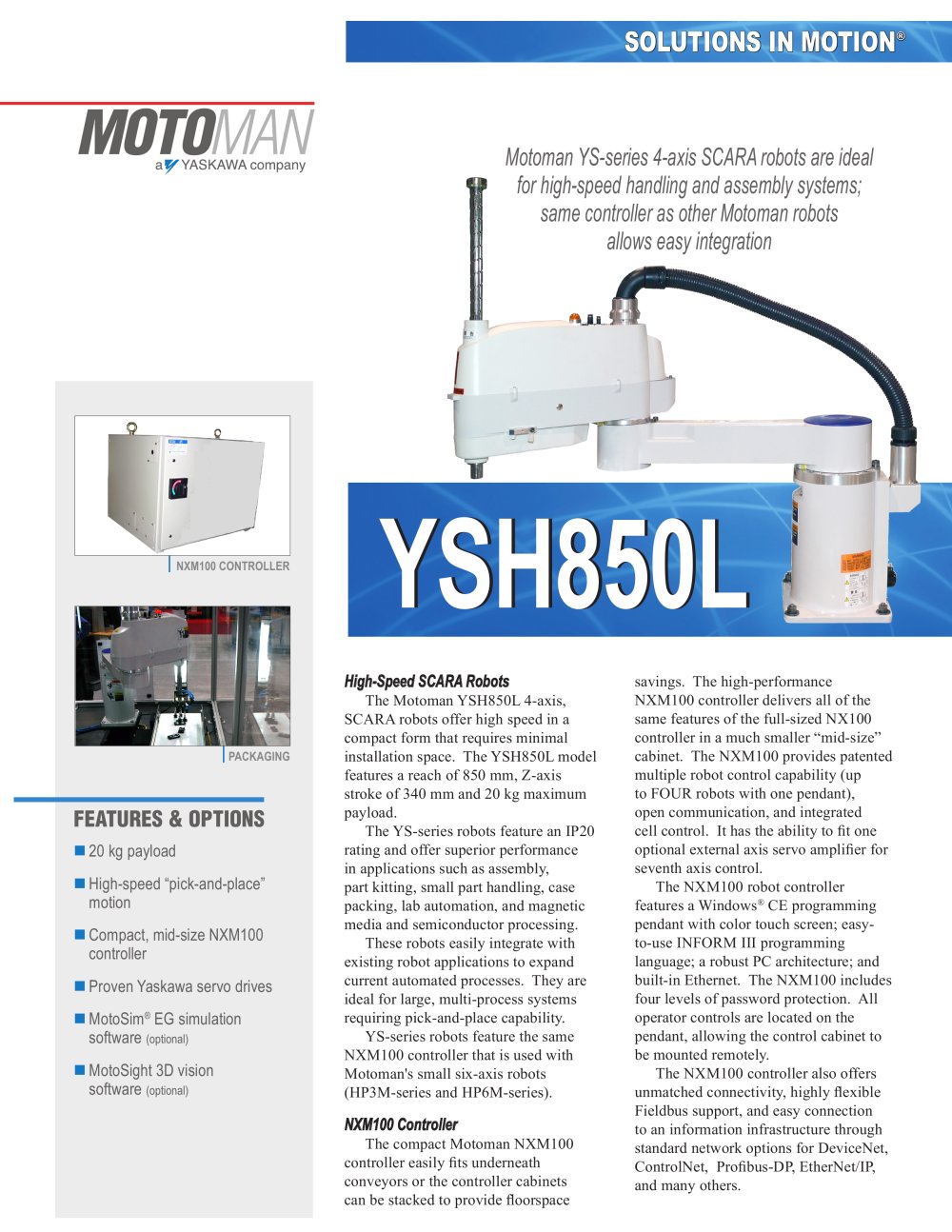

YSH850L PACKAGINGHigh-Speed SCARA Robots The Motoman YSH850L 4-axis, SCARA robots offer high speed in a compact form that requires minimal installation space. The YSH850L model features a reach of 850 mm, Z-axis stroke of 340 mm and 20 kg maximum payload. The YS-series robots feature an IP20 rating and offer superior performance in applications such as assembly, part kitting, small part handling, case packing, lab automation, and magnetic media and semiconductor processing. These robots easily integrate with existing robot applications to expand current automated processes. They are ideal for large, multi-process systems requiring pick-and-place capability. YS-series robots feature the same NXM100 controller that is used with Motoman's small six-axis robots (HP3M-series and HP6M-series).NXM100 Controller The compact Motoman NXM100 controller easily fits underneath conveyors or the controller cabinets can be stacked to provide floorspace savings. The high-performance NXM100 controller delivers all of the same features of the full-sized NX100 controller in a much smaller “mid-size” cabinet. The NXM100 provides patented multiple robot control capability (up to FOUR robots with one pendant), open communication, and integrated cell control. It has the ability to fit one optional external axis servo amplifier for seventh axis control. The NXM100 robot controller features a Windows® CE programming pendant with color touch screen; easy-to-use INFORM III programming language; a robust PC architecture; and built-in Ethernet. The NXM100 includes four levels of password protection. All operator controls are located on the pendant, allowing the control cabinet to be mounted remotely. The NXM100 controller also offers unmatched connectivity, highly flexible Fieldbus support, and easy connection to an information infrastructure through standard network options for DeviceNet, ControlNet, Profibus-DP, EtherNet/IP, and many others. Motoman YS-series 4-axis SCARA robots are ideal for high-speed handling and assembly systems; same controller as other Motoman robots allows easy integration FEATURES & OPTIONS n 20 kg payload n High-speed “pick-and-place” motion n Compact, mid-size NXM100 controller n Proven Yaskawa servo drives n MotoSim® EG simulation software (optional) n MotoSight 3D vision software (optional) NXM100 CONTROLLERSOLUTIONS IN MOTION®

Open the catalog to page 1
Motoman YS850L 4-Axis SCARA Robot - 2

Reach 850 mm (33.5") Environment Standard (IP20) S-Axis + L-Axis 850 mm Range S-Axis (1st horizontal arm) ±145° of Motion L-Axis (2nd horizontal arm) ±147° U-Axis (upper/lower) 340 mm R-Axis (rotate) ±360° Axis Combination T1 + T2 + Z + R Payload 5 kg (at max speed), 20 kg (at reduced speed) S-Axis 240 °/s Maximum L-Axis 337.5 °/s Speed U-Axis 1,100 mm/s R-Axis 1,428 °/s S-Axis + L-Axis ±0.025 mm Repeatability U-Axis ±0.01 mm R-Axis ±0.03° Max. Pressure 200 N (20.4 kgf) Allowable Moment of 0.02 kg • m2 (rated), 0.45 kg • m2 (max) Inertia Position Detection Absolute encoder Air Supply (2) 6...
