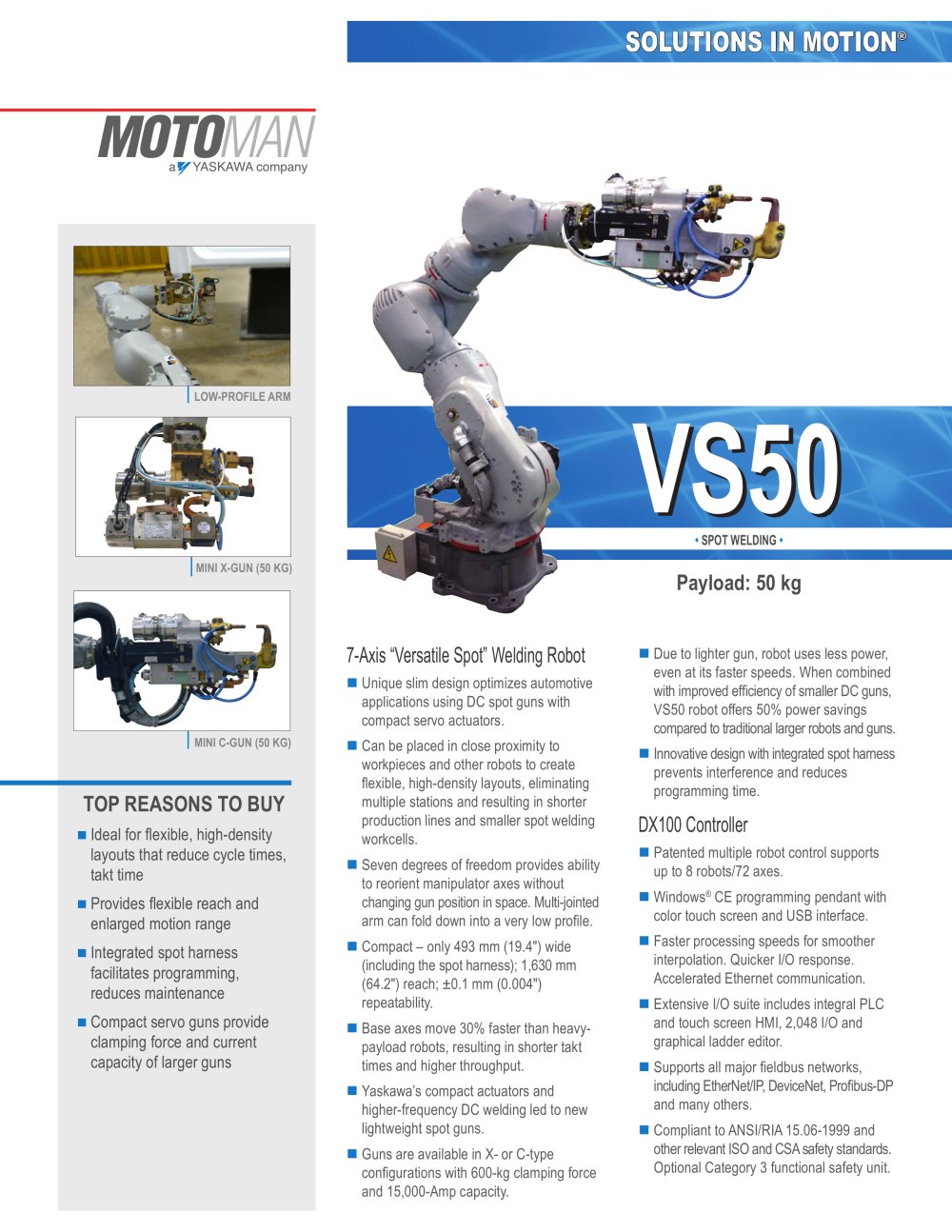

VS50 Payload: 50 kg n Due to lighter gun, robot uses less power, even at its faster speeds. When combined with improved efficiency of smaller DC guns, VS50 robot offers 50% power savings compared to traditional larger robots and guns. n Innovative design with integrated spot harness prevents interference and reduces programming time. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. • SPOT WELDING • 7-Axis “Versatile Spot” Welding Robot n Unique slim design optimizes automotive applications using DC spot guns with compact servo actuators. n Can be placed in close proximity to workpieces and other robots to create flexible, high-density layouts, eliminating multiple stations and resulting in shorter production lines and smaller spot welding workcells. n Seven degrees of freedom provides ability to reorient manipulator axes without changing gun position in space. Multi-jointed arm can fold down into a very low profile. n Compact – only 493 mm (19.4") wide (including the spot harness); 1,630 mm (64.2") reach; ±0.1 mm (0.004") repeatability. n Base axes move 30% faster than heavy-payload robots, resulting in shorter takt times and higher throughput. n Yaskawa’s compact actuators and higher-frequency DC welding led to new lightweight spot guns. n Guns are available in X- or C-type configurations with 600-kg clamping force and 15,000-Amp capacity. TOP REASONS TO BUY n Ideal for flexible, high-density layouts that reduce cycle times, takt time n Provides flexible reach and enlarged motion range n Integrated spot harness facilitates programming, reduces maintenance n Compact servo guns provide clamping force and current capacity of larger gunsSOLUTIONS IN MOTION® MINI X-GUN (50 KG) MINI C-GUN (50 KG) LOW-PROFILE ARM

Open the catalog to page 1

Motoman VS50 "Versatile Spot" Welding Robot - 2

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-410-a ©2009 MOTOMAN INC. november 2009 Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements.VS50 Robotot Structure Vertical articulated type Controlled Axes 7 Payload 50 kg (110.3...
