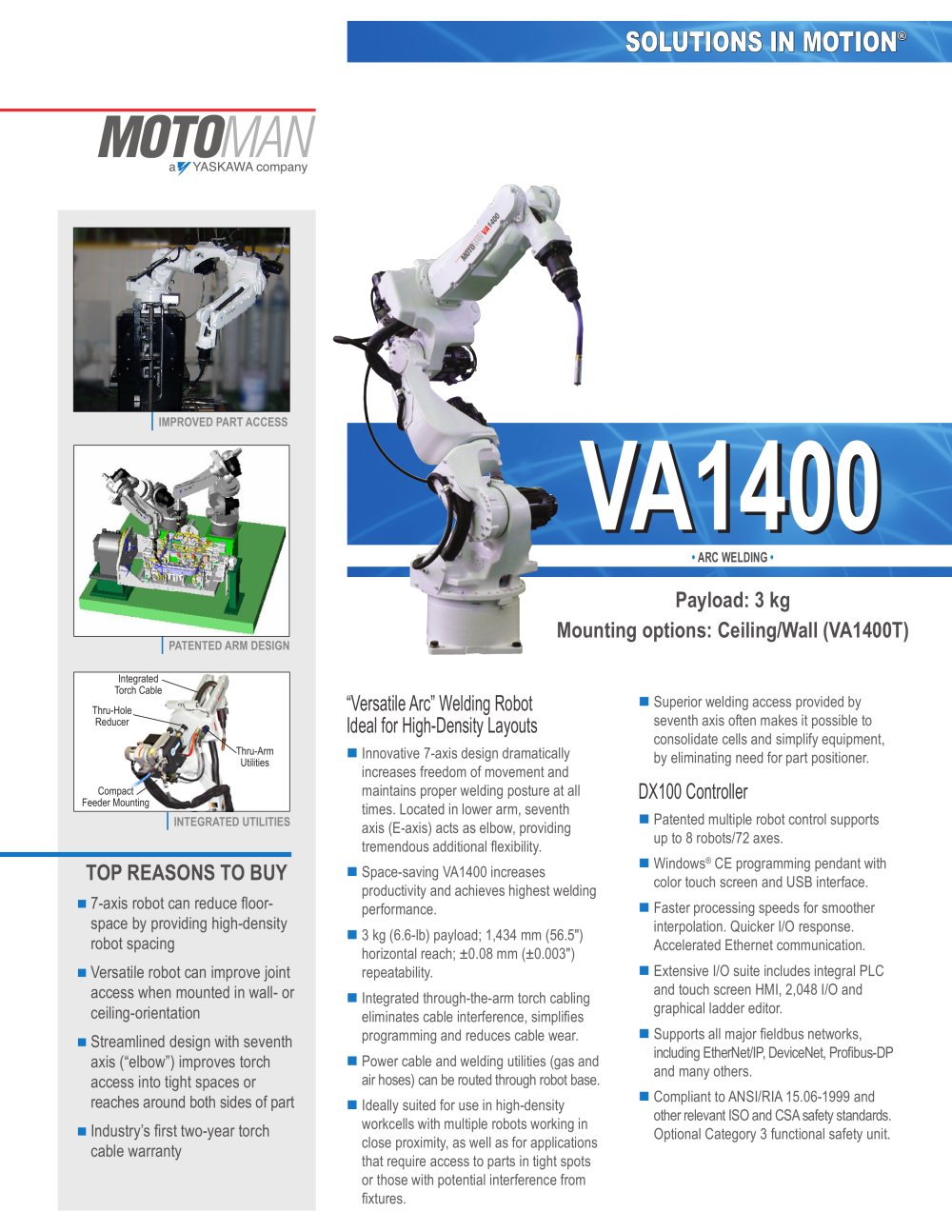

IMPROVED PART ACCESS PATENTED ARM DESIGN INTEGRATED UTILITIES Integrated Torch Cable Thru-Hole Reducer Thru-Arm Utilities Compact Feeder Mounting VA1400 Payload: 3 kg Mounting options: Ceiling/Wall (VA1400T) n Superior welding access provided by seventh axis often makes it possible to consolidate cells and simplify equipment, by eliminating need for part positioner. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. • ARC WELDING • “Versatile Arc” Welding Robot Ideal for High-Density Layouts n Innovative 7-axis design dramatically increases freedom of movement and maintains proper welding posture at all times. Located in lower arm, seventh axis (E-axis) acts as elbow, providing tremendous additional flexibility. n Space-saving VA1400 increases productivity and achieves highest welding performance. n 3 kg (6.6-lb) payload; 1,434 mm (56.5") horizontal reach; ±0.08 mm (±0.003") repeatability. n Integrated through-the-arm torch cabling eliminates cable interference, simplifies programming and reduces cable wear. n Power cable and welding utilities (gas and air hoses) can be routed through robot base. n Ideally suited for use in high-density workcells with multiple robots working in close proximity, as well as for applications that require access to parts in tight spots or those with potential interference from fixtures. TOP REASONS TO BUY n 7-axis robot can reduce floorspace by providing high-density robot spacing n Versatile robot can improve joint access when mounted in wall- or ceiling-orientation n Streamlined design with seventh axis (“elbow”) improves torch access into tight spaces or reaches around both sides of part n Industry’s first two-year torch cable warrantySOLUTIONS IN MOTION®

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-398-A ©2009 MOTOMAN INC. november 2009 Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements.VA1400 Robotot Structure Vertical articulated type Controlled Axes 7 Payload 3 kg (6.6 lb)...
