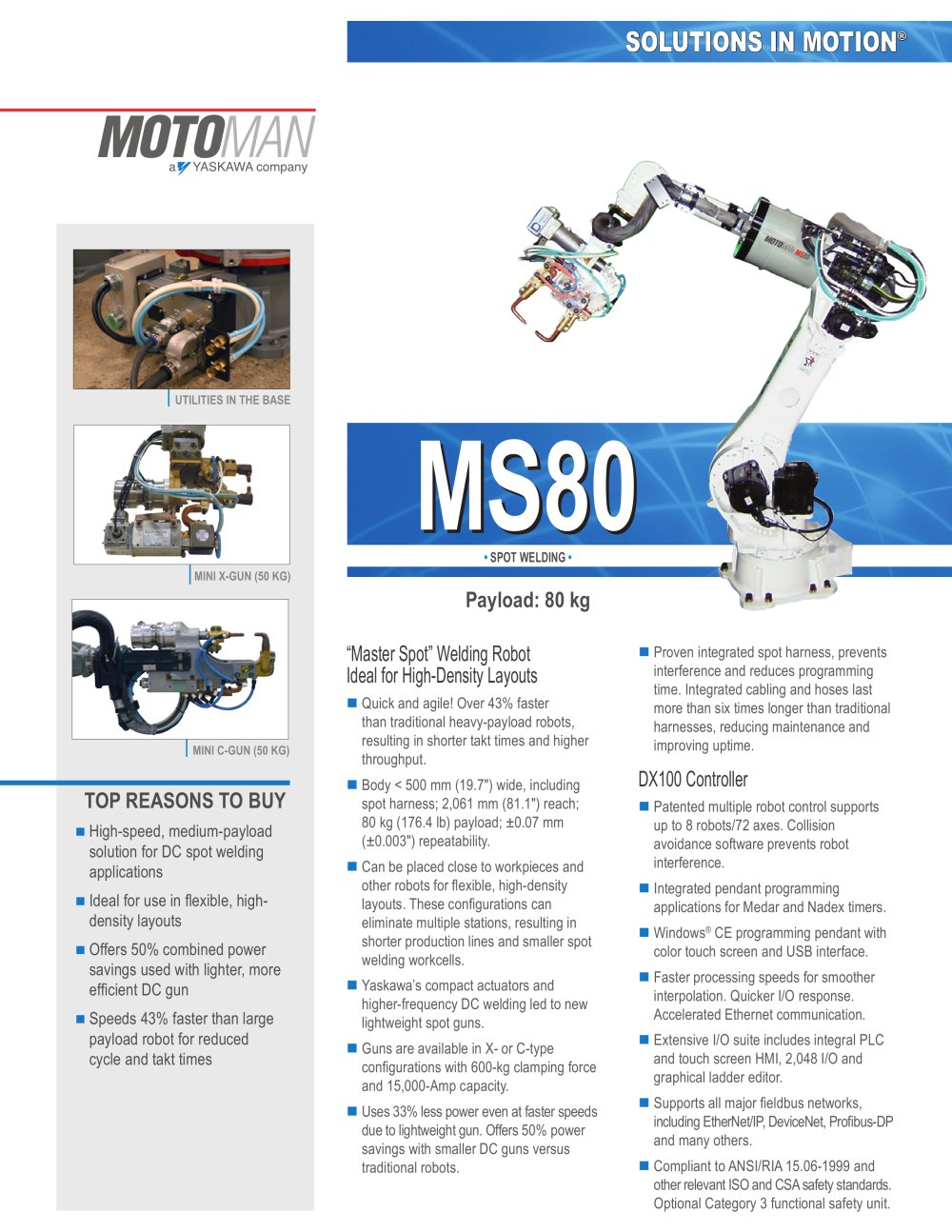

MS80 Payload: 80 kg n Proven integrated spot harness, prevents interference and reduces programming time. Integrated cabling and hoses last more than six times longer than traditional harnesses, reducing maintenance and improving uptime. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. Collision avoidance software prevents robot interference. n Integrated pendant programming applications for Medar and Nadex timers. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. UTILITIES IN THE BASE • Spot Welding • “Master Spot” Welding Robot Ideal for High-Density Layouts n Quick and agile! Over 43% faster than traditional heavy-payload robots, resulting in shorter takt times and higher throughput. n Body < 500 mm (19.7") wide, including spot harness; 2,061 mm (81.1") reach; 80 kg (176.4 lb) payload; ±0.07 mm (±0.003") repeatability. n Can be placed close to workpieces and other robots for flexible, high-density layouts. These configurations can eliminate multiple stations, resulting in shorter production lines and smaller spot welding workcells. n Yaskawa’s compact actuators and higher-frequency DC welding led to new lightweight spot guns. n Guns are available in X- or C-type configurations with 600-kg clamping force and 15,000-Amp capacity. n Uses 33% less power even at faster speeds due to lightweight gun. Offers 50% power savings with smaller DC guns versus traditional robots. TOP REASONS TO BUY n High-speed, medium-payload solution for DC spot welding applications n Ideal for use in flexible, high-density layouts n Offers 50% combined power savings used with lighter, more efficient DC gun n Speeds 43% faster than large payload robot for reduced cycle and takt timesSOLUTIONS IN MOTION® MINI X-GUN (50 KG) MINI C-GUN (50 KG)

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-397-C ©2010 MOTOMAN INC. January 2010 Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements.MS80 Robotot Structure Vertical articulated type Controlled Axes 6 Payload 80 kg (176.4 lbs)...
