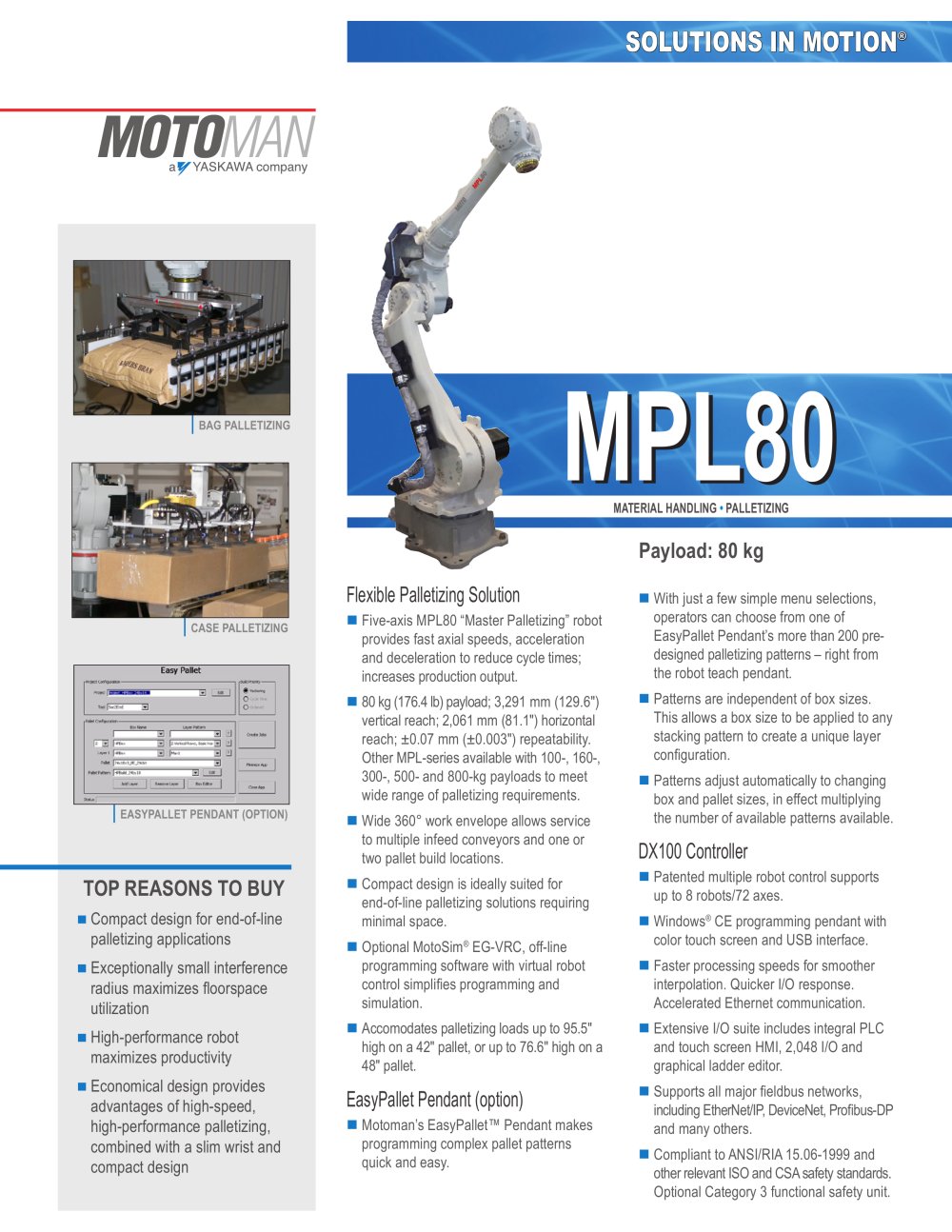

EASYPALLET PENDANT (OPTION) BAG PALLETIZING MPL80 Payload: 80 kg n With just a few simple menu selections, operators can choose from one of EasyPallet Pendant’s more than 200 pre-designed palletizing patterns – right from the robot teach pendant. n Patterns are independent of box sizes. This allows a box size to be applied to any stacking pattern to create a unique layer configuration. n Patterns adjust automatically to changing box and pallet sizes, in effect multiplying the number of available patterns available. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Mateaterial handling • Palletizing Flexible Palletizing Solution n Five-axis MPL80 “Master Palletizing” robot provides fast axial speeds, acceleration and deceleration to reduce cycle times; increases production output. n 80 kg (176.4 lb) payload; 3,291 mm (129.6") vertical reach; 2,061 mm (81.1") horizontal reach; ±0.07 mm (±0.003") repeatability. Other MPL-series available with 100-, 160-, 300-, 500- and 800-kg payloads to meet wide range of palletizing requirements. n Wide 360° work envelope allows service to multiple infeed conveyors and one or two pallet build locations. n Compact design is ideally suited for end-of-line palletizing solutions requiring minimal space. n Optional MotoSim® EG-VRC, off-line programming software with virtual robot control simplifies programming and simulation. n Accomodates palletizing loads up to 95.5" high on a 42" pallet, or up to 76.6" high on a 48" pallet. EasyPallet Pendant (option) n Motoman’s EasyPallet™ Pendant makes programming complex pallet patterns quick and easy. TOP REASONS TO BUY n Compact design for end-of-line palletizing applications n Exceptionally small interference radius maximizes floorspace utilization n High-performance robot maximizes productivity n Economical design provides advantages of high-speed, high-performance palletizing, combined with a slim wrist and compact designSOLUTIONS IN MOTION® CASE PALLETIZING

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-437-A ©2010 MOTOMAN INC. JANUARY 2010 Motoman otoman CORPORATE HEADQUARTERS 805 Liberty iberty iberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of microsoft indows is a registered trademark of microsoft indows is a registered trademark of microsoft indows is a registered trademark of microsoft indows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. All dimensions are metric...
