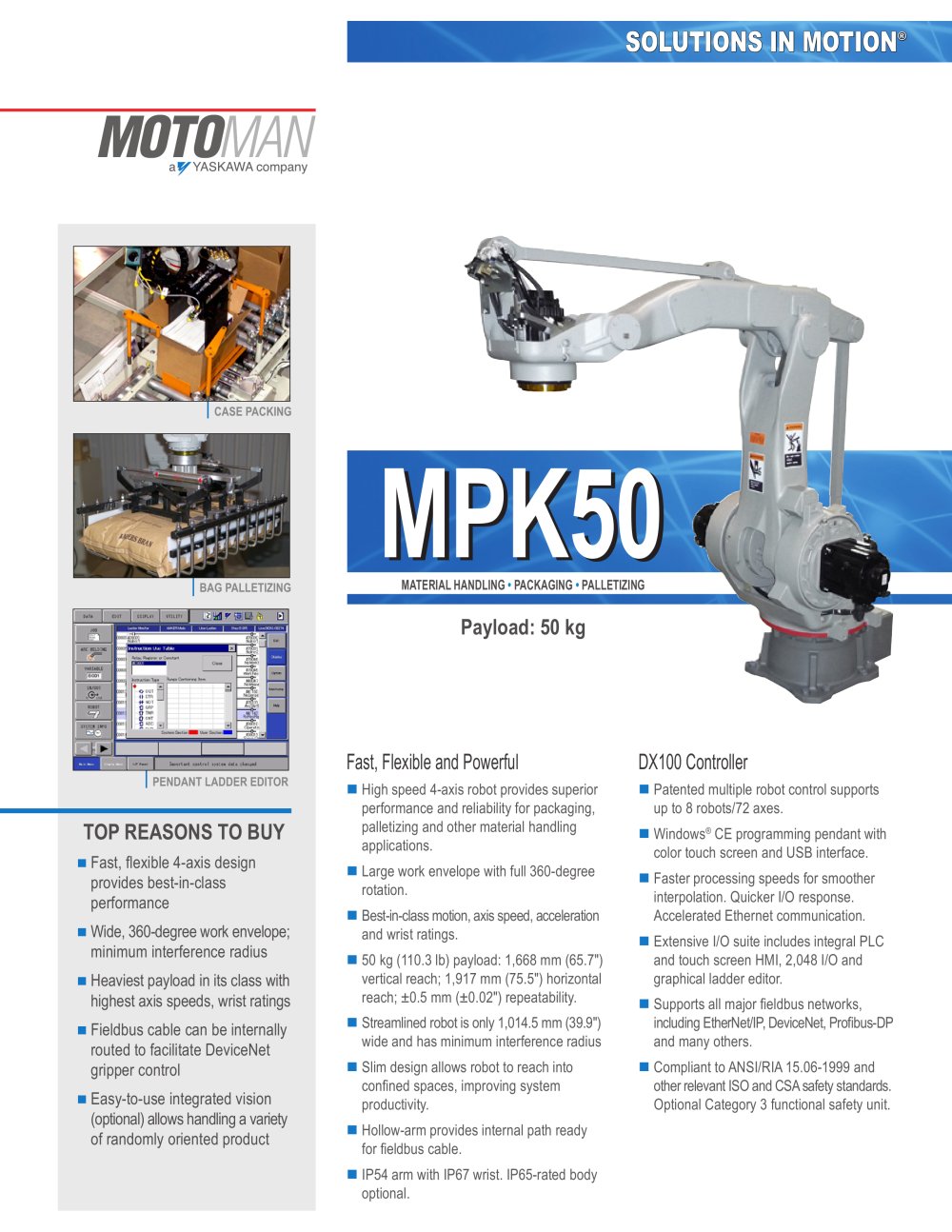

BAG PALLETIZING CASE PACKING MPK50 Payload: 50 kg DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Mateaterial Handling • Packaging • Palletizing Fast, Flexible and Powerful n High speed 4-axis robot provides superior performance and reliability for packaging, palletizing and other material handling applications. n Large work envelope with full 360-degree rotation. n Best-in-class motion, axis speed, acceleration and wrist ratings. n 50 kg (110.3 lb) payload: 1,668 mm (65.7") vertical reach; 1,917 mm (75.5") horizontal reach; ±0.5 mm (±0.02") repeatability. n Streamlined robot is only 1,014.5 mm (39.9") wide and has minimum interference radius n Slim design allows robot to reach into confined spaces, improving system productivity. n Hollow-arm provides internal path ready for fieldbus cable. n IP54 arm with IP67 wrist. IP65-rated body optional. TOP REASONS TO BUY n Fast, flexible 4-axis design provides best-in-class performance n Wide, 360-degree work envelope; minimum interference radius n Heaviest payload in its class with highest axis speeds, wrist ratings n Fieldbus cable can be internally routed to facilitate DeviceNet gripper control n Easy-to-use integrated vision (optional) allows handling a variety of randomly oriented product SOLUTIONS IN MOTION® PENDANT LADDER EDITOR

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-417-A ©2009 MOTOMAN INC. NOVEMBER 2009 Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements.MPK50 Robotot www.motoman.com Structure Vertical articulated type Controlled Axes 4 Payload...
