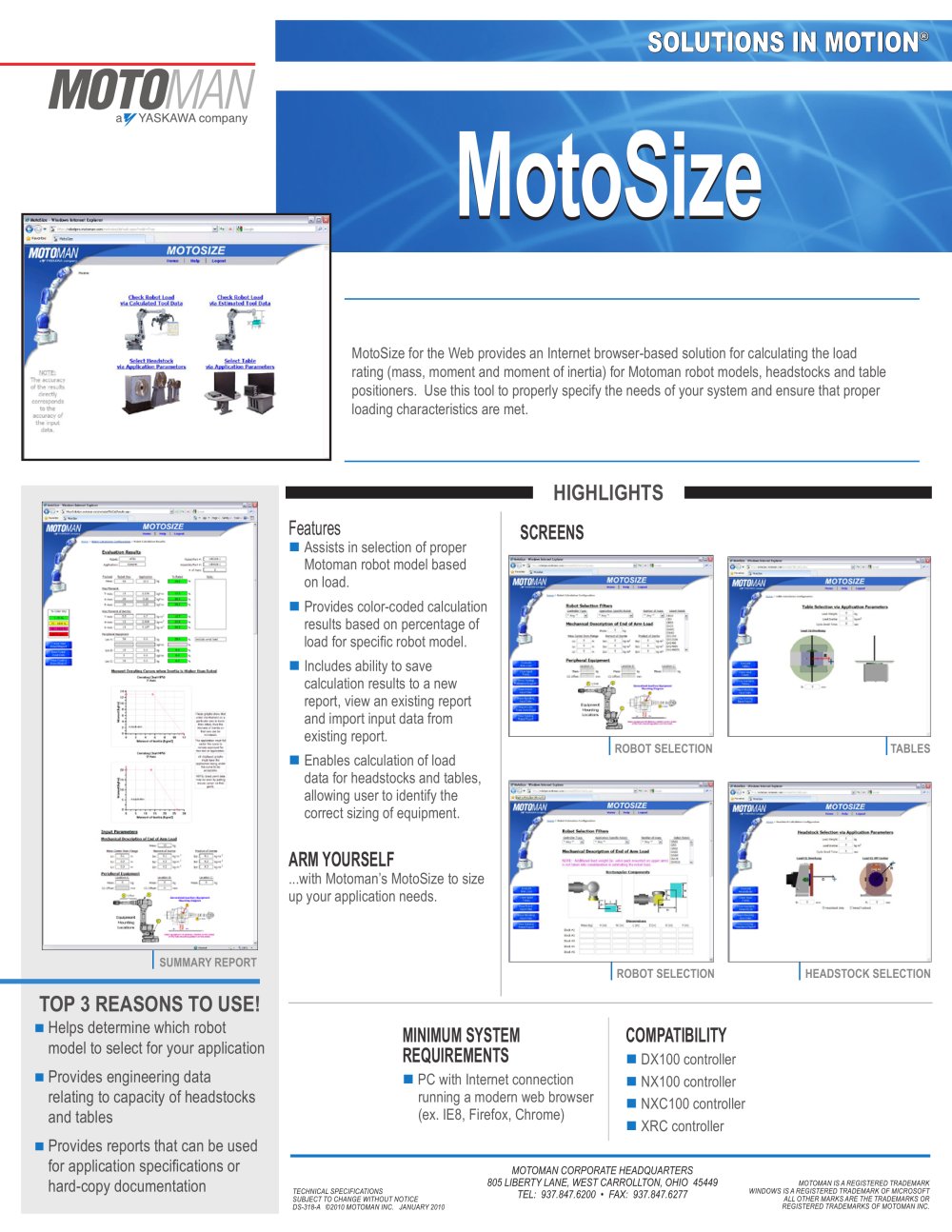

Summary Report M otoSize R obot selection MINIMUM SYSTEM REQUIREMENTS n PC with Internet connection running a modern web browser (ex. IE8, Firefox, Chrome) MotoSize for the Web provides an Internet browser-based solution for calculating the load rating (mass, moment and moment of inertia) for Motoman robot models, headstocks and table positioners. Use this tool to properly specify the needs of your system and ensure that proper loading characteristics are met. Features n Assists in selection of proper Motoman robot model based on load. n Provides color-coded calculation results based on percentage of load for specific robot model. n Includes ability to save calculation results to a new report, view an existing report and import input data from existing report. n Enables calculation of load data for headstocks and tables, allowing user to identify the correct sizing of equipment. A rm Yourself ...with Motoman’s MotoSize to size up your application needs. Motoman CORPORATATE HEADQUARTERS 805 Liberty Lane, WEST CARROLLTONTON, OHIO 45449 Tel : 937.847.6200 • FAX: 937.847.6277 T ECHNICAL SPECIFICATIONATIONS SUBJECT TOTO CHANGE WITHOUT NOTICE DS-318-A ©2010 MOTOOTOMAN INC. january 2010 MOTOOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of Microsoft A LL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOOTOMAN INC. SCREENS TOPTOP 3 REA SONS TOTO USE! n Helps determine which robot model to select for your application n Provides engineering data relating to capacity of headstocks and tables n Provides reports that can be used for application specifications or hard-copy documentation COMPATIBILITYCOMPATIBILITYCOMPATIBILITY n DX100 controller n NX100 controller n NXC100 controller n XRC controller R obot selection T ables Headstock selectionSOLUTIONS IN MOTION® HIGHLIGHTS
