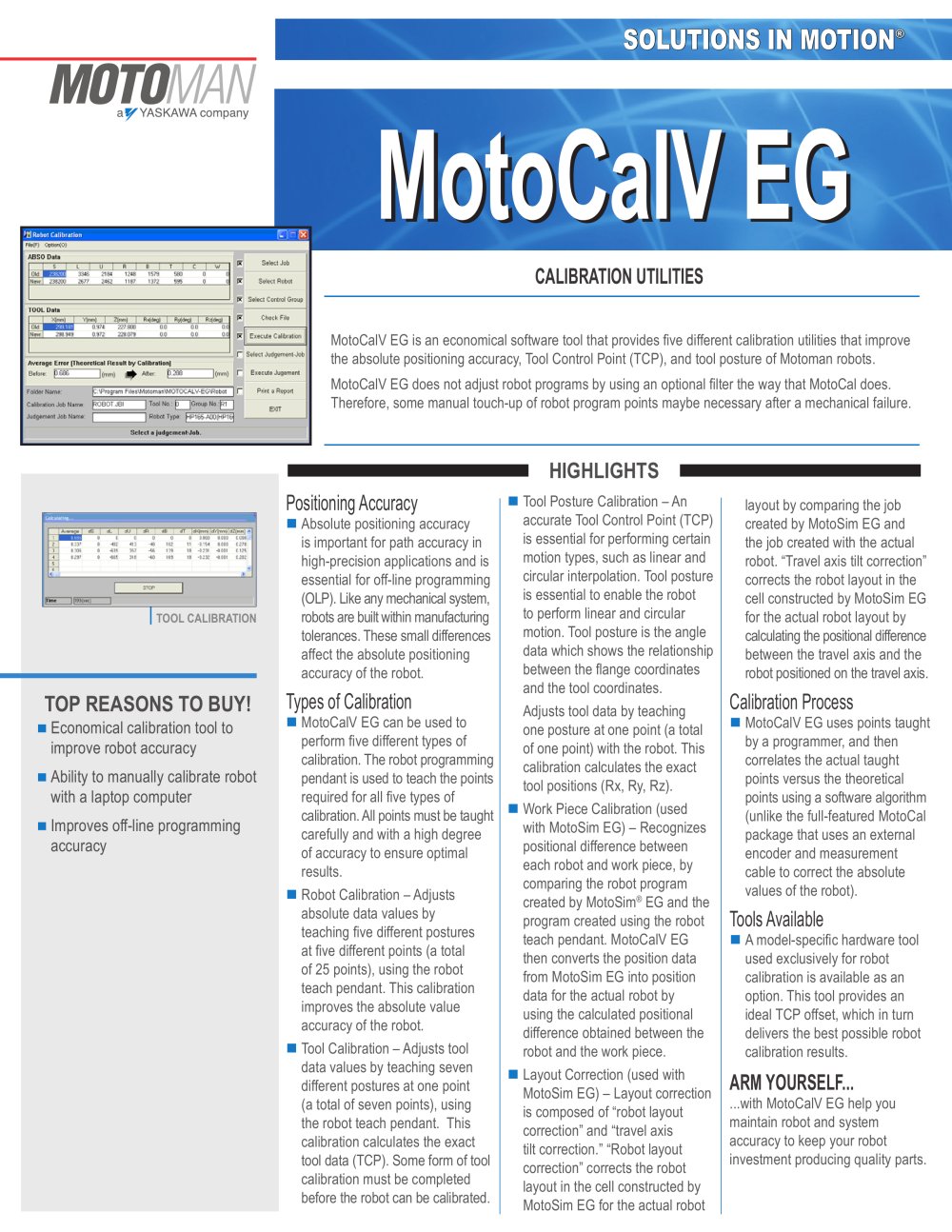

Motoman MotoCalv EG Software - 1

Work Piece Calibration (used with MotoSim EG) Recognizes positional difference between each robot and work piece, by comparing the robot program created by MotoSim Tool Posture Calibration ֖ An accurate Tool Control Point (TCP) is essential for performing certain motion types, such as linear and circular interpolation. Tool posture is essential to enable the robot to perform linear and circular motion. Tool posture is the angle data which shows the relationship between the flange coordinates and the tool coordinates. Adjusts tool data by teaching one posture at one point (a total of one point) with the robot. This calibration calculates the exact tool positions (Rx, Ry, Rz). > MotoCalV EG is an economical software tool that provides five different calibration utilities that improve the absolute positioning accuracy, Tool Control Point (TCP), and tool posture of Motoman robots. MotoCalV EG does not adjust robot programs by using an optional filter the way that MotoCal does. Therefore, some manual touch-up of robot program points maybe necessary after a mechanical failure. > Absolute positioning accuracy is important for path accuracy in high-precision applications and is essential for off-line programming (OLP). Like any mechanical system, robots are built within manufacturing tolerances. These small differences affect the absolute positioning accuracy of the robot. Tool Calibration Ζ Adjusts tool data values by teaching seven different postures at one point (a total of seven points), using the robot teach pendant. This calibration calculates the exact tool data (TCP). Some form of tool calibration must be completed before the robot can be calibrated. > TOOL CALIBRATION Robot Calibration Adjusts absolute data values by teaching five different postures at five different points (a total of 25 points), using the robot teach pendant. This calibration improves the absolute value accuracy of the robot. > MotoCalV EG can be used to perform five different types of calibration. The robot programming pendant is used to teach the points required for all five types of calibration. All points must be taught carefully and with a high degree of accuracy to ensure optimal results. MotoCalV EG uses points taught by a programmer, and then correlates the actual taught points versus the theoretical points using a software algorithm (unlike the full-featured MotoCal package that uses an external encoder and measurement cable to correct the absolute values of the robot). > Layout Correction (used with MotoSim EG) ֖ Layout correction is composed of robot layout correctionӔ and travel axis tilt correction.Ӕ Robot layout correctionӔ corrects the robot layout in the cell constructed by MotoSim EG for the actual robot layout by comparing the job created by MotoSim EG and the job created with the actual robot. Travel axis tilt correctionӔ corrects the robot layout in the cell constructed by MotoSim EG for the actual robot layout by calculating the positional difference between the travel axis and the robot positioned on the travel axis. > EG and the program created using the robot teach pendant. MotoCalV EG then converts the position data from MotoSim EG into position data for the actual robot by using the calculated positional difference obtained between the robot and the work piece. > A model-specific hardware tool used exclusively for robot calibration is available as an option. This tool provides an ideal TCP offset, which in turn delivers the best possible robot calibration results. > ...with MotoCalV EG help you maintain robot and system accuracy to keep your robot investment producing quality parts. >

Open the catalog to page 1
Motoman MotoCalv EG Software - 2

JUDGEMENT JOB LAYOUT CALIBRATION DX100 controller Windows XP NX100 controller 512 MB Ram XRC controller 2 GHz processor speed MRC controller 1 GB free hard drive space ERC controller > MOTOMAN CORPORATE HEADQUARTERS805 LIBERTY LANE, WEST CARROLLTON, OHIO 45449TEL: 937.847.6200 FAX: 937.847.6277 TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-315-A թ2009 MOTOMAN INC. MAY 2009MOTOMAN IS A REGISTERED TRADEMARK WINDOWS IS A REGISTERED TRADEMARK OF MICROSOFTALL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOMAN INC. size="-3">

Open the catalog to page 2
