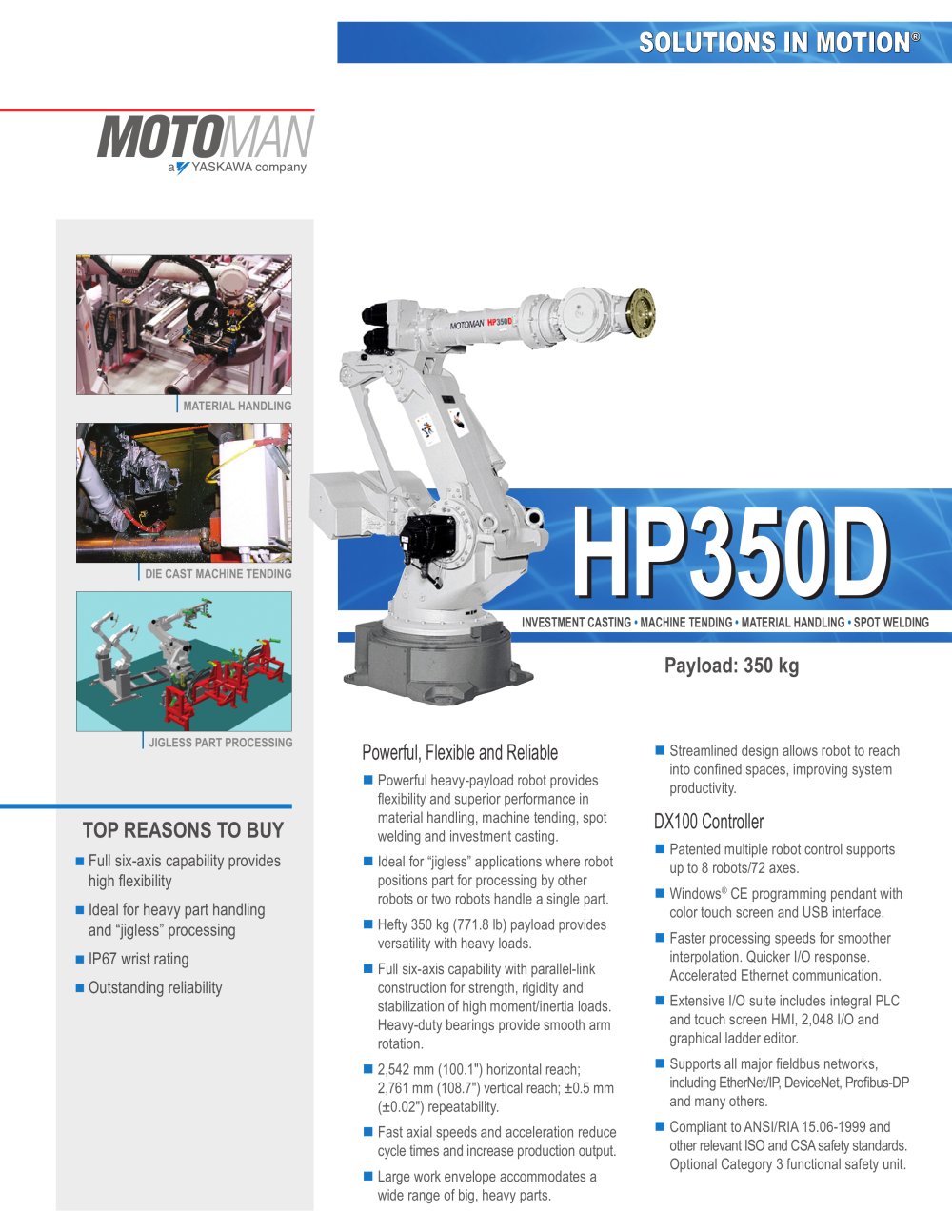

HP350D Payload: 350 kg Investment casting • Machine Tending • MATEMATERIAL handling • spot weldingSOLUTIONS IN MOTION® TOTO P REASONS TOTO BUY n Full six-axis capability provides high flexibility n Ideal for heavy part handling and “jigless” processing n IP67 wrist rating n Outstanding reliability n Streamlined design allows robot to reach into confined spaces, improving system productivity. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Powerful, Flexible and Reliable n Powerful heavy-payload robot provides flexibility and superior performance in material handling, machine tending, spot welding and investment casting. n Ideal for “jigless” applications where robot positions part for processing by other robots or two robots handle a single part. n Hefty 350 kg (771.8 lb) payload provides versatility with heavy loads. n Full six-axis capability with parallel-link construction for strength, rigidity and stabilization of high moment/inertia loads. Heavy-duty bearings provide smooth arm rotation. n 2,542 mm (100.1") horizontal reach; 2,761 mm (108.7") vertical reach; ±0.5 mm (±0.02") repeatability. n Fast axial speeds and acceleration reduce cycle times and increase production output. n Large work envelope accommodates a wide range of big, heavy parts. DIE CAST MACHINE TENDING MATEMATE RI A L HANDLING JIGLESS PART PROCESSING

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-425-A ©2009 MOTOMAN INC. NOVEMBER 2009 MOTOMAN IS A REGISTERED TRADEMARK windows is a registered trademark of microsoft corporationcorporation ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements. Dimensions (mm) 800 (w) x 1,000 (h) x 650 (d) (31.5" x 39.4" x 25.6")...
