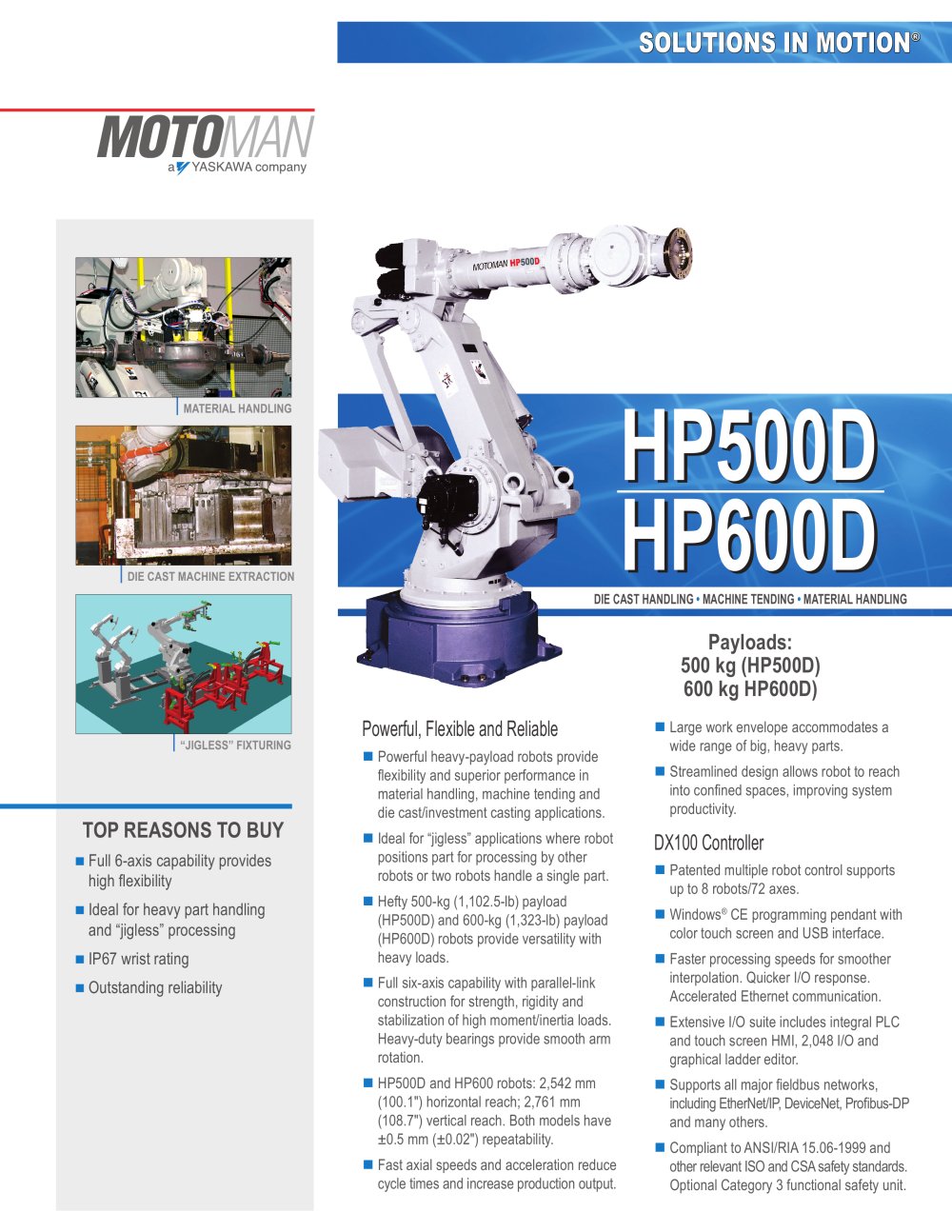

HP600D HP500D Die cast handling • MAchine tending • MATEATERIAL handlingSOLUTIONS IN MOTION® T OP REASONS TO BUY n Full 6-axis capability provides high flexibility n Ideal for heavy part handling and “jigless” processing n IP67 wrist rating n Outstanding reliability n Large work envelope accommodates a wide range of big, heavy parts. n Streamlined design allows robot to reach into confined spaces, improving system productivity. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Powerful, Flexible and Reliable n Powerful heavy-payload robots provide flexibility and superior performance in material handling, machine tending and die cast/investment casting applications. n Ideal for “jigless” applications where robot positions part for processing by other robots or two robots handle a single part. n Hefty 500-kg (1,102.5-lb) payload (HP500D) and 600-kg (1,323-lb) payload (HP600D) robots provide versatility with heavy loads. n Full six-axis capability with parallel-link construction for strength, rigidity and stabilization of high moment/inertia loads. Heavy-duty bearings provide smooth arm rotation. n HP500D and HP600 robots: 2,542 mm (100.1") horizontal reach; 2,761 mm (108.7") vertical reach. Both models have ±0.5 mm (±0.02") repeatability. n Fast axial speeds and acceleration reduce cycle times and increase production output. DIE CAST MACHINE EXTRACTION MATEATERIAL HANDLING “JIGLESS” FIXTURING Payloads: 500 kg (HP500D) 600 kg HP600D)

Open the catalog to page 1

Motoman "High Performance" HP500D/HP600D Robots - 2

TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-426-B ©2009 MOTOMAN INC. NOVEMBER 2009 MOTOMAN IS A REGISTERED TRADEMARK windows is a registered trademark of microsoft corporationcorporation ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. Motomanotoman CORPORATE HEADQUARTERS 805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 HP500D robot shown. All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements. Dimensions (mm) 800 (w) x 1,000 (h) x 650...
