Motoman G-Code Converter EG
2Pages

{{requestButtons}}

Catalog excerpts

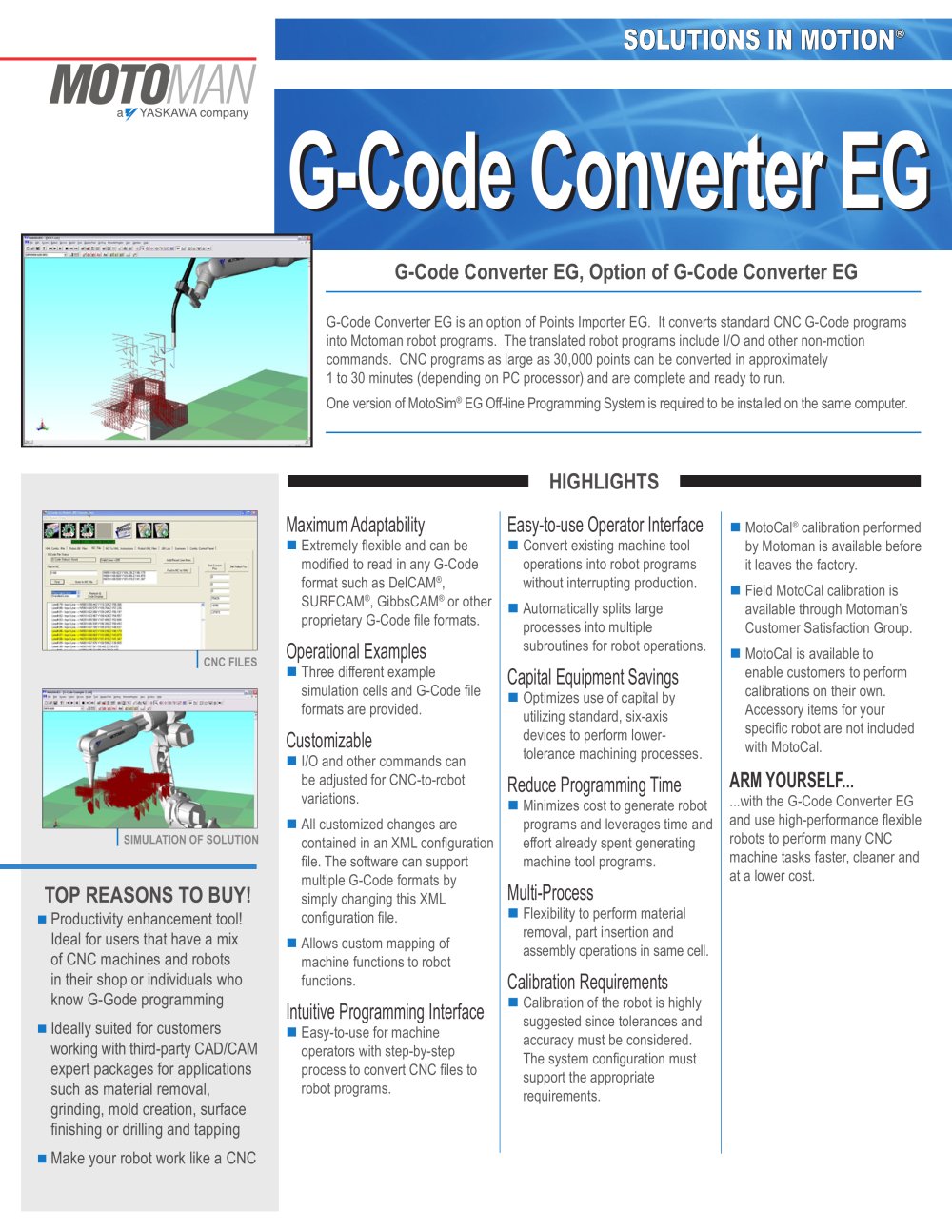

Motoman G-Code Converter EG - 1

G-Code Converter EG is an option of Points Importer EG. It converts standard CNC G-Code programs into Motoman robot programs. The translated robot programs include I/O and other non-motion commands. CNC programs as large as 30,000 points can be converted in approximately 1 to 30 minutes (depending on PC processor) and are complete and ready to run. One version of MotoSim MotoCal > ή EG Off-line Programming System is required to be installed on the same computer. > calibration performed by Motoman is available before it leaves the factory. Extremely flexible and can be modified to read in any G-Code format such as DelCAM Convert existing machine tool operations into robot programs without interrupting production. Field MotoCal calibration is available through MotomanΒs Customer Satisfaction Group. > , SURFCAM Automatically splits large processes into multiple subroutines for robot operations. MotoCal is available to enable customers to perform calibrations on their own. Accessory items for your specific robot are not included with MotoCal. > ή , GibbsCAM > or other proprietary G-Code file formats. > CNC FILES Three different example simulation cells and G-Code file formats are provided. > Optimizes use of capital by utilizing standard, six-axis devices to perform lower- tolerance machining processes. > I/O and other commands can be adjusted for CNC-to-robot variations. Allows custom mapping of machine functions to robot functions. All customized changes are contained in an XML configuration file. The software can support multiple G-Code formats by simply changing this XML configuration file. > Minimizes cost to generate robot programs and leverages time and effort already spent generating machine tool programs. ...with the G-Code Converter EG and use high-performance flexible robots to perform many CNC machine tasks faster, cleaner and at a lower cost. > SIMULATION OF SOLUTION Flexibility to perform material removal, part insertion and assembly operations in same cell. > Calibration of the robot is highly suggested since tolerances and accuracy must be considered. The system configuration must support the appropriate requirements. Easy-to-use for machine operators with step-by-step process to convert CNC files to robot programs. >

Open the catalog to page 1
Motoman G-Code Converter EG - 2

G-CODE CONVERTER IS LAUNCHED FROM THE POINTS IMPORTER MENU. THE CONFIGURATION FILE IS LOADED. G-CODE VIEWER ALLOWS USERS TO FIND DATA QUICKLY. G-CODE CAN CREATE STATUS REPORTS THAT SHOW INPUT, OUTPUT AND INTERMEDIATE FILES AND ASSOCIATED ERRORS. Windows XP DX100 controller 2 GHz processor 1 GB RAM NX100 controller 2+ open USB ports for USB keys 3 GHz processor XRC controller PCMCIA slot Third-Party CAD/CAM system MotoSim EG: 2.01 or greater XML file editing capability > (Currently not supported by MotoSim EG-VRC) Dual monitors Points Importer EG > MOTOMAN CORPORATE HEADQUARTERS805 LIBERTY...

Open the catalog to page 2
