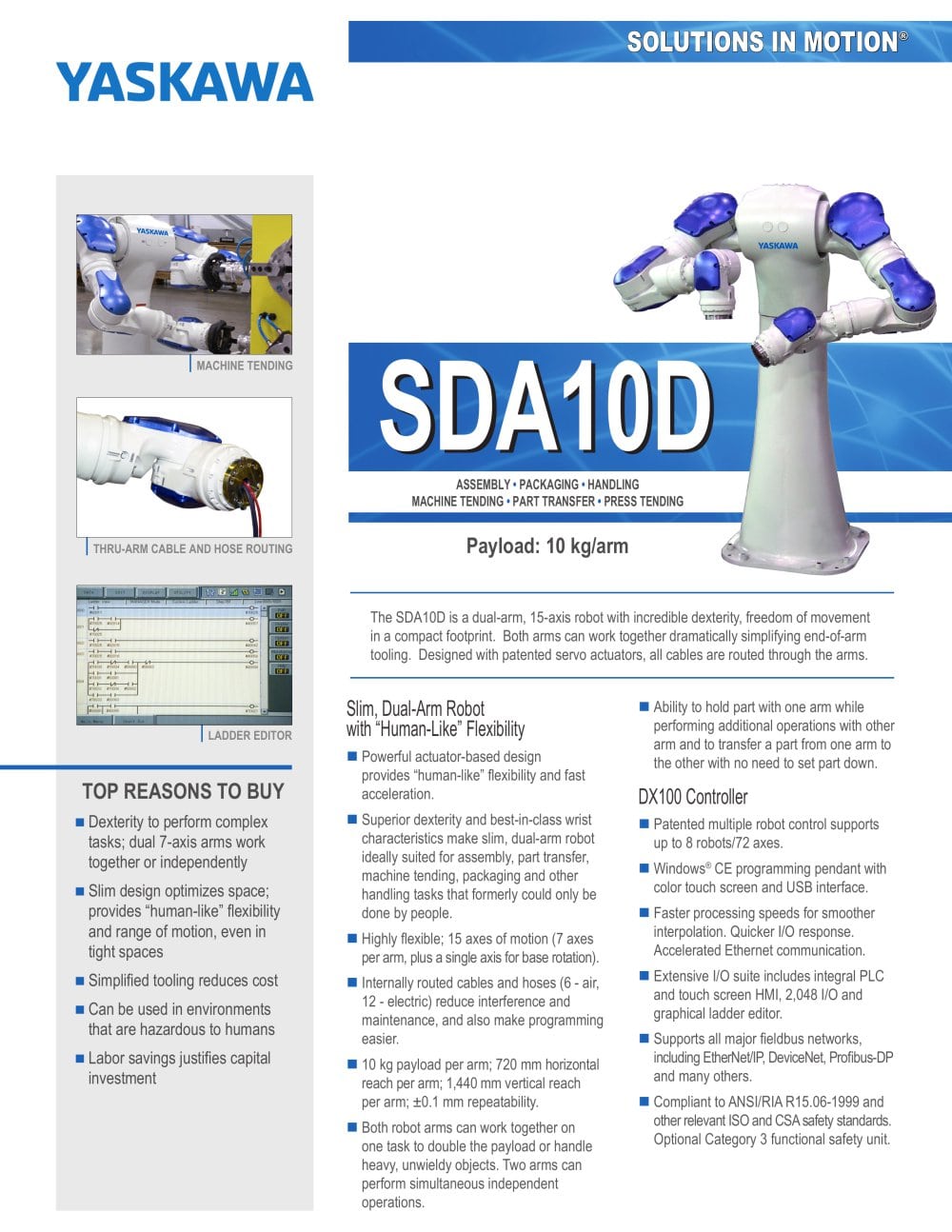

SOLUTIONS IN MOTION® LADDER EDITOR TOP REASONS TO BUY n Dexterity to perform complex tasks; dual 7-axis arms work together or independently n Slim design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces n Simplified tooling reduces cost n Can be used in environments that are hazardous to humans n Labor savings justifies capital investment ASSEMBLY • PACKAGING • HANDLING • MACHINE TENDING • PART TRANSFER THRU-ARM CABLE AND HOSE ROUTING MACHINE TENDING Payload: 10 kg/arm n Ability to hold part with one arm while performing operations on it with other arm. Can transfer a part from one arm to the other with no need to set part down. DX100 Controller n Patented multiple robot control supports up to 8 robots/72 axes. n Windows® CE programming pendant with color touch screen and USB interface. n Faster processing speeds for smoother interpolation. Quicker I/O response. Accelerated Ethernet communication. n Extensive I/O suite includes integral PLC and touch screen HMI, 2,048 I/O and graphical ladder editor. n Supports all major fieldbus networks, including EtherNet/IP, DeviceNet, Profibus-DP and many others. n Compliant to ANSI/RIA 15.06-1999 and other relevant ISO and CSA safety standards. Optional Category 3 functional safety unit. Slim, Dual-Arm Robot with “Human-Like” Flexibility n Powerful actuator-based design provides “human-like” flexibility and fast acceleration. n Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people. n Highly flexible; 15 axes of motion (7 axes per arm, plus a single axis for base rotation). n Internally routed cables and hoses (6 - air, 12 - electric) reduce interference and maintenance, and also make programming easier. n 10 kg (22.1 lb) payload per arm; 720 mm (28.3") horizontal reach per arm; 1,440 mm (56.7") vertical reach per arm; ±0.1 mm (0.004") repeatability. n Both robot arms can work together on one task to double the payload or handle heavy, unwieldy objects. Two manipulators can perform simultaneous independent operations. SDA10D
Open the catalog to page 1MOTOMAN IS A REGISTERED TRADEMARK windows is a registered trademark of microsoft ALL other MARKS ARE THE TRADEMARKS AND REGISTERED TRADEMARKS OF MOTOMAN INC. Motomanotoman CORPORATE HEADQUARTERS 805 Liberterty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 All dimensions are metric (mm) and for reference only. Please request detail drawings for all design/engineering requirements. R2R1R2-SIDE CONNECTORAIR-1AIR-2AIR-3AIR-4AIR-5AIR-6S3S2S11BC2BC3BC4BCBAT1BAT2S3AIR-5AIR-6EVIEW CABVIEW AVIEW BVIEW DVIEW...
