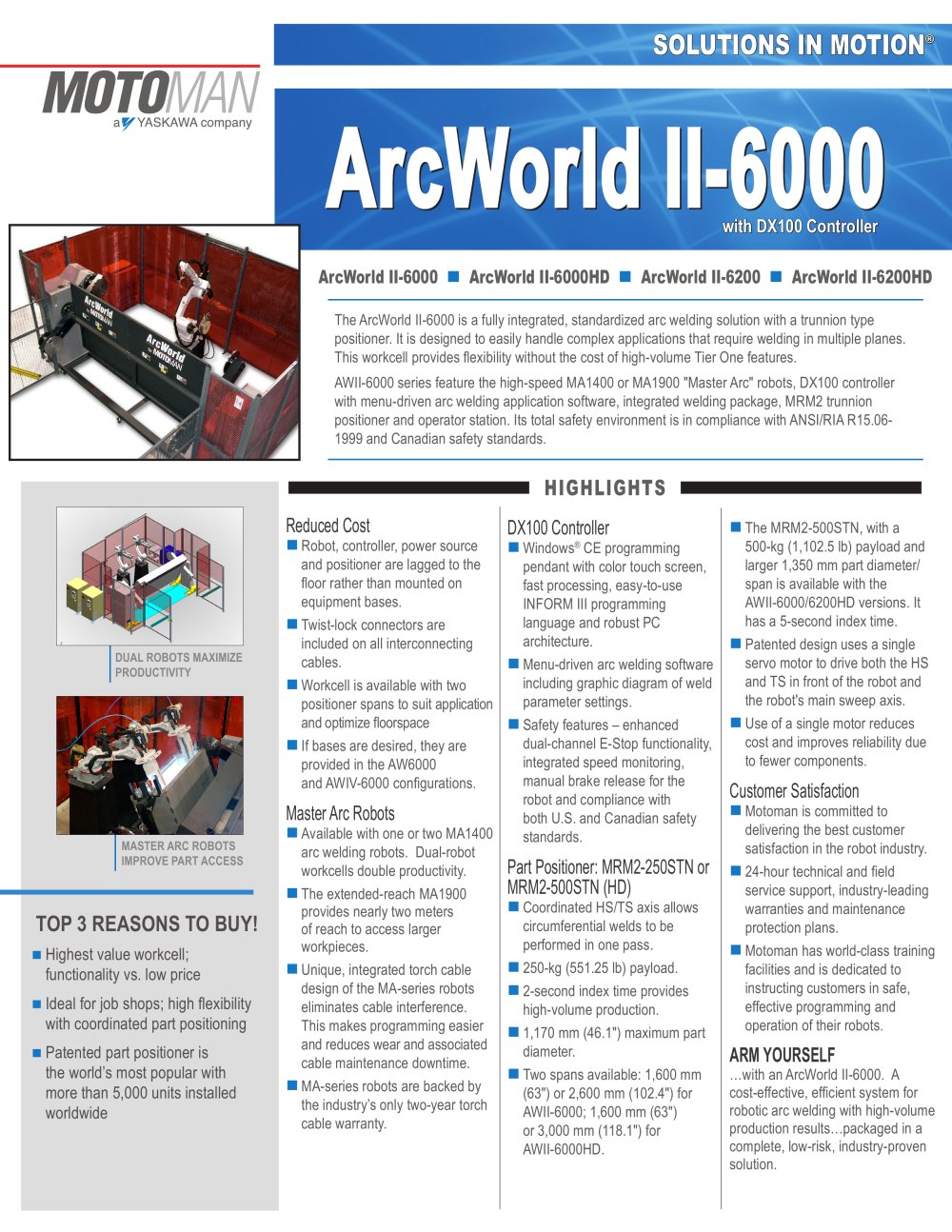

ArcWorld 6000ArcWorld II-6000SOLUTIONS IN MOTION® ArcWorld II-6000 n ArcWorld II-6000HD n ArcWorld II-6200 n ArcWorld II-6200HD The ArcWorld II-6000 is a fully integrated, standardized arc welding solution with a trunnion type positioner. It is designed to easily handle complex applications that require welding in multiple planes. This workcell provides flexibility without the cost of high-volume Tier One features. AWII-6000 series feature the high-speed MA1400 or MA1900 "Master Arc" robots, DX100 controller with menu-driven arc welding application software, integrated welding package, MRM2 trunnion positioner and operator station. Its total safety environment is in compliance with ANSI/RIA R15.06-1999 and Canadian safety standards. Reduced Cost n Robot, controller, power source and positioner are lagged to the floor rather than mounted on equipment bases. n Twist-lock connectors are included on all interconnecting cables. n Workcell is available with two positioner spans to suit application and optimize floorspace n If bases are desired, they are provided in the AW6000 and AWIV-6000 configurations. Master Arc Robots n Available with one or two MA1400 arc welding robots. Dual-robot workcells double productivity. n The extended-reach MA1900 provides nearly two meters of reach to access larger workpieces. n Unique, integrated torch cable design of the MA-series robots eliminates cable interference. This makes programming easier and reduces wear and associated cable maintenance downtime. n MA-series robots are backed by the industry’s only two-year torch cable warranty. DX100 Controller n Windows® CE programming pendant with color touch screen, fast processing, easy-to-use INFORM III programming language and robust PC architecture. n Menu-driven arc welding software including graphic diagram of weld parameter settings. n Safety features – enhanced dual-channel E-Stop functionality, integrated speed monitoring, manual brake release for the robot and compliance with both U.S. and Canadian safety standards. Part Positioner: MRM2-250STN or MRM2-500STN (HD) n Coordinated HS/TS axis allows circumferential welds to be performed in one pass. n 250-kg (551.25 lb) payload. n 2-second index time provides high-volume production. n 1,170 mm (46.1") maximum part diameter. n Two spans available: 1,600 mm (63") or 2,600 mm (102.4") for AWII-6000; 1,600 mm (63") or 3,000 mm (118.1") for AWII-6000HD. n The MRM2-500STN, with a 500-kg (1,102.5 lb) payload and larger 1,350 mm part diameter/span is available with the AWII-6000/6200HD versions. It has a 5-second index time. n Patented design uses a single servo motor to drive both the HS and TS in front of the robot and the robot's main sweep axis. n Use of a single motor reduces cost and improves reliability due to fewer components. Customer Satisfaction n Motoman is committed to delivering the best customer satisfaction in the robot industry. n 24-hour technical and field service support, industry-leading warranties and maintenance protection plans. n Motoman has world-class training facilities and is dedicated to instructing customers in safe, effective programming and operation of their robots. ARM YOURSELF …with an ArcWorld II-6000. A cost-effective, efficient system for robotic arc welding with high-volume production results…packaged in a complete, low-risk, industry-proven solution. HIGHLIGHTS TOP 3 REASONS TO BUY! n Highest value workcell; functionality vs. low price n Ideal for job shops; high flexibility with coordinated part positioning n Patented part positioner is the world’s most popular with more than 5,000 units installed worldwide master arc Robots improve partpart access Dual robots maximize productivitywith DX100 Controller

Open the catalog to page 1

Motoman ArcWorld II-6000 Welding Solution - 2

Motoman CORPORATATE HEADQUARTERS 805 Liberty Lane, WEST CARROLLTONTON, OHIO 45449 Tel : 937.847.6200 • FAX: 937.847.6277 T ECHNICAL SPECIFICATIONATIONS SUBJECT TOTO CHANGE WITHOUT NOTICE DS-444 ©2010 MOTOOTOMAN INC. january 2010 MOTOOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of Microsoft PanelView is a Trademark of Rockwell Automation A LL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOOTOMAN INC. C ONFIGURATION OPTIONS n MA1900 extended-reach robots n Higher payload positioner, MRM2-500STN, with 500 kg (1,102.5 lb) payload, available with the...
