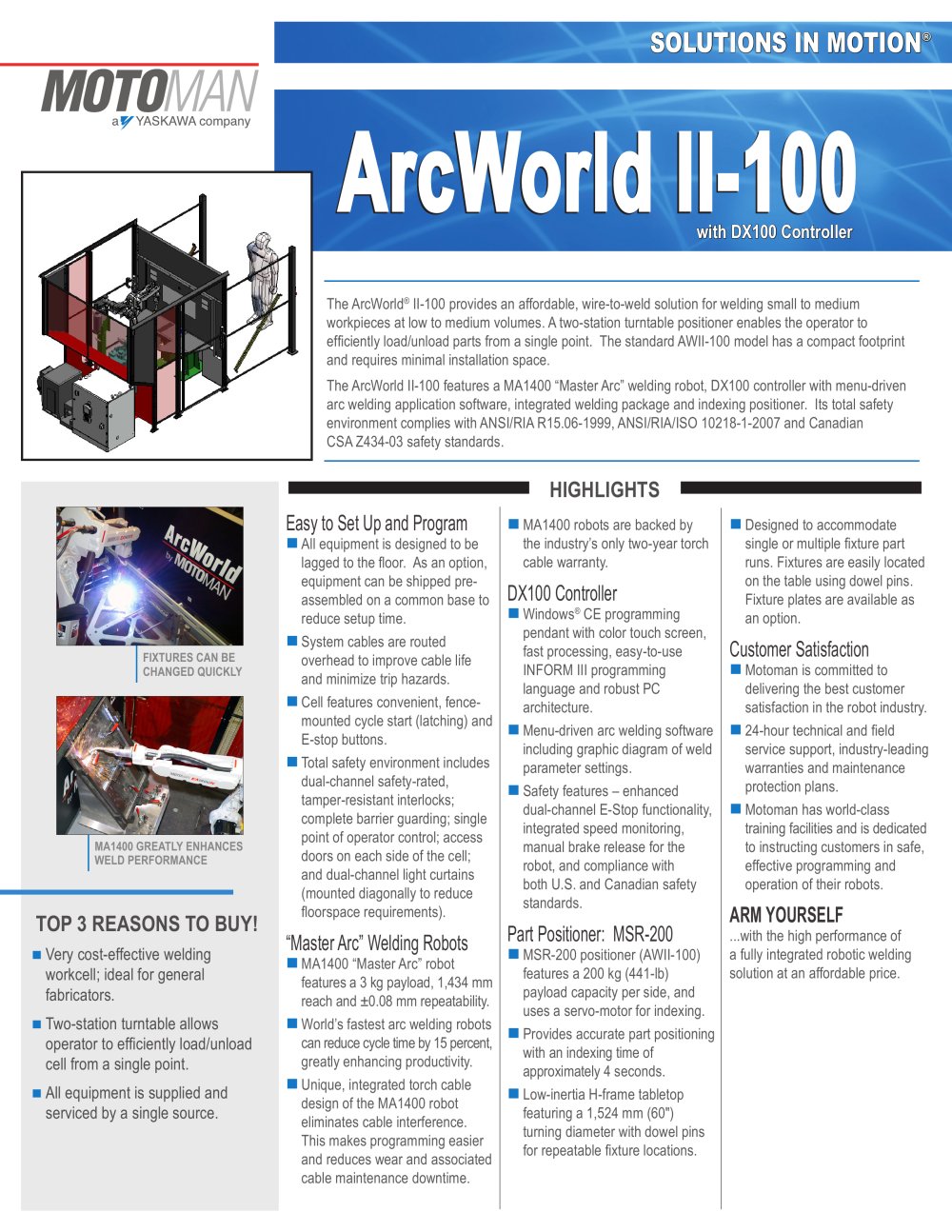

Motoman ArcWorld II-100 Welding Solution - 1

FIXTURES CAN BE CHANGED QUICKLY The ArcWorld® II-100 provides an affordable, wire-to-weld solution for welding small to medium workpieces at low to medium volumes. A two-station turntable positioner enables the operator to efficiently load/unload parts from a single point. The standard AWII-100 model has a compact footprint and requires minimal installation space. The ArcWorld II-100 features a MA1400 “Master Arc” welding robot, DX100 controller with menu-driven arc welding application software, integrated welding package and indexing positioner. Its total safety environment complies with ANSI/RIA R15.06-1999, ANSI/RIA/ISO 10218-1-2007 and Canadian CSA Z434-03 safety standards. Easy to Set Up and Program n All equipment is designed to be lagged to the floor. As an option, equipment can be shipped pre-assembled on a common base to reduce setup time. n System cables are routed overhead to improve cable life and minimize trip hazards. n Cell features convenient, fence-mounted cycle start (latching) and E-stop buttons. n Total safety environment includes dual-channel safety-rated, tamper-resistant interlocks; complete barrier guarding; single point of operator control; access doors on each side of the cell; and dual-channel light curtains (mounted diagonally to reduce floorspace requirements). “Master Arc” Welding Robots n MA1400 “Master Arc” robot features a 3 kg payload, 1,434 mm reach and ±0.08 mm repeatability. n World’s fastest arc welding robots can reduce cycle time by 15 percent, greatly enhancing productivity. n Unique, integrated torch cable design of the MA1400 robot eliminates cable interference. This makes programming easier and reduces wear and associated cable maintenance downtime. n MA1400 robots are backed by the industry’s only two-year torch cable warranty. DX100 Controller n Windows® CE programming pendant with color touch screen, fast processing, easy-to-use INFORM III programming language and robust PC architecture. n Menu-driven arc welding software including graphic diagram of weld parameter settings. n Safety features – enhanced dual-channel E-Stop functionality, integrated speed monitoring, manual brake release for the robot, and compliance with both U.S. and Canadian safety standards. Part Positioner: MSR-200 n MSR-200 positioner (AWII-100) features a 200 kg (441-lb) payload capacity per side, and uses a servo-motor for indexing. n Provides accurate part positioning with an indexing time of approximately 4 seconds. n Low-inertia H-frame tabletop featuring a 1,524 mm (60") turning diameter with dowel pins for repeatable fixture locations. n Designed to accommodate single or multiple fixture part runs. Fixtures are easily located on the table using dowel pins. Fixture plates are available as an option. Customer Satisfaction n Motoman is committed to delivering the best customer satisfaction in the robot industry. n 24-hour technical and field service support, industry-leading warranties and maintenance protection plans. n Motoman has world-class training facilities and is dedicated to instructing customers in safe, effective programming and operation of their robots. ARM YOURSELF ...with the high performance of a fully integrated robotic welding solution at an affordable price.ArcWorld 100ArcWorld II-100 HIGHLIGHTS TOP 3 REASONS TO BUY! n Very cost-effective welding workcell; ideal for general fabricators. n Two-station turntable allows operator to efficiently load/unload cell from a single point. n All equipment is supplied and serviced by a single source. MA1400 GREATLY ENHANCES WELD PERFORMANCESOLUTIONS IN MOTION® with DX100 Controller

Open the catalog to page 1

Motoman ArcWorld II-100 Welding Solution - 2

ArcWorld II-100 TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-428-A ©2009 MOTOMAN INC. NOVEMBER 2009 MOTOMAN IS A REGISTERED TRADEMARK Windows is a registered trademark of Microsoft ALL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOMAN INC. DRAWINGS CONFIGURATION OPTIONS n Common base for workcell and controller n Optional tooling plates Small: 350 x 500 mm (13.8" x 19.7") Large: 650 x 1,000 mm (25.4" x 39.4") n Faster, high-payload positioner (AW1000/AWIII-1000) 300 kg/500 kg (661.5/1,102.5 lb) payload 4-second/2-second index n Two robots (AW1200 or...

Open the catalog to page 2
