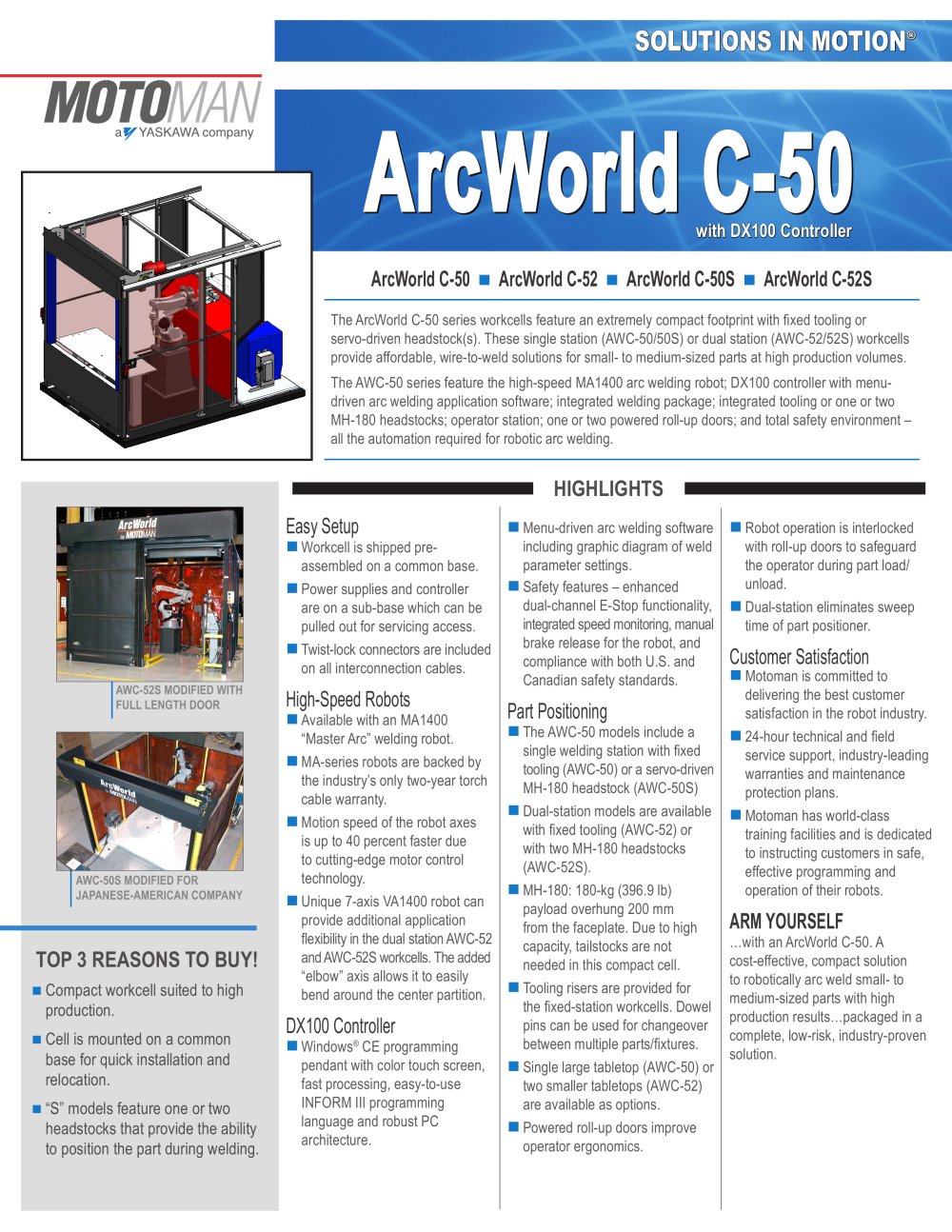

Motoman ArcWorld C-50 Compact Welding Solution - 1

ArcWorld 50ArcWorld C-50SOLUTIONS IN MOTION® with DX100 Controller ArcWorld C-50 n ArcWorld C-52 n ArcWorld C-50S n ArcWorld C-52S The ArcWorld C-50 series workcells feature an extremely compact footprint with fixed tooling or servo-driven headstock(s). These single station (AWC-50/50S) or dual station (AWC-52/52S) workcells provide affordable, wire-to-weld solutions for small- to medium-sized parts at high production volumes. The AWC-50 series feature the high-speed MA1400 arc welding robot; DX100 controller with menu-driven arc welding application software; integrated welding package; integrated tooling or one or two MH-180 headstocks; operator station; one or two powered roll-up doors; and total safety environment – all the automation required for robotic arc welding. Easy Setup n Workcell is shipped pre-assembled on a common base. n Power supplies and controller are on a sub-base which can be pulled out for servicing access. n Twist-lock connectors are included on all interconnection cables. High-Speed Robots n Available with an MA1400 “Master Arc” welding robot. n MA-series robots are backed by the industry’s only two-year torch cable warranty. n Motion speed of the robot axes is up to 40 percent faster due to cutting-edge motor control technology. n Unique 7-axis VA1400 robot can provide additional application flexibility in the dual station AWC-52 and AWC-52S workcells. The added “elbow” axis allows it to easily bend around the center partition. DX100 Controller n Windows® CE programming pendant with color touch screen, fast processing, easy-to-use INFORM III programming language and robust PC architecture. n Menu-driven arc welding software including graphic diagram of weld parameter settings. n Safety features – enhanced dual-channel E-Stop functionality, integrated speed monitoring, manual brake release for the robot, and compliance with both U.S. and Canadian safety standards. Part Positioning n The AWC-50 models include a single welding station with fixed tooling (AWC-50) or a servo-driven MH-180 headstock (AWC-50S) n Dual-station models are available with fixed tooling (AWC-52) or with two MH-180 headstocks (AWC-52S). n MH-180: 180-kg (396.9 lb) payload overhung 200 mm from the faceplate. Due to high capacity, tailstocks are not needed in this compact cell. n Tooling risers are provided for the fixed-station workcells. Dowel pins can be used for changeover between multiple parts/fixtures. n Single large tabletop (AWC-50) or two smaller tabletops (AWC-52) are available as options. n Powered roll-up doors improve operator ergonomics. n Robot operation is interlocked with roll-up doors to safeguard the operator during part load/unload. n Dual-station eliminates sweep time of part positioner. Customer Satisfaction n Motoman is committed to delivering the best customer satisfaction in the robot industry. n 24-hour technical and field service support, industry-leading warranties and maintenance protection plans. n Motoman has world-class training facilities and is dedicated to instructing customers in safe, effective programming and operation of their robots. ARM YOURSELF …with an ArcWorld C-50. A cost-effective, compact solution to robotically arc weld small- to medium-sized parts with high production results…packaged in a complete, low-risk, industry-proven solution. TOP 3 REASONS TO BUY! n Compact workcell suited to high production. n Cell is mounted on a common base for quick installation and relocation. n “S” models feature one or two headstocks that provide the ability to position the part during welding. AWC-52S modified with full length door awcawc -50S mod ified for japaneseapanese-american companycompany HIGH LIGHTS

Open the catalog to page 1

Motoman ArcWorld C-50 Compact Welding Solution - 2

ArcWorld C-50 TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-442 ©2010 MOTOMAN INC. january 2010 DRAWINGS CONFIGURATION OPTIONS n MH6 six-axis robot n VA1400 7-axis robot (AWC-52, AWC-52S) n Tabletop(s) (AWC-50, AWC-52) n MH-75 headstock Payload: 75 kg (165.4 lb) @ 152 mm off center, 500 mm (19.7") overhang Rated speed: 24.7 rpm WELDING OPTIONS n Water-cooled torch n Torch maintenance package n Arm-mounted 30-lb spool bracket n ToolSight™ n Wire cutter n Miller, Fronius or other power sources n Aluminum welding packages n ComArc (seam-tracking/finding) n WeldHound™ process...
