SoniXs XT Automatic Strapping Machine

Product catalog summary

Overview: The SoniXs XT is an entry-level automatic strapping machine designed for universal applications across various industries such as newspapers, print media, mail order, logistics, food & beverage, and corrugated cardboard & paper. It features energy-efficient electrical drives and is known for its reliability and adaptability to a wide range of products.

Key Features:

SoniXs ultrasonic sealing unit in standard-7 version.
Wear-free DC drive with brushless motor technology.
Strap end detection with ejection of remaining strap.
Easy strap coil change and threading system.
Soft strapping option for sensitive packages.
Low-wear, controlled strap path system.
Adjustable strap tension via potentiometer.
Energy-saving drives with extremely low energy consumption.
Hinged front table top for easy accessibility and tool-free dismantling of strap path components.
Manual strapping release via two fixed foot pedals or a stepless turnable control panel (0 - 180°).
CE marking inclusive conformity declaration.

Technical Specifications:

Performance: Up to 52 cycles/min at a frame size of 600 × 600 mm.
Frame Sizes: 600 × 600 mm, 800 × 800 mm, 1,250 × 600 mm.
Working Height: 820 – 925 mm.
Straps: PP straps with various dimensions (5 × 0.47 mm, 8 × 0.45 mm, 9 × 0.55 mm, 12 × 0.55 mm).
Strap Coil Dispenser: Inner diameter 200 mm, max. outer diameter 430 mm, core length 190 mm.
Electricity: Voltage 100 - 240 V, 50 / 60 Hz, 1L+N+PE, power consumption approx. 0.2 kW.
Weight: 180 - 240 kg (without options).

Options and Accessories:

Automatic strap release via light sensor.
Selection of single or permanent strapping and strap tension control via light barrier.
Three different strap tensions storable by the customer.
Table extension up to 90 mm each side.
Balls or rollers in table plate.

Additional Information: Suitable consumables are available directly from Mosca, and the machine can be combined with Mosca maintenance contracts for holistic support. The machine is designed for easy operation with a turnable operation panel and additional foot pedal for convenient use from both sides.

Catalog excerpts

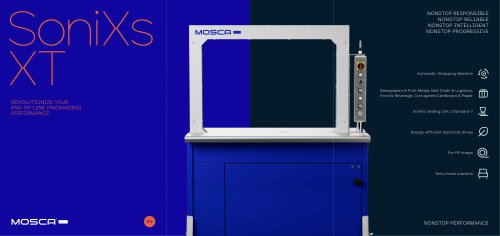

SoniXs XT REVOLUTIONIZE YOUR END-OF-LINE [PACKAGING] PERFORMANCE NONSTOP RESPONSIBLE NONSTOP RELIABLE NONSTOP INTELLIGENT NONSTOP PROGRESSIVE Automatic Strapping Machine Newspapers & Print Media, Mail Order & Logistics, Food & Beverage, Corrugated Cardboard & Paper SoniXs Sealing Unit | Standard-7 Energy-efficient electrical drives Entry-level machine NONSTOP PERFORMANCE

Open the catalog to page 1

The SoniXs XT is a durable entry-level machine that automatically and reliably straps packages from all industry sectors. It is adaptable to a wide variety of products with simple handling. Standard features include a turnable operation panel and additional foot pedal for convenient operation from both sides. Performance: Up to 52 cycles/min at a frame size of 600 × 600 mm SoniXs ultrasonic sealing unit in standard-7 version DIMENSIONS / WORKING WIDTH MACHINE Wear-free DC drive, brushless motor technology Frame Sizes: (W ×H) 600 × 600 mm 800 × 800 mm 1,250 × 600 mm Strap end detection with ejection...

Open the catalog to page 2
