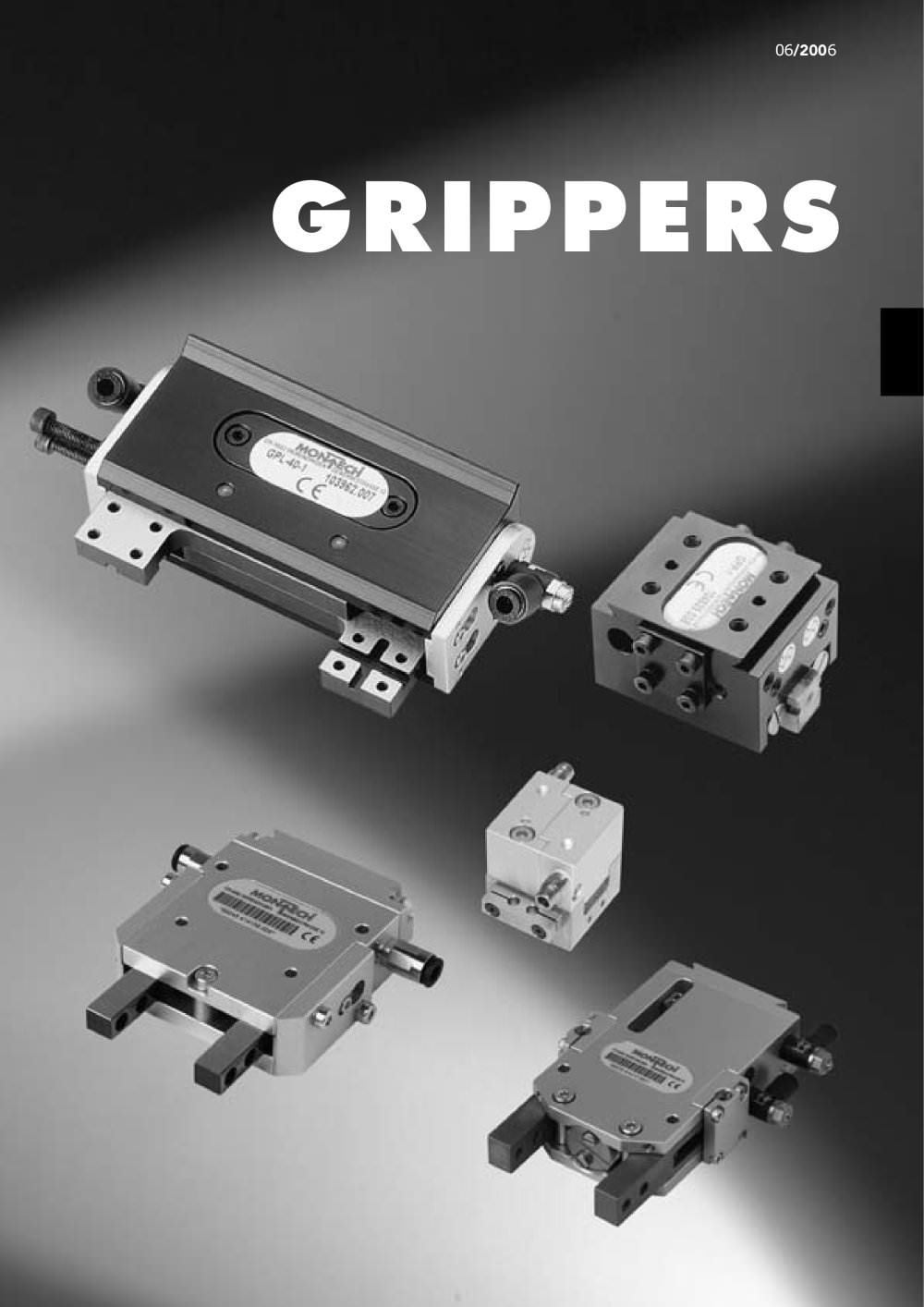

MONTECH
Automation – Grippers

Automation – Grippers

Product catalog summary

Precision Parallel Grippers GPP Product Description: The GPP grippers are designed for demanding applications, capable of both internal and external gripping. They are double-acting and can be configured to open or close when depressurized. Proximity switches detect end positions, and the gripper body includes tapped holes for additional devices. Safety features include throttling orifices to prevent overloading, and high precision ball bearings ensure efficiency and reliability.

Applications: Used in revolver pivot units with rotary drives for precise workpiece handling without radial deviation.

Variants and Accessories: The GPP/GPPI/GPP-ISO grippers come in three sizes and variants, with dovetail mounting and ISO compatibility for robots. Accessories include clamping devices for proximity switches and exhaust throttles.

Gripping Force and Load Calculations: Examples of gripping force calculations for different configurations, including external and internal gripping with and without springs, are provided. Load factors and limit constants are detailed for safe operation.

Technical Specifications: Operate at pressures between 3-6 bar, with air as the medium. Feature a repeatability of ±0.005 mm and require no maintenance. Material composition includes aluminum, steel, bronze, and plastic.

Precision Parallel Mini Grippers GPPM: Designed for small parts in confined spaces, the GPPM grippers are dual-acting and feature a patented ball guide for precision and efficiency. Compressed air can be supplied in various directions to accommodate different installation requirements.

Installation and Configuration: The GPPM series can be installed using attachment drill holes or optional adapters with Quick-Set® size 20. Proximity switches can be attached to the housing using an attachment set. The GPPM-X allows air infeed and installation of proximity switches along the guide direction, while the GPPM-Y does so across the guide direction. The GPPMI variant allows air infeed from above without proximity switches.

Scope of Delivery: GPPMX and GPPMY come with a clamping device for proximity switches and two plug-type connections. GPPMI-X and GPPMI-Y include a clamping device for proximity switches.

Specifications: Available in two sizes with three variants each. Key parameters include gripping force, static forces, and load moments. Maximum permissible static forces per jaw are specified for different models.

Operating Conditions: Operating pressure ranges from 3 to 6 bar, with air as the medium, either oiled or unoiled, filtered to 5 µm. Ambient temperature should be between 10°C and 50°C, with relative humidity below 95% without condensation. Require no maintenance and have a warranty of two years from the date of delivery.

Universal Parallel Grippers (GPU/GPUI Series): Feature a robust, low-friction guide system for the jaws, utilizing cylindrical rollers for high efficiency. Compact, allowing multiple units to be mounted side by side. Offer high repeatability and gripping force relative to their weight.

Specifications: Available in four sizes, with varying gripping distances, piston diameters, and opening/closing times. Operate at pressures between 2 and 6 bar and are suitable for air, either oiled or unoiled, filtered to 5 µm.

Operating Conditions: Similar to the GPPM series, operate within a temperature range of 10°C to 50°C and require maintenance after 10 million cycles. Come with a two-year warranty.

Gripping Force Diagrams: Include diagrams illustrating the relationship between gripping force and various parameters such as pressure and distance, providing guidance on optimal operating conditions.

Long-Stroke Grippers GPL Product Description: Designed for gripping parts with varying dimensions, featuring robust, low-friction jaw guides with cylindrical rollers. Pneumatic connections and proximity switches are located on the housing's narrow side. An optional incremental encoder allows for precise finger positioning.

Applications: Can be used with proximity switches for interlocking gripping and with encoders for monitoring dimensions without complex systems.

Scope of Delivery and Accessories: Come with a clamping device for proximity switches and exhaust throttles. Special accessories and Quick-Set® are available.

Technical Specifications: Gripping force per finger (FS), static forces (Foy, Foz), and load moments (Mox, Moy, Moz) are defined with permissible values provided. Operate at 3-6 bar pressure with air filtered to 5 µm. Maintenance-free and have a 2-year warranty.

Size Variants: GPL-30-1 and GPL-40-1 offer different stroke lengths and weights, with specific opening and closing times. GPL-45-2, GPL-60-2, and GPL-75-2 provide larger stroke options and increased weight.

Universal Angular Grippers GWU/GWUI Product Description: Designed for external gripping, these grippers feature a double-acting pneumatic cylinder and jaws that open 180°, reducing handling movements. Include proximity switches and compressed-air supply on narrow sides.

Technical Specifications: GWU-16/GWUI-16 and GWU-20/GWUI-20 models offer adjustable opening angles, specific piston diameters, and operating pressures. Maintenance-free for up to 10 million cycles and have a 2-year warranty.

Load Definitions: Gripping force (FS), static forces (Foy, Foz), and load moments (Mox, Moy, Moz) are defined with permissible values for different mounting configurations.

Catalog excerpts

GRIPPERS CONTENTS PRECISION PARALLEL MINI GRIPPERS96110 PRECISION PARALLEL GRIPPERS78-93 LONG-STROKE GRIPPERS122֖129 UNIVERSAL PARALLEL GRIPPERS112121 >

Open the catalog to page 2

UNIVERSAL ANGULAR GRIPPERS132137 SPECIAL ACCESSORIES > for Precision Grippers94for Parallel Mini Grippers111 for Long-Stroke Grippers130 size="-1">

Open the catalog to page 3

78 > PRECISION PARALLEL GRIPPERS GPP PRODUCT DESCRIPTION The Precision Parallel Gripper GPP is used for demanding applica-tions.The GPP is designed for internal and external gripping and is dou-ble-acting. It can easily be converted between the functions openwhen depressurized˻ and closed when depressurized˻.The end positions can be detected by means of proximity switches. The gripper body contains tapped holes for fitting external position-ers or part sensing devices. Safety throttling orifices protect the grippers against overloadingby high forces of the gripping fingers.The high precision...

Open the catalog to page 4

79 > APPLICATIONS Revolver pivot unit; with Rotary Drive DAP and two Grippers GPP for work- piece loading and unloading. Precise gripping and rotarymovement; without radial deviation of the workpiece relative to the axis of rotation, realized by means of a Rotary Drive DAPI with internal air supply. >

Open the catalog to page 5

80 > PRECISION PARALLEL GRIPPERS GPP/GPPI/GPP-ISO Three sizes in three variants each. With dovetail for easy mount-ing/adjustment and with stan- dard pattern of holes for all sizes.I version; for mounting on aRotary Drive DAPI with inter- nal air supply.ISO version; gripper mountingaccording to ISO-9409-1-A40 for robots. > SCOPE OF DELIVERY With clamping device for proximity switches and a spring. GPP-ISO with two exhaust throttles. Internal air versions without compressed air supplies. > SUITABLE ACCESSORIES Special accessoriesfrom page 94 Accessoriesfrom page 302 Quick-Set > from page 338 >

Open the catalog to page 6

81 > GRIPPING FORCE DIAGRAM EXAMPLES Example GPP-1 Example GPP-2 External gripping without spring Operating pressure 5 bar L= 70 mm F Internal gripping without spring Operating pressure 5 bar L= 100 mm F > 1 = 28 N > 2 = 82 N Internal gripping with spring(open when depressurized) Operating pressure 5 bar L= 80 mm B= 80 mm F F > 1 , F > 2 = Gripping force per gripper finger External gripping with spring (closed when depressurized) Operating pressure 5 bar L= 60 mm B= 53 mm F B in gripped state [mm] > 1 = 35 NF > 2 = 117 NF > 1 at 0 bar = 6 N > 2 at 0 bar = 32 N F > DEFINITION AND LOAD CALCULATIONS...

Open the catalog to page 7

0.05 11.5 *See gripping force diagram1)Dimension of jaws closed (min.) and open (max.) 2)Position of proximity switch when jaws fully closed 3)Position of proximity switch when jaws fully open

Open the catalog to page 9

5H8 > 0.05 18 *See gripping force diagram1)Dimension of jaws closed (min.) and open (max.) 2)Position of proximity switch when jaws fully closed 3)Position of proximity switch when jaws fully open

Open the catalog to page 13

215H8M4x5M4x6M4x6 > 豱0.05 6895 72 18 14.114.1 6 h6 63712.5 14.114.1 > *See gripping force diagram1)Dimension of jaws closed (min.) and open (max.) 2)Position of proximity switch when jaws fully closed 3)Position of proximity switch when jaws fully open

Open the catalog to page 15

0.01 27.25M4x7 M5x1220 5H8M4x7M4x77.2517.517.549.5 > 豱0.05 6h6 14.114.1 23.5 7883 14.114.1 > *See gripping force diagram1)Dimension of jaws closed (min.) and open (max.) 2)Position of proximity switch when jaws fully closed 3)Position of proximity switch when jaws fully open

Open the catalog to page 19

94 > SPECIAL ACCESSORIES FOR GPPADAPTERS for attaching fingers to GPP grippers for GPP-1 > European projection European projection European projection 39025 for GPP-2 39026 for GPP-3 39027 >

Open the catalog to page 20

96 > PRECISION PARALLEL MINI GRIPPERS GPPM PRODUCT DESCRIPTION The Precision Mini Gripper GPPM was developed for handlingsmallparts in confined installation conditions.The GPPM is dual-acting; it can be used for internal or externalspans.At the heart of the Precision Mini Gripper is a precise ball guide(patented) which ensures advanced operational safety, longevity, high precision and a high degree of mechanical efficiency. >

Open the catalog to page 22

97 Compressed air can be supplied along or across the guide directionor from above. In this way, all requirements can be met, including arrangement of components in a row without any gaps between them.As an option, the end positions can be queried with proximity swit-ches which are attached to the housing by means of an attachment set.Installation of the gripper is either by means of attachment drillholes or with optional adapters with Quick-Set > size 20 (see page401 onwards). >

Open the catalog to page 23

99 > DEFINITION AND CALCULATION M y M x L x L x F y F y F S (F) S L z (F) S L y M z F z M = 0.001 (F ׷ L + F (L + 4))M > F S 0x 0z y 0y z F z 0y = 0.001 ׷ (F > s (L > z + 4) + F > 0z ׷ L > x )M > 0z = 0.001 (F > s ׷ L > y + F > 0y L > x ) Combined loading B > = M > 0x 1 + M > 0y K > 2 + M > 0z K > 3 <_ 1____________K K > 1 K > 2 K > 3 F > 0y max [N]F > 0z max [N] GPPM-11.660.660.661414GPPM-22.151.461.462020 F > s :Gripping force [N] (as gripping force diagram)F > 0y , F > 0z :Forces acting [N]F > 0y max , F > 0z max :Max. permissible static forces per jaw [N]L > x , L > y , L > z :Distances of...

Open the catalog to page 25

103 > European projection GPPMI-1 2H7x3 deep M2.5x3 deepHole Hole Air supplyؘ2H8x2.5 deep M2.5x3.5 deepM2x2.5 deep View AGripping jaw Ref. No. GPPMI-1 50414 >

Open the catalog to page 29

111 > SPECIAL ACCESSORIES FOR GPPM ACCESSORIES ADAPTERS for installation with Quick-Set > size 20for GPPM-1X/GPPM-1Y 50420 for GPPM-2X/GPPM-2Y 50421 > INDUCTIVE PROXIMITY SWITCH Θ 3 mm PNP, short-circuit and reverse polarity protected,sensing distance 0.6 mm, flush-mountable, with LED L = 2000 mm 508846 > 3ؘ2.6 22L PNEUMATICS CONNECTIONS 1Threaded outgoing air-throttle M3,with angled swivel connection, pluggable, 3 mm 507518 2Angled screw connector M3, pluggable, ؘ 3 mm 507517 3Screw-connector M3, straight, pluggable, 3 mm 507516 > 3 12 size="-3">

Open the catalog to page 37

112 > UNIVERSAL PARALLEL GRIPPERS GPU/GPUI PRODUCT DESCRIPTION The Universal Parallel Gripper GPU/GPUIpossess an extremelyrobust, low-friction guide system for the jaws, in which the mainforces are transferred by cylindrical rollers. The efficiency is veryhigh. The grippers are extremely high repeatability, combined with the compact and the pneumatic connec-tions plus the proximity switches are arranged on the narrow side. As a result, several grippers can be mounted side by side in a very small space.The high gripping force pergripper weight, can also convince demanding users.A safety orifice...

Open the catalog to page 38
