ultrasonic tension controller
ultrasonic tension controller
- Digital ultrasonic measurement for precise tension control.
- Capability to save four different material settings.
- Intelligent tension controller integrated into the sensor.
- Programmable via operator panel or PC software, with Windows PC software available for setup and diagnostics.
- Infrared data communication for interfacing with PCs or PDAs.
- Electrical (U-3500ce): Operates on 115 or 230 VAC with optional 24VDC supply. Maximum power consumption is 3.2 VA.
- Environmental: Operating temperature range is 32 to 122˚F, with storage from 14 to 176˚F. It has an IP54 protection rating.
- Electrical (MUS-1ce): Requires 24 VDC nominal supply, with a maximum power consumption of 2.5 VA. It supports 4-20 mA regulator outputs and various digital and analog input voltages.
- Physical: The U-3500ce dimensions are 7.68 x 3.62 x 5.08 inches, and the MUS-1ce dimensions are 2.05 x 5.59 x 2.05 inches.
- Wireless Interface (RS-232) via IrDA.
- Multi-directional mounting bracket available.
Catalog excerpts

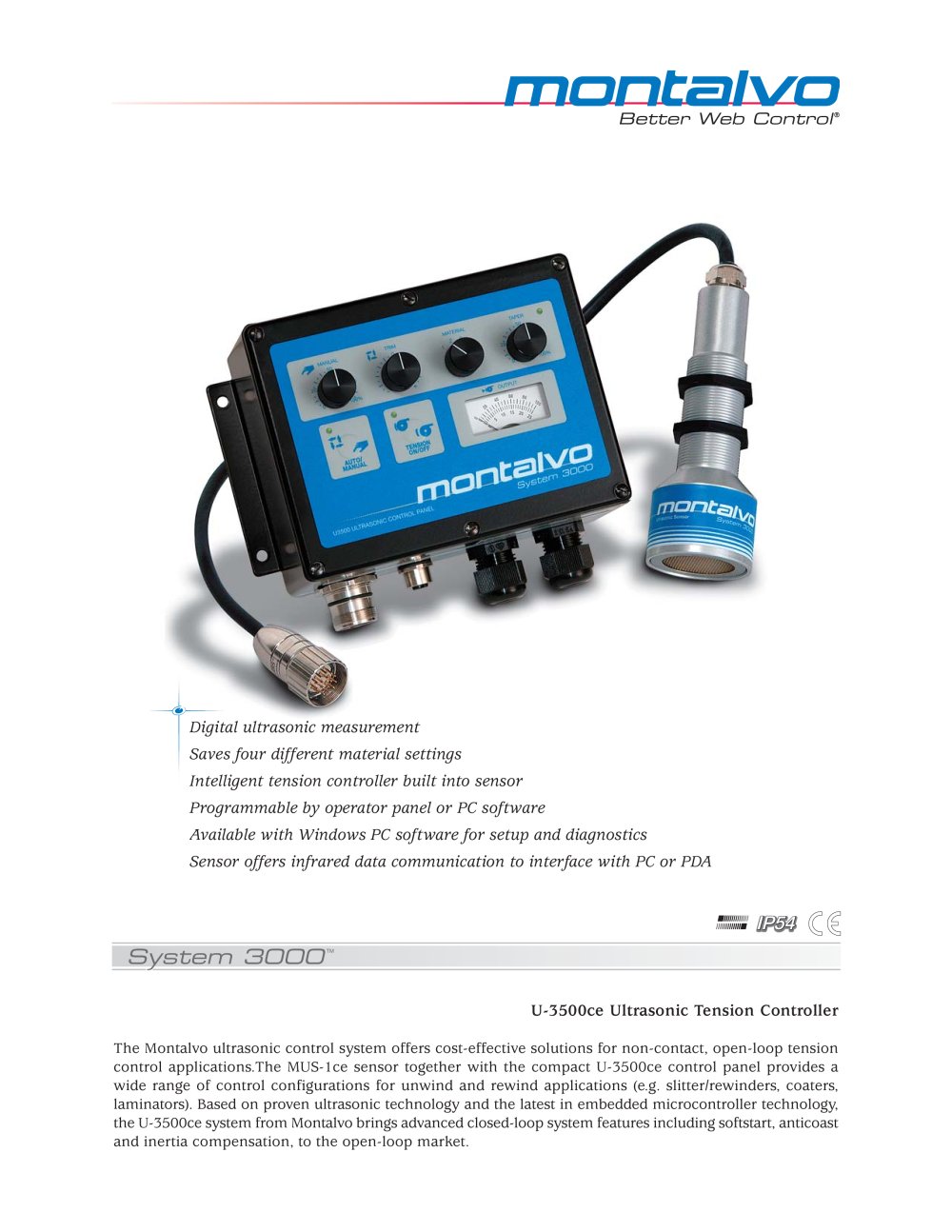

Digital ultrasonic measurementSaves four different material settings Intelligent tension controller built into sensor Programmable by operator panel or PC software Available with Windows PC software for setup and diagnostics Sensor offers infrared data communication to interface with PC or PDA IP54 IP54 IP54 > U-3500ce Ultrasonic Tension Controller The Montalvo ultrasonic control system offers cost-effective solutions for non-contact, open-loop tensioncontrol applications.The MUS-1ce sensor together with the compact U-3500ce control panel provides a wide range of control configurations for unwind and rewind applications (e.g. slitter/rewinders, coaters, laminators). Based on proven ultrasonic technology and the latest in embedded microcontroller technology, the U-3500ce system from Montalvo brings advanced closed-loop system features including softstart, anticoast and inertia compensation, to the open-loop market. size="-2">
