load cell

Product catalog summary

Overview: Montalvo T-Series Idler Shaft Load Cells are designed for use with dead shaft idler rollers. They feature a radial stop design to protect the sensing beam while maintaining performance. These load cells are durable, meet IP54 protection standards, and are available in two sizes with various load ratings and mounting configurations.

Specifications:

Material: Stainless steel construction.
Load Range: 5 to 1000 pounds.
Protection: 360° beam overload stop protection.
Output: High output with excellent linearity and low hysteresis.
Environmental Classification: IP54.
Temperature Range: -4˚ to 150˚F (-20˚ to 70˚C).

Design Features:

Compensates for shaft expansion, misalignment, and bending.
Includes an integral spherical bearing assembly.
Overload protection system to safeguard the sensing beam.

Mechanical Details:

Deflection: 0.008 to 0.015 inches.
Alignment: 1˚ max.
Bore Sizes: Size 0 - 1-1/8"; Size 2 - 1-1/2".
Dimensions vary by model, with specific measurements provided for each.

Electrical Characteristics:

Excitation: 5 VDC.
Output Signal: 250 mV nominal at full load.
Gauge Resistance: 80 - 130 Ω.
Connector Type: DIN 45322 (6 pin).

Loading and Overload:

Rated Load: Varies by size and mount, with specific ratings provided.
Overload Capacity: Tested at 300% of the maximum rated load.
Overload Stops: 110% of full load.

Recommendations: For optimal performance and safety, it is recommended to consult a Montalvo Application Specialist to select the appropriate product for specific applications.

Catalog excerpts

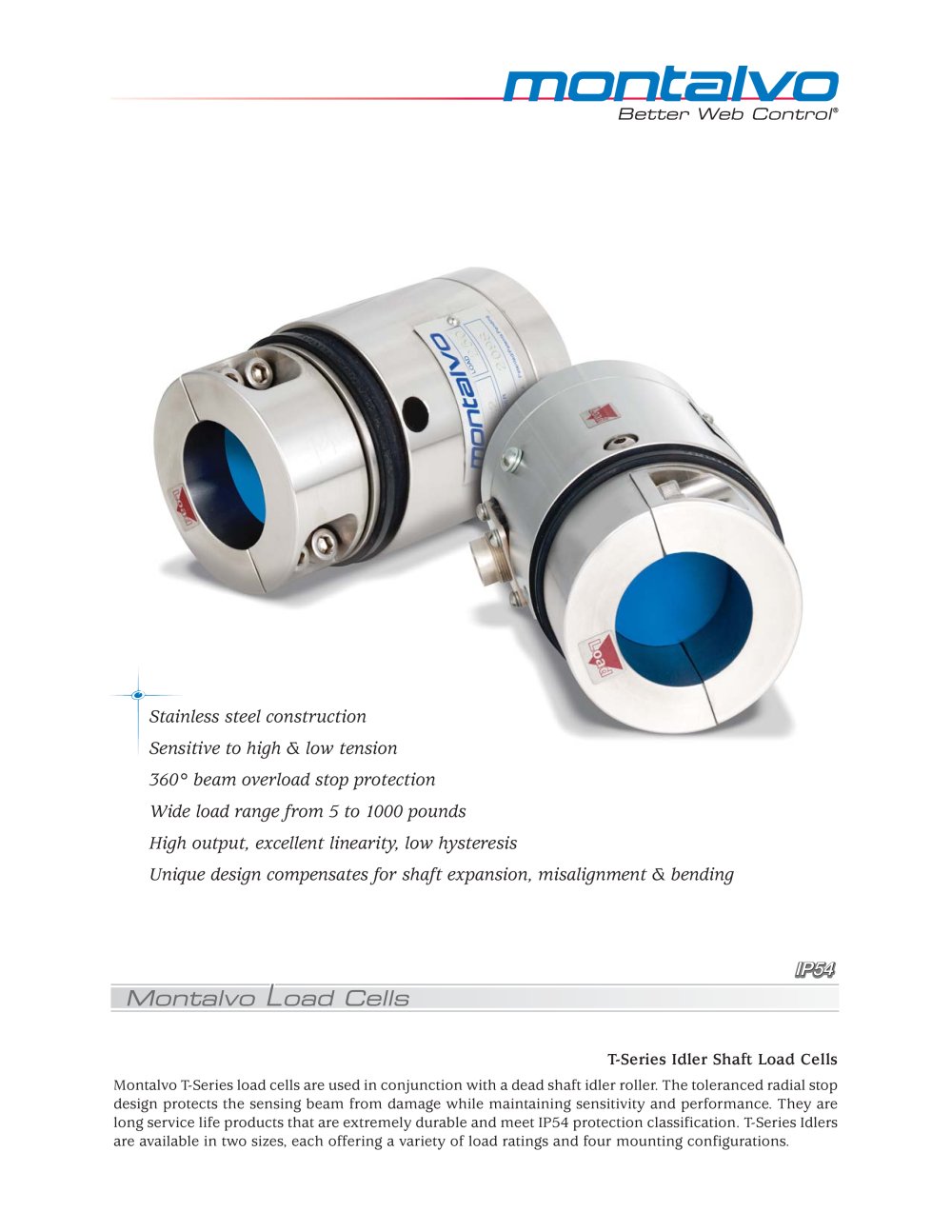

IP54 IP54 IP54 > T-Series Idler Shaft Load Cells Montalvo T-Series load cells are used in conjunction with a dead shaft idler roller. The toleranced radial stopdesign protects the sensing beam from damage while maintaining sensitivity and performance. They are long service life products that are extremely durable and meet IP54 protection classification. T-Series Idlers are available in two sizes, each offering a variety of load ratings and four mounting configurations. size="-2">

Open the catalog to page 1

Mount S, F, P or PB S (standard) F (flange) P (pillow block) PB (split pillow block) Series T, N, UPB or SW NTSWUPB Size Load Rating 0 or 2 Consider the following: Load rating, shaft size & dimensions Size 0 5, 25, 50, 75, 100 or 150 Size 2 75, 150, 250, 500 or 1000* *F & PB mounts only 2 > Lower LoadsSmaller ShaftsSmaller Dimensions Higher Loads Larger Rollers Larger Dimensions F t points ABOVE horizonF t points BELOW horizonF t is HORIZONTAL t WEB WEB LR=load rating P=maximum tension (pull) on web B=wrap angle W=weight of roller in pounds A=angle between F BACC/2Bww CBCC/2w F t WEB AF F t t...

Open the catalog to page 3
