Serializing Heads

Product catalog summary

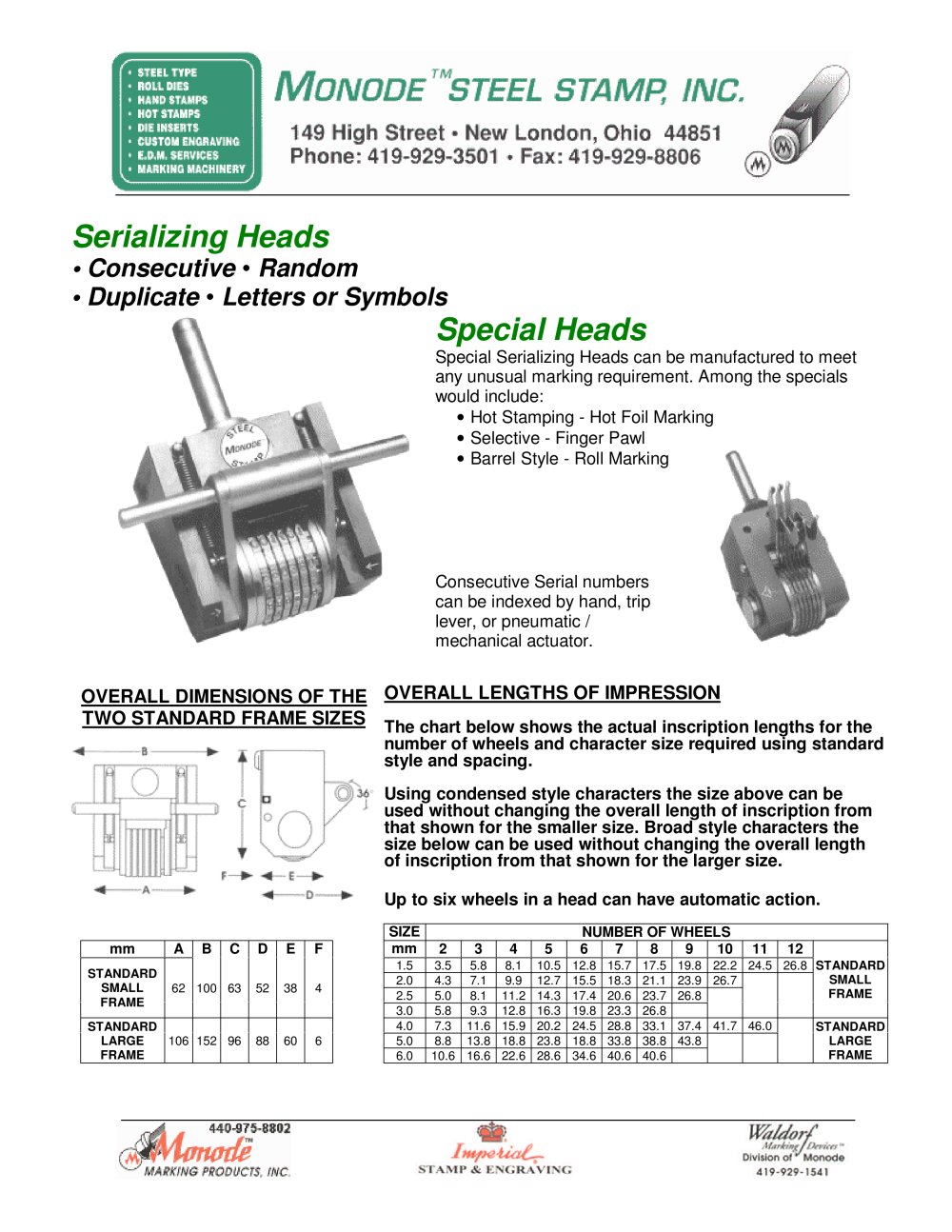

Overview: The document provides detailed specifications and options for serializing heads used in marking applications. It covers various types of serializing heads, special manufacturing options, and the dimensions and configurations available.

Types of Serializing Heads:

Consecutive, Random, Duplicate: These heads are designed for different serializing needs, including consecutive numbering and random or duplicate markings.
Letters or Symbols: Heads can be customized to include letters or symbols as required.

Special Serializing Heads: Special heads can be manufactured for unique marking requirements, including:

Hot Stamping: Hot foil marking options.
Selective - Finger Pawl: For selective marking needs.
Barrel Style - Roll Marking: Suitable for roll marking applications.

Consecutive Serial Numbers: These can be indexed manually, with a trip lever, or using pneumatic/mechanical actuators.

Overall Dimensions: The document provides dimensions for two standard frame sizes, detailing the overall lengths of impressions based on the number of wheels and character size.

Character and Wheel Specifications:

Standard Wheels: Cut with sharp faces, numbered 0-9, with options for logos, symbols, or letters.
Character Styles: Options include condensed, concave, or convex characters.
Security Pin: Ensures wheel positioning and transmits impact energy for marking.

Hand Numbers: The document outlines character sizes and the corresponding length of marked impressions, suitable for hand or machine use, with maximum wheel numbers specified for each size.

Usage: The numberer can be used in machines or manually with a hammer, ideal for random numbering with easy character setting.

Catalog excerpts

Standard wheels are cut with a sharp face, 0-9(inclusive) with one blank station. Logos, symbols or letters can be engraved sharp face, flat face, or low stress. Condensed, concave, or wheels engravedwith convex characters can be special ordered.The security pin not only fastens thewheels in position, but also transmits the impact energy in the body of the tool, directly to the point of marking. CHARACTER SIZELENGTH OF MARKEDIMPRESSION MMINCHNO. OF WHEELS(STANDARD UNIT)MMINCHHAND ORHAND/MACHINEUSEMAXIMUM NO.OF WHEELS 1.51/1668.40.34H/M14 2.05/64611.20.45H/M10 2.53/32614.00.56H/M8 3.01/8616.80.67H/M7...
