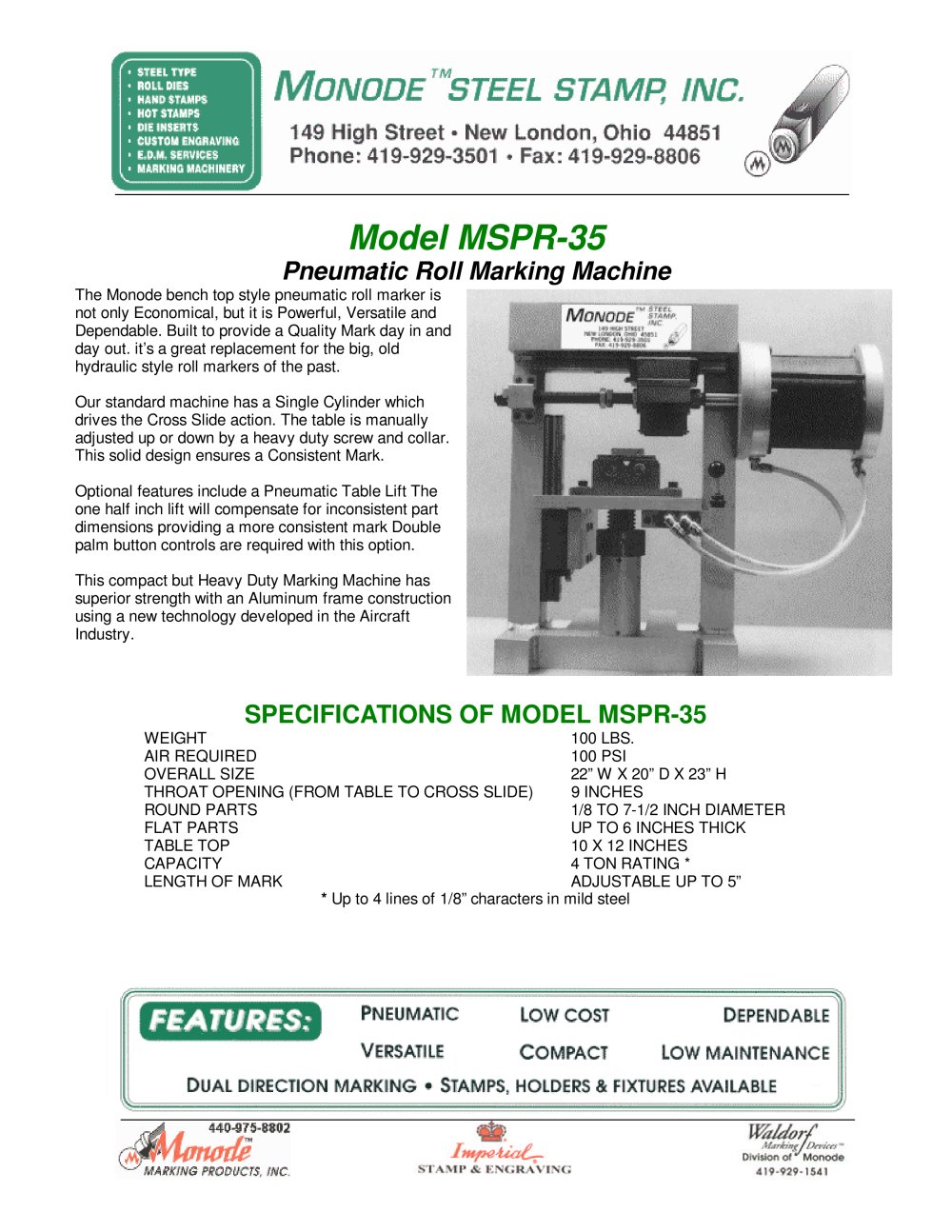

Monode Model MSPR-35 Pneumatic Roll Marking Machine

Product catalog summary

Overview: The MSPR-35 is a pneumatic roll marking machine designed for bench top use. It is economical, powerful, versatile, and dependable, making it an excellent replacement for older hydraulic roll markers. The machine is built to deliver consistent quality marks daily.

Specifications:

Weight: 100 lbs.
Air Required: 100 PSI
Overall Size: 22” W x 20” D x 23” H
Throat Opening: 9 inches (from table to cross slide)
Round Parts Capacity: 1/8 to 7-1/2 inch diameter
Flat Parts Capacity: Up to 6 inches thick
Table Top Size: 10 x 12 inches
Capacity: 4 ton rating, adjustable up to 5 inches
Mark Length: Up to 4 lines of 1/8” characters in mild steel

Features:

Single Cylinder drives the Cross Slide action.
Manual table adjustment via a heavy-duty screw and collar for consistent marking.
Optional Pneumatic Table Lift for compensating inconsistent part dimensions, requiring double palm button controls.
Aluminum frame construction using aircraft industry technology for superior strength.

Applications: The MSPR-35 is suitable for roll marking both flat and round parts. It is ideal for cell manufacturing environments due to its compact size and affordability. The machine can use a solid engraved stamp or a type holder with interchangeable steel type.

Custom Tooling: Monode offers turnkey marking systems with custom tooling options to support parts during the marking process, minimizing distortion under load.
