Monode M-45 Dual Purpose Power Unit

Product catalog summary

Overview: The document provides detailed specifications and descriptions of various power units manufactured by Monode, a leader in electro-chemical marking technology. These units are designed for different marking requirements, from small marks to deep etches.

Monode M-45 Dual Purpose Power Unit: This unit offers both AC and DC outputs with a 3-position switch, providing marking currents of 1.5, 3.0, and 4.5 amps. It is suitable for small or occasional marking needs.

Monode M-150 Dual Purpose Power Unit: Featuring a 6-position switch, this unit regulates voltage from 5 to 20 volts. It is ideal for general use, accommodating shallow to deep etches.

Monode 400 CC-B Solid State Power Unit: Designed for automatic marking machines, this unit offers a pulsing current for deeper marks and longer stencil life. It features independently variable electronic control of 'on' and 'off' cycles.

Monode 311 Power Unit: This unit provides AC-DC output with a 6-position switch, offering voltage settings from 5 to 40 volts. It is suitable for bench or hand use when extreme depth is required.

Monode 510-B Solid State Controlled Etch Power Unit: With 6 high and 6 low positions, this unit offers voltage settings from 5 to 40 volts. It can be used for hand marking or with semi-automatic systems for deep etching.

Contact Information: Monode Marking Products, Inc. is located at 7620 Tyler Boulevard, Mentor, OH, USA. They can be contacted via phone at (440) 975-8802 or email at [email protected].

Catalog excerpts

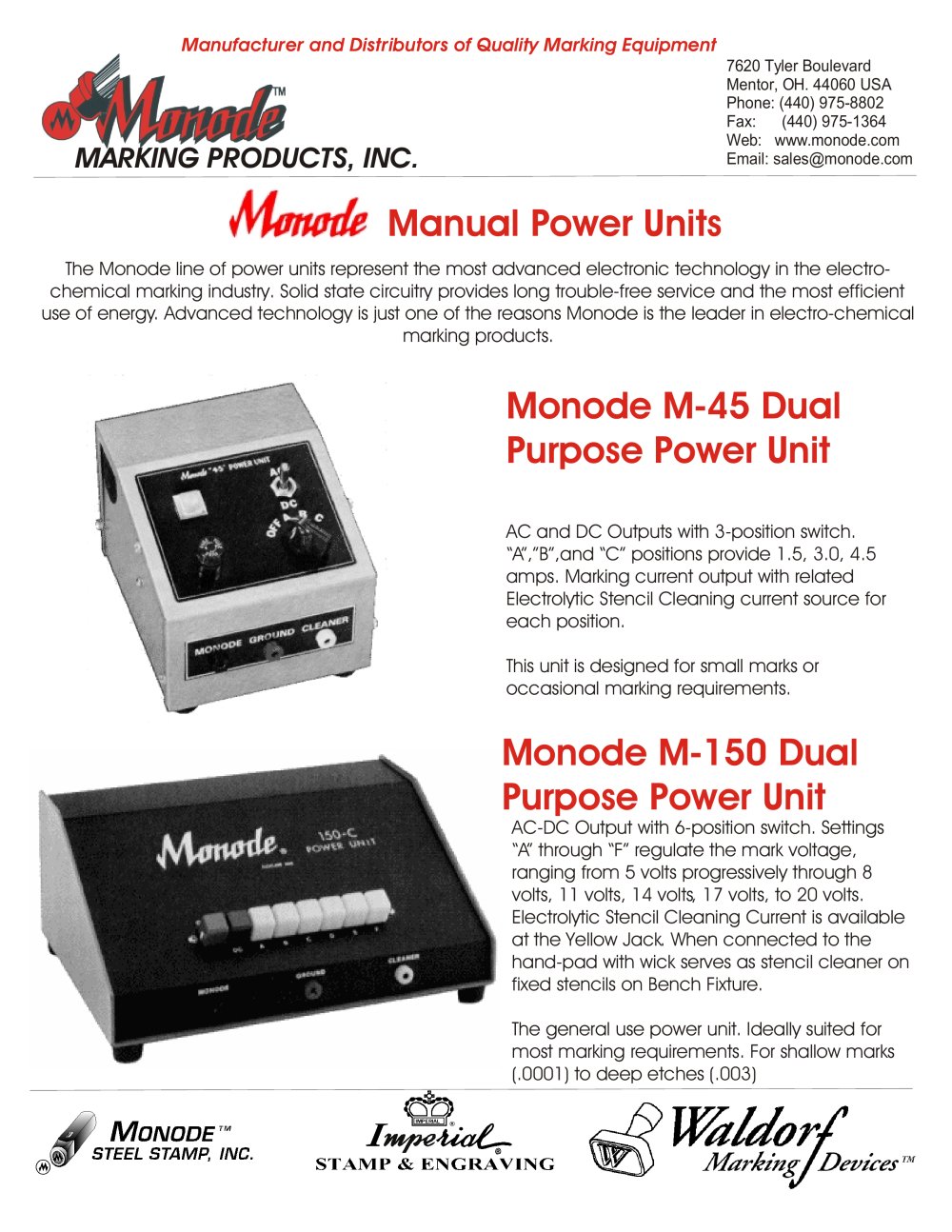

Manufacturer and Distributors of Quality Marking Equipment > 7620 Tyler BoulevardMentor, OH. 44060 USA Phone: (440) 975-8802Fax: (440) 975-1364 Web: www.monode.com Email: [email protected] The Monode line of power units represent the most advanced electronic technology in the electro-chemical marking industry. Solid state circuitry provides long trouble-free service and the most efficientuse of energy. Advanced technology is just one of the reasons Monode is the leader in electro-chemicalmarking products. > AC and DC Outputs with 3-position switch.AӔ,BԔ,and CӔ positions provide 1.5, 3.0, 4.5 amps. Marking current output with related Electrolytic Stencil Cleaning current source for each position.This unit is designed for small marks oroccasional marking requirements. > AC-DC Output with 6-position switch. SettingsAӔ through FӔ regulate the mark voltage, ranging from 5 volts progressively through 8 volts, 11 volts, 14 volts, 17 volts, to 20 volts. Electrolytic Stencil Cleaning Current is available at the Yellow Jack. When connected to the hand-pad with wick serves as stencil cleaner on fixed stencils on Bench Fixture.The general use power unit. Ideally suited formost marking requirements. For shallow marks (.0001) to deep etches (.003) >

Open the catalog to page 1

Manufacturer and Distributors of Quality Marking Equipment > 7620 Tyler BoulevardMentor, OH. 44060 USA Phone: (440) 975-8802Fax: (440) 975-1364 Web: www.monode.com Email: [email protected] for automatic marking machines AC-DC outputwith 6-position switch voltage ranging from 5v progressively thru 8v, 11v, 14, 17v, 20v. The pulsing current generated by this unit results in deeper marks and longer stencils life. It allows vapors to dissipate and permits the resaturating of the stencil apertures with electrolyte on the off cycle, which is instantly variable by simply turning a simple knob in the...

Open the catalog to page 2

Manufacturer and Distributors of Quality Marking Equipment > 7620 Tyler BoulevardMentor, OH. 44060 USA Phone: (440) 975-8802Fax: (440) 975-1364 Web: www.monode.com Email: [email protected] 6 high positions, 6 low positions. AC-DC outputwith 6-position switch - voltage ranging from 5v progressively thru 8v, 11v, 14v, 17v, to 20v; (on low setting). On high setting, the voltage double progressively to a maximum 40 volts. Can be used as a hand marking unit or in conjunction with the AM10A Semi-Automatic.NOTE: For deep etching use hand pads mountedwith DE Monopads shown on page 7. >

Open the catalog to page 3
