Data Matrix Reader
2Pages

Catalog excerpts

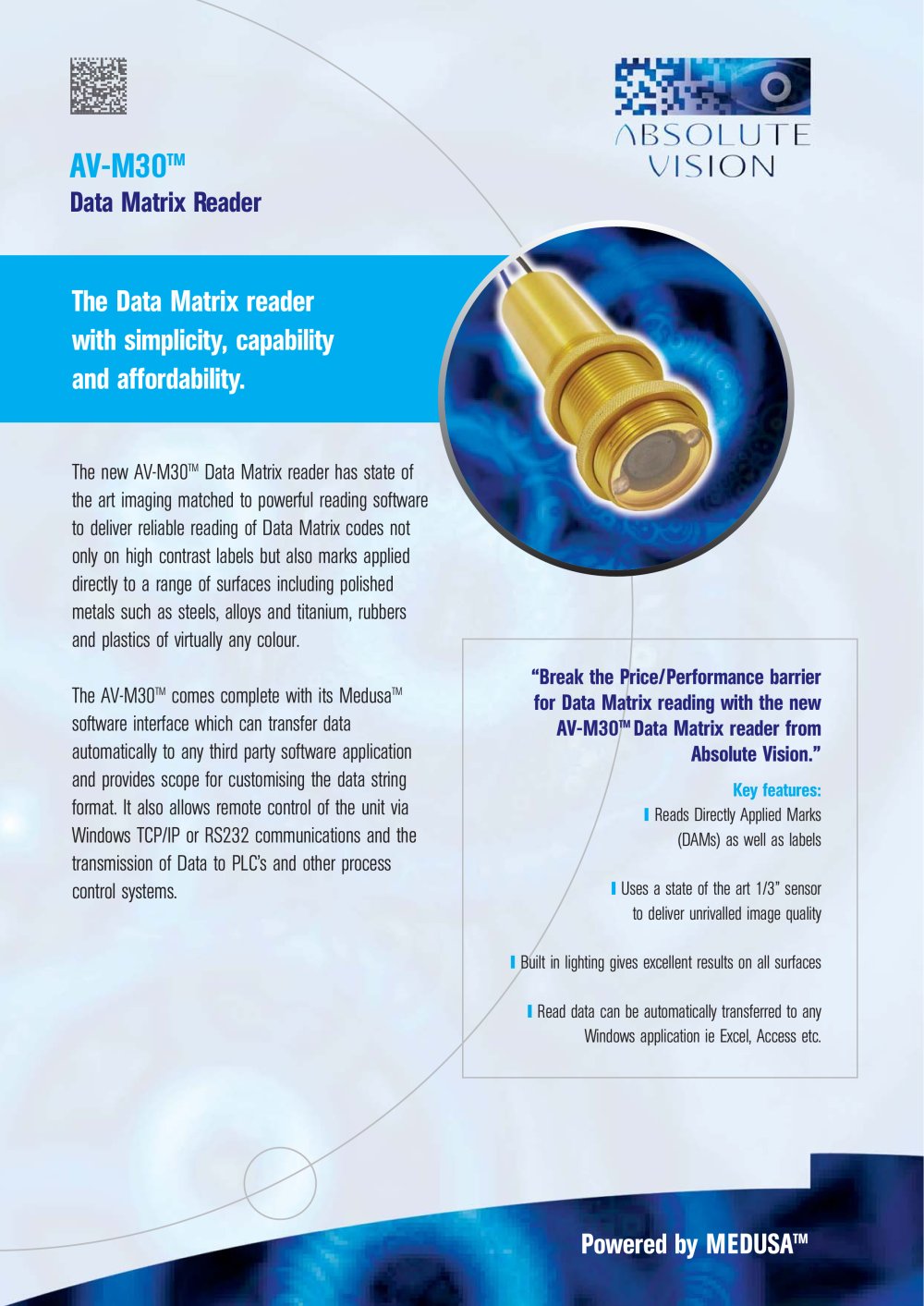

Break the Price/Performance barrier for Data Matrix reading with the new AV-M30 The new AV-M30 > TM Data Matrix reader has state ofthe art imaging matched to powerful reading software to deliver reliable reading of Data Matrix codes not only on high contrast labels but also marks applied directly to a range of surfaces including polished metals such as steels, alloys and titanium, rubbers and plastics of virtually any colour. The AV-M30 > TM comes complete with its Medusa > TM software interface which can transfer dataautomatically to any third party software application and provides scope for customising the data string format. It also allows remote control of the unit via Windows TCP/IP or RS232 communications and the transmission of Data to PLCӒs and other process control systems. > TM Data Matrix reader fromAbsolute Vision." > Key features: Reads Directly Applied Marks (DAMs) as well as labels Uses a state of the art 1/3 sensor to deliver unrivalled image quality Built in lighting gives excellent results on all surfaces Read data can be automatically transferred to any Windows application ie Excel, Access etc.

Open the catalog to page 1

@ absolutevision.co.ukwww.absolutevision.co.uk Absolute Vision Ltd The Kennels Packington Park Meriden Warwickshire CV7 7HE United Kingdomtel:0845 130 1880fax: 0845 130 1886e-mail: sales CODE FormatsMinimum Cell SizeMarking TypesSurface TypesField of View SensorLight SourceCamera/Light Unit Size Enclosure Type Weight Cable Length Signal Interface User Interface Operating System Data Matrix, ISO 16022, Square and Rectangular Format, ECC 200, 0 140White on Black and Black on White Preset to order Printed Labels and Directly Applied Marks (DAM) Including: Dot Peen, Ink Jet, Laser,...

Open the catalog to page 2
