T3 Eddy Current Probe and Driver

T3 Eddy Current Probe and Driver
1 / 2Pages

Catalog excerpts

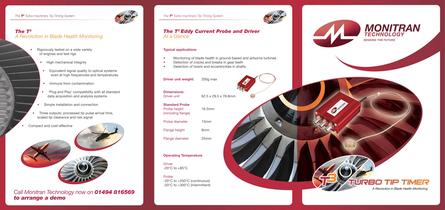

The T3 Turbo-machinery Tip-Timing System The T3 Turbo-machinery Tip-Timing System The T3 A Revolution in Blade Health Monitoring • Rigorously tested on a wide variety of engines and test rigs • High mechanical integrity • Equivalent signal quality to optical systems even at high frequencies and temperatures • Immune from contamination • ‘Plug and Play’ compatibility with all standard data acquisition and analysis systems • Simple installation and connection • Three outputs: processed tip pulse arrival time, scaled tip clearance and raw signal • Compact and cost-effective The T3 Eddy Current Probe and Driver At a Glance Typical applications • Monitoring of blade health in ground-based and airborne turbines • Detection of cracks and breaks in gear teeth • Detection of twists and eccentricities in shafts Driver unit weight: 200g max Dimensions: Driver unit 62.5 x 29.5 x 78.8mm Standard Probe Probe height 16.5mm (including flange) Probe diameter 13mm Flange height 8mm Flange diameter 25mm Operating Temperature Driver -20°C to +85°C Probe -20°C to +250°C (continuous) -20°C to +300°C (intermittent) Call Monitran Technology now on 01494 816569 to arrange a demo

Open the catalog to page 1

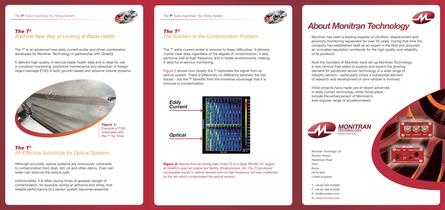

The T3 Turbo-machinery Tip-Timing System The T3 Turbo-machinery Tip-Timing System The T3 A Whole New Way of Looking at Blade Health The T3 is an advanced new eddy current probe and driver combination developed by Monitran Technology in partnership with QinetiQ. It delivers high quality, in-service blade health data and is ideal for use in condition monitoring, predictive maintenance and d etection of foreign object damage (FOD) in both ground-based and airborne turbine systems. The T3 An Effective Substitute for Optical Systems Although accurate, optical systems are notoriously vulnerable...

Open the catalog to page 2
