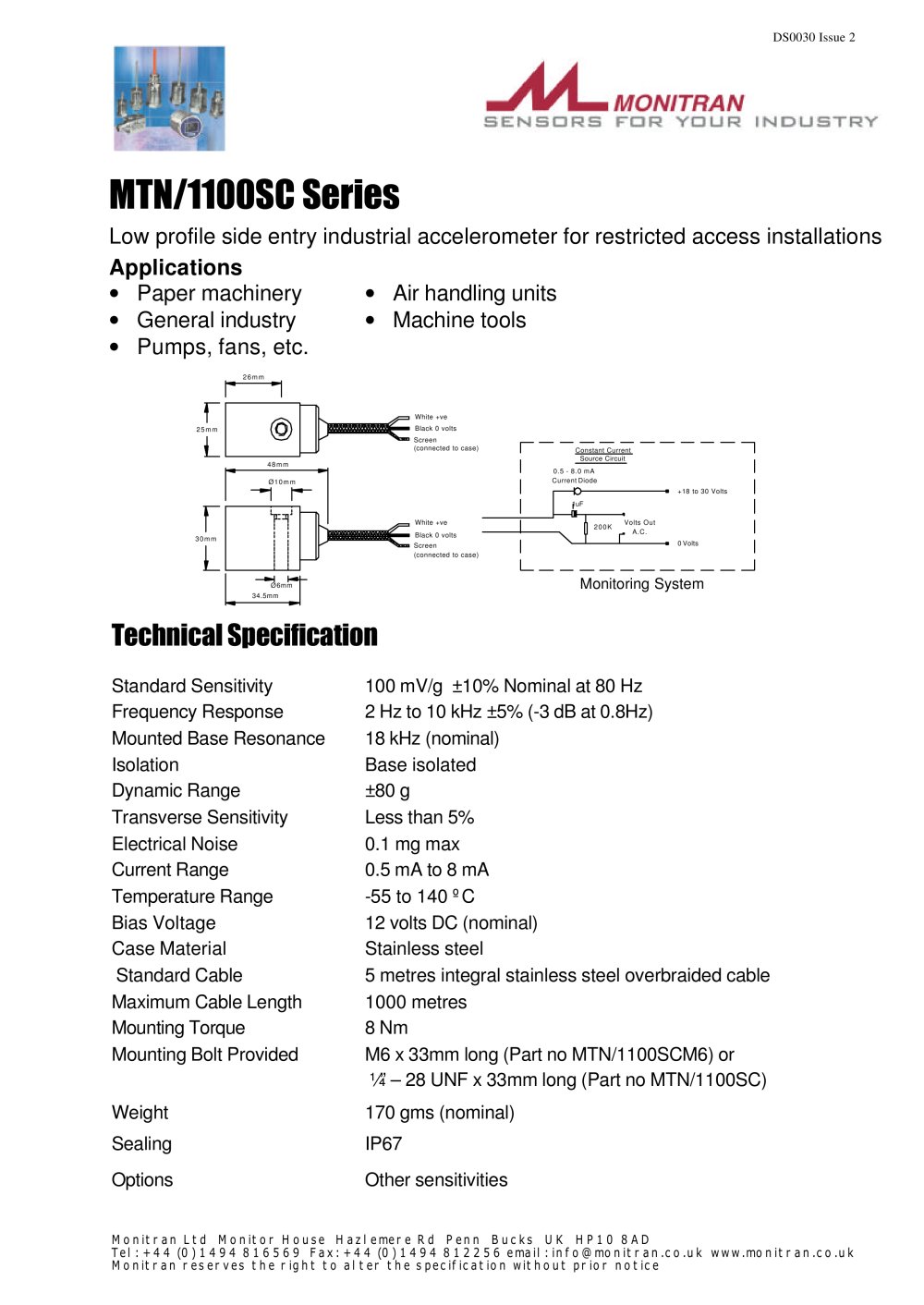

DS0030 Issue 2 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 (0) 1494 812256 email: [email protected] www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/1100SC Series Low profile side entry industrial accelerometer for restricted access installations Applications · Paper machinery · General industry · Pumps, fans, etc. · Air handling units · Machine tools 30mm Ø6mm 34.5mm 48mm Ø10mm 26mm 25mm Black 0 volts Screen (connected to case) Black 0 volts Screen (connected to case) White +ve White +ve Constant Current Source Circuit 0.5 - 8.0 mA Current Diode 1uF 200K 0 Volts +18 to 30 Volts Volts Out A.C. Monitoring System Technical Specification Standard Sensitivity 100 mV/g ±10% Nominal at 80 Hz Frequency Response 2 Hz to 10 kHz ±5% (-3 dB at 0.8Hz) Mounted Base Resonance 18 kHz (nominal) Isolation Base isolated Dynamic Range ±80 g Transverse Sensitivity Less than 5% Electrical Noise 0.1 mg max Current Range 0.5 mA to 8 mA Temperature Range -55 to 140 ºC Bias Voltage 12 volts DC (nominal) Case Material Stainless steel Standard Cable 5 metres integral stainless steel overbraided cable Maximum Cable Length 1P0T0F0E m etres Mounting Torque 8 Nm Mounting Bolt Provided M6 x 33mm long (Part no MTN/1100SCM6) or ¼” – 28 UNF x 33mm long (Part no MTN/1100SC) Weight 170 gms (nominal) Sealing IP67 Options Other sensitivities
