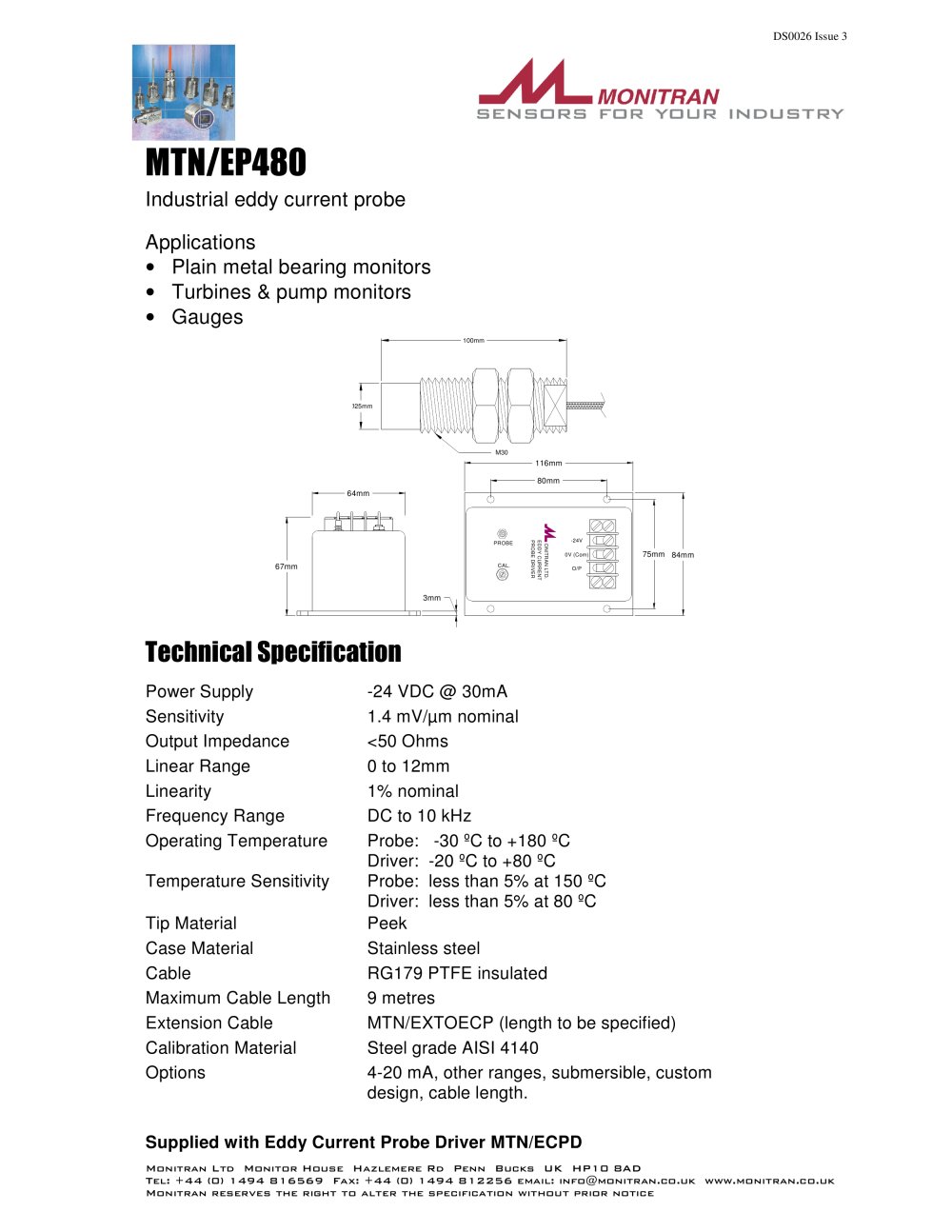

DS0026 Issue 3 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 (0) 1494 812256 email: [email protected] www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/EP480 Industrial eddy current probe Applications • Plain metal bearing monitors • Turbines & pump monitors • Gauges 100mm Ø25mm M30 3mm 67mm 64mm 75mm 84mm 116mm 80mm PROBE CAL. 0V (Com) O/P -24V ONITRAN LTD. EDDY CURRENT PROBE DRIVER Technical Specification Power Supply -24 VDC @ 30mA Sensitivity 1.4 mV/ìm nominal Output Impedance <50 Ohms Linear Range 0 to 12mm Linearity 1% nominal Frequency Range DC to 10 kHz Operating Temperature Probe: -30 ºC to +180 ºC Driver: -20 ºC to +80 ºC Temperature Sensitivity Probe: less than 5% at 150 ºC Driver: less than 5% at 80 ºC Tip Material Peek Case Material Stainless steel Cable RG179 PTFE insulated Maximum Cable Length 9 metres Extension Cable MTN/EXTOECP (length to be specified) Calibration Material Steel grade AISI 4140 Options 4-20 mA, other ranges, submersible, custom design, cable length. Supplied with Eddy Current Probe Driver MTN/ECPD
