Eddy Current Probe MTN/DSPD-40

Eddy Current Probe MTN/DSPD-40
1 / 2Pages

Catalog excerpts

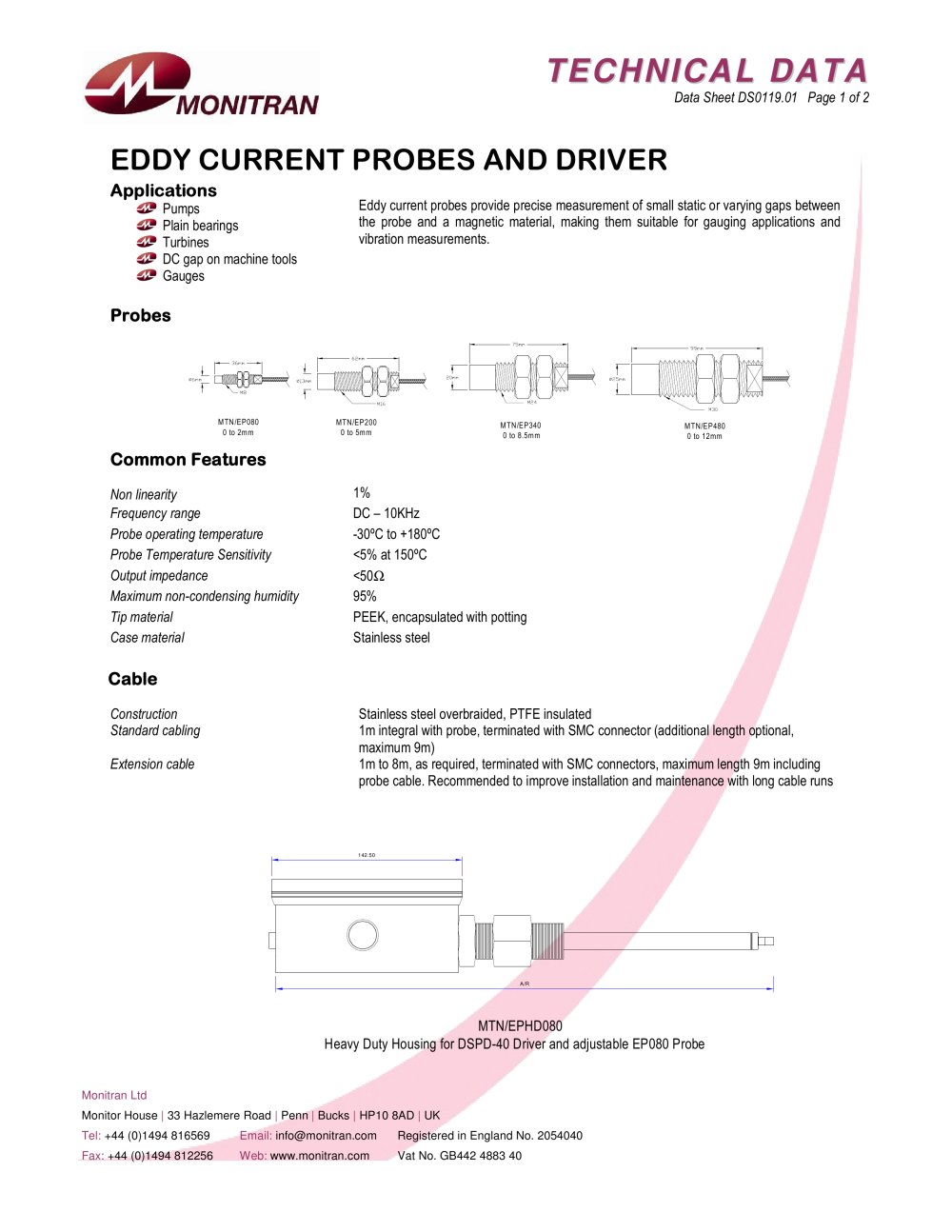

TECHNIICAL DATA Data Sheet DS0119.01 Page 1 of 2 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 EDDY CURRENT PROBES AND DRIVER Applications Pumps Plain bearings Turbines DC gap on machine tools Gauges Eddy current probes provide precise measurement of small static or varying gaps between the probe and a magnetic material, making them suitable for gauging applications and vibration measurements. Probes MTN/EP200 0 to 5mm MTN/EP080 0 to 2mm MTN/EP340 0 to 8.5mm MTN/EP480 0 to 12mm Common Features Non linearity 1% Frequency range DC – 10KHz Probe operating temperature -30ºC to +180ºC Probe Temperature Sensitivity <5% at 150ºC Output impedance <50W Maximum non-condensing humidity 95% Tip material PEEK, encapsulated with potting Case material Stainless steel Cable Construction Stainless steel overbraided, PTFE insulated Standard cabling 1m integral with probe, terminated with SMC connector (additional length optional, maximum 9m) Extension cable 1m to 8m, as required, terminated with SMC connectors, maximum length 9m including probe cable. Recommended to improve installation and maintenance with long cable runs MTN/EPHD080 Heavy Duty Housing for DSPD-40 Driver and adjustable EP080 Probe A/R 142.50

Open the catalog to page 1

TECHNIICAL DATA Data Sheet DS0119.01 Page 2 of 2 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 We reserve the right to alter specifications without prior notice DSPD-40 Driver A versatile digital processor operating with any of the eddy current probes overleaf and offering Dual calibration tables for standard or specific target materials Probes of the same type and cable length can be exchanged without...

Open the catalog to page 2
