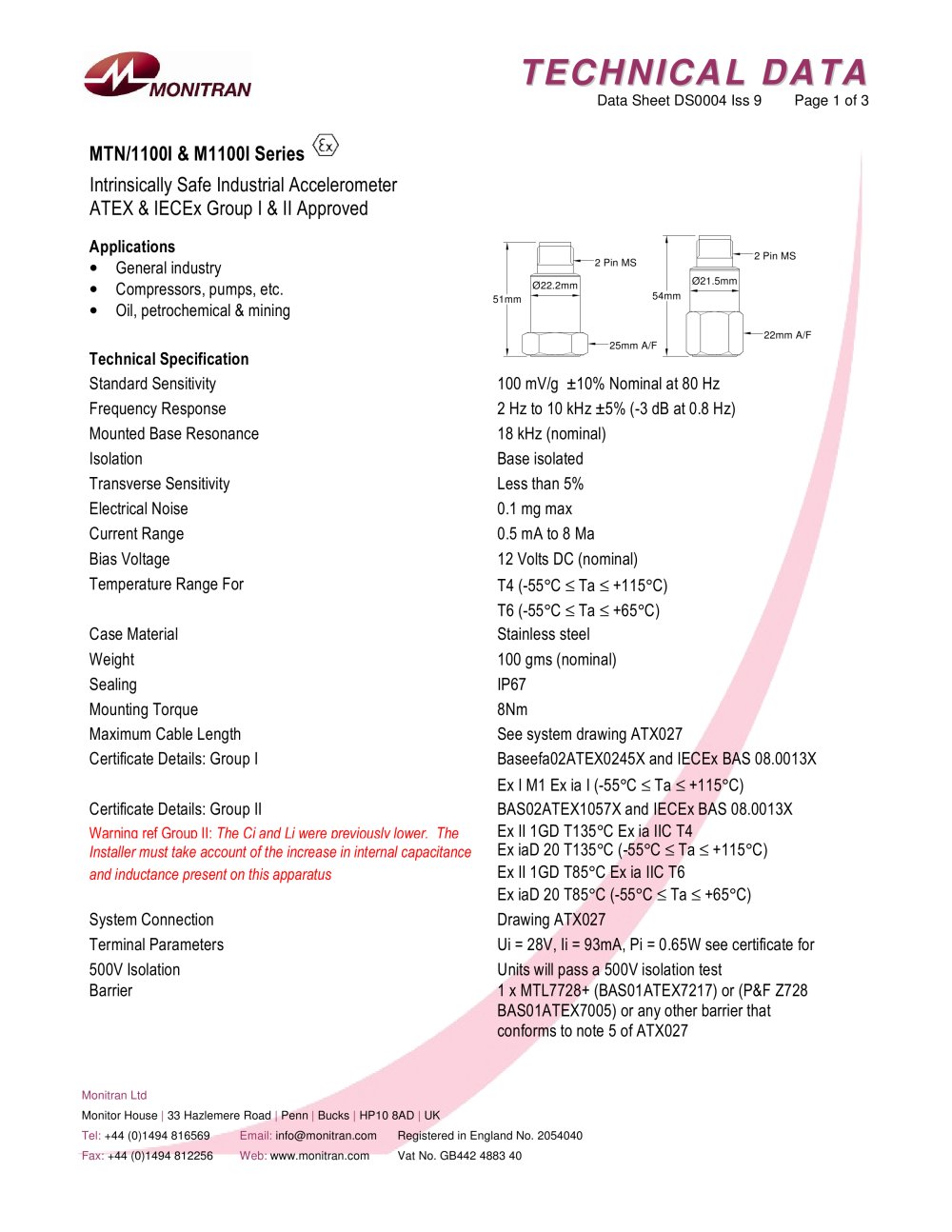

TECHNIICAL DATA Data Sheet DS0004 Iss 9 Page 1 of 3 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 MTN/1100I & M1100I Series Intrinsically Safe Industrial Accelerometer ATEX & IECEx Group I & II Approved Applications • General industry • Compressors, pumps, etc. • Oil, petrochemical & mining Technical Specification Standard Sensitivity 100 mV/g ±10% Nominal at 80 Hz Frequency Response 2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz) Mounted Base Resonance 18 kHz (nominal) Isolation Base isolated Transverse Sensitivity Less than 5% Electrical Noise 0.1 mg max Current Range 0.5 mA to 8 Ma Bias Voltage 12 Volts DC (nominal) Temperature Range For T4 (-55°C £ Ta £ +115°C) T6 (-55°C £ Ta £ +65°C) Case Material Stainless steel Weight 100 gms (nominal) Sealing IP67 Mounting Torque 8Nm Maximum Cable Length See system drawing ATX027 Certificate Details: Group I Baseefa02ATEX0245X and IECEx BAS 08.0013X Ex I M1 Ex ia I (-55°C £ Ta £ +115°C) Certificate Details: Group II BAS02ATEX1057X and IECEx BAS 08.0013X Warning ref Group II: The Ci and Li were previously lower. The Ex II 1GD T135°C Ex ia IIC T4 Installer must take account of the increase in internal capacitance Ex iaD 20 T135°C (-55°C £ Ta £ +115°C) and inductance present on this apparatus Ex II 1GD T85°C Ex ia IIC T6 Ex iaD 20 T85°C (-55°C £ Ta £ +65°C) System Connection Drawing ATX027 Terminal Parameters Ui = 28V, Ii = 93mA, Pi = 0.65W see certificate for 500V Isolation UCni &its L wi ill pass a 500V isolation test Barrier 1 x MTL7728+ (BAS01ATEX7217) or (P&F Z728 BAS01ATEX7005) or any other barrier that conforms to note 5 of ATX027 51mm Ø22.2mm Ø21.5mm 54mm 22mm A/F 25mm A/F 2 Pin MS 2 Pin MS

Open the catalog to page 1

TECHNIICAL DATA Data Sheet DS0004 Iss 9 Page 2 of 3 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 We reserve the right to alter specifications without prior notice Mounting and Sensitivity ORDER CODE PART No MOUNTING xx = OPTIONAL SENSITIVITY RANGE AVAILABLE (+/- 10%) MTN/1100I-xx MTN/1100IQ-xx ¼” UNF FEMALE QUICK FIT FEMALE FOR OTHER MOUNTINGS SEE BELOW. 10 mV/g 25 mV/g 30 mV/g 50 mV/g Options Mating...

Open the catalog to page 2

TECHNIICAL DATA Data Sheet DS0004 Iss 9 Page 3 of 3 Monitran Ltd Monitor House | 33 Hazlemere Road | Penn | Bucks | HP10 8AD | UK Tel: +44 (0)1494 816569 Email: info@monitran.com Registered in England No. 2054040 Fax: +44 (0)1494 812256 Web: www.monitran.com Vat No. GB442 4883 40 We reserve the right to alter specifications without prior notice Other Adapters Mounting Adapters Isolation Product Code From To Product Code From To MS005 Q/F Male 1/4" - 28 UNF Female MS034 1/4" - 28 UNF Male 1/4" - 28 UNF Female MS007 Q/F Male 10 - 32 UNF Female MS093 Q/F Male M8 Male MS008 Q/F Male M8 Female...
