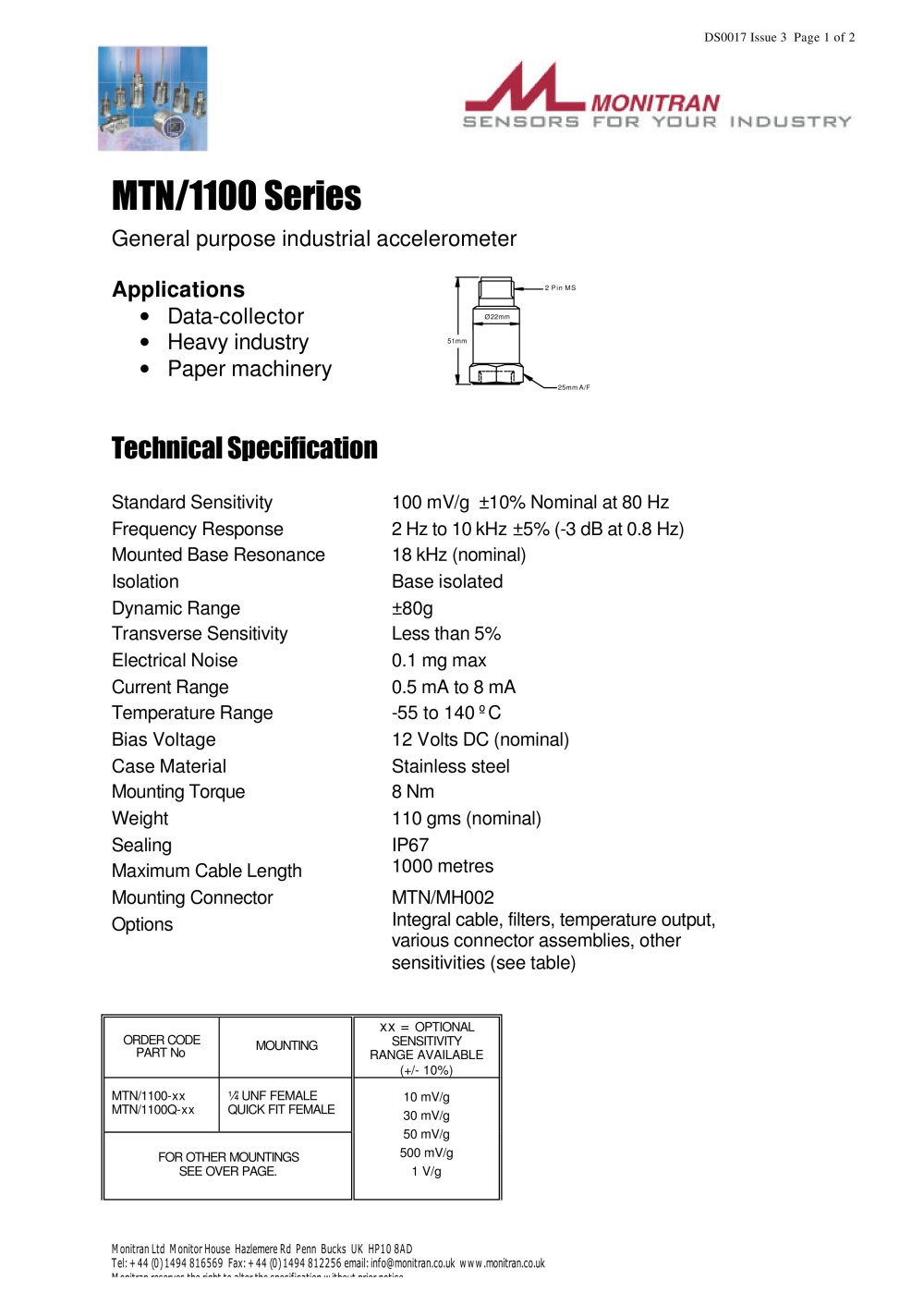

DS0017 Issue 3 Page 1 of 2 Monitran Ltd Monitor House Hazlemere Rd Penn Bucks UK HP10 8AD Tel: +44 (0) 1494 816569 Fax: +44 (0) 1494 812256 email: [email protected] www.monitran.co.uk Monitran reserves the right to alter the specification without prior notice MTN/1100 Series General purpose industrial accelerometer Applications · Data-collector · Heavy industry · Paper machinery 25mm A/F 51mm Ø22mm 2 Pin MS Technical Specification Standard Sensitivity 100 mV/g ±10% Nominal at 80 Hz Frequency Response 2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz) Mounted Base Resonance 18 kHz (nominal) Isolation Base isolated Dynamic Range ±80g Transverse Sensitivity Less than 5% Electrical Noise 0.1 mg max Current Range 0.5 mA to 8 mA Temperature Range -55 to 140 ºC Bias Voltage 12 Volts DC (nominal) Case Material Stainless steel Mounting Torque 8 Nm Weight 110 gms (nominal) Sealing IP67 Maximum Cable Length 1000 metres Mounting Connector MTN/MH002 Options Integral cable, filters, temperature output, various connector assemblies, other sensitivities (see table) sensitivities ORDER CODE PART No MOUNTING xx = OPTIONAL SENSITIVITY RANGE AVAILABLE (+/- 10%) MTN/1100-xx MTN/1100Q-xx ¼” UNF FEMALE QUICK FIT FEMALE FOR OTHER MOUNTINGS SEE OVER PAGE. 10 mV/g 30 mV/g 50 mV/g 500 mV/g 1 V/g

DS0017 Issue 3 Page 2 of 2 Mounting Adapters and Studs Studs and Grub Screws Quick Fit Adapters Male Studs Quick Fit (Q/F) Product Code From To Product Code From To MS036 1/4" - 28 UNF M6 MS001 Q/F Male Glue base MS039 1/4" - 28 UNF 10 - 32 UNF MS002 Q/F Male M8 Male MS067 1/4" - 28 UNF M8 MS003 Q/F Male M10 Male MS068 1/4" - 28 UNF 1/4" - 28 UNF MS004 Q/F Male 1/4" - 28 UNF Male MS124 1/4" - 28 UNF M10 MS006 Q/F Male M6 Male MS132 1/4" - 28 UNF M12 Other Adapters System Connection 0.5 - 8.0 mA Current Diode Pin B Pin A +18 to 30 Volts Volts Out A.C. 1uF 200K 0 Volts Constant Current Source Circuit...
