Double Track Linear Guide
Product catalog summary

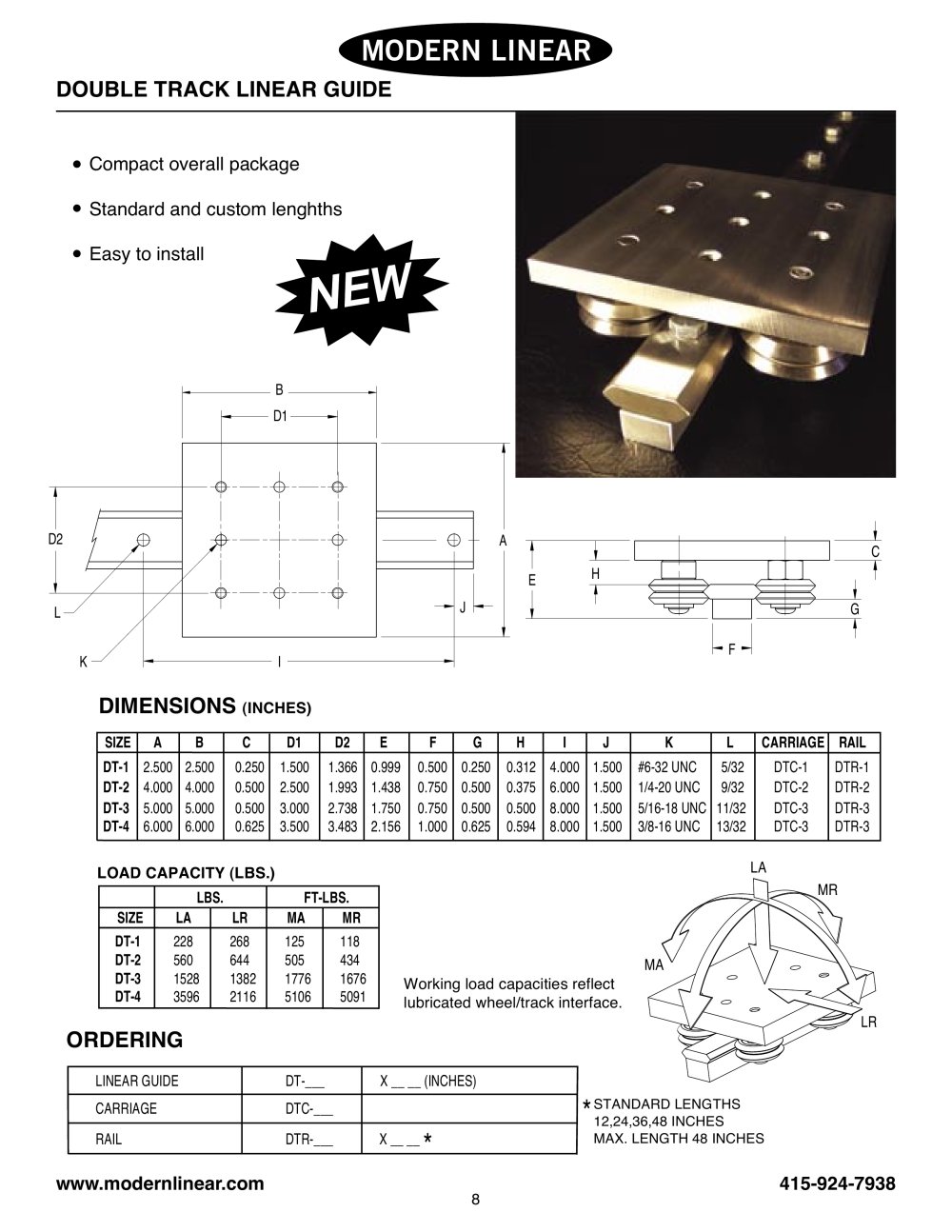

Double Track Linear Guide Specifications
- Dimensions: The document provides detailed dimensions for different sizes of double track linear guides, including DT-1, DT-2, DT-3, and DT-4. Key dimensions such as A, B, C, D1, D2, E, F, G, H, I, J, K, and L are specified in inches.
- Ordering Information: The ordering format is specified as DT-___ X __ __ (INCHES) for linear guides, DTC-___ for carriages, and DTR-___ X __ __ for rails. Standard lengths available are 12, 24, 36, and 48 inches, with a maximum length of 48 inches.
- Load Capacity: The document outlines the working load capacities for each size, reflecting a lubricated wheel/track interface. Capacities are given in pounds (LBS.) and foot-pounds (FT-LBS.) for both axial (LA, MA) and radial (LR, MR) loads.
- Features: The linear guides are described as having a compact overall package, available in standard and custom lengths, and easy to install.
