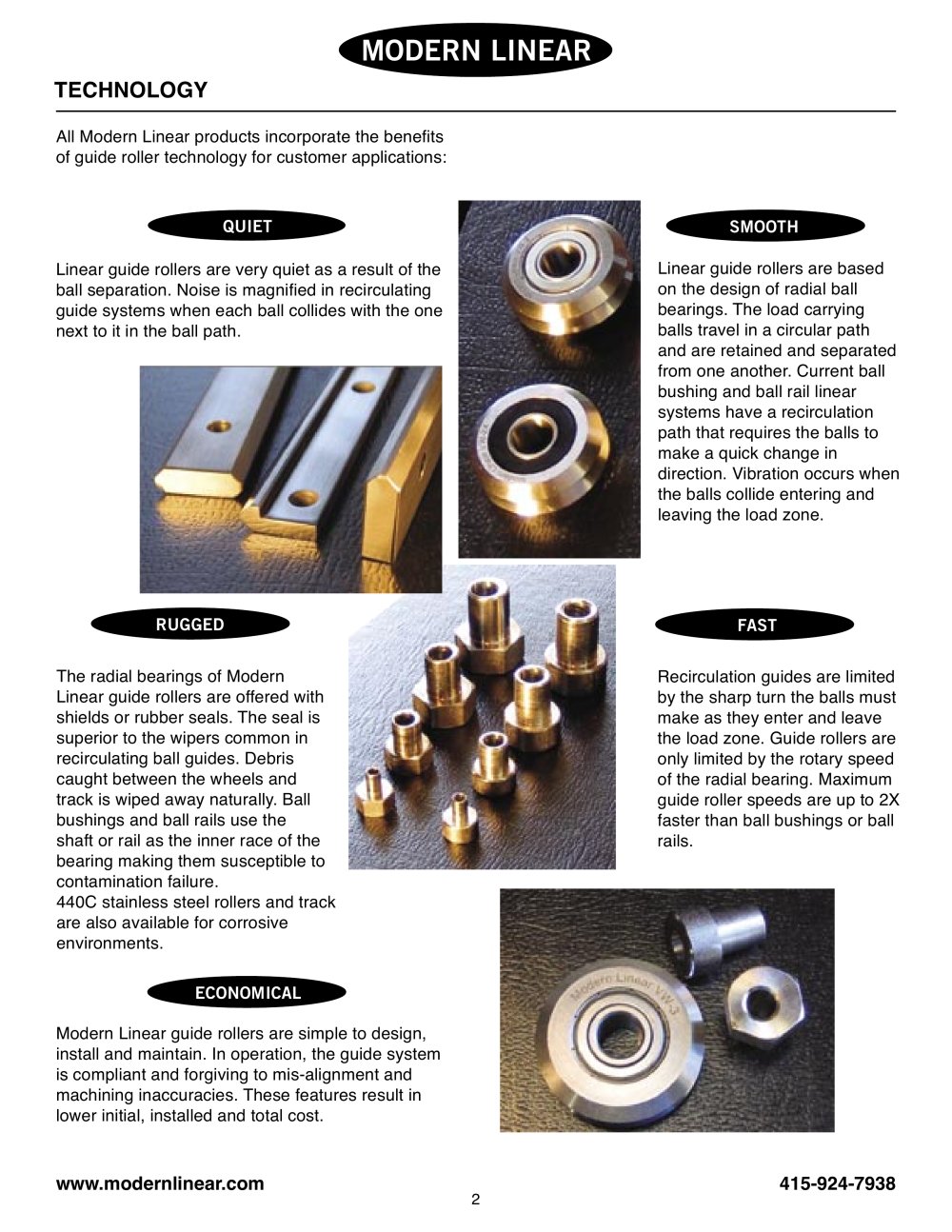

Technology Overview

Modern Linear guide rollers utilize radial ball bearing design principles, offering quieter operation compared to recirculating ball guides due to ball separation that prevents collisions. Unlike recirculating systems where balls change direction sharply causing vibration, guide rollers are limited only by the rotary speed of the bearing, achieving speeds up to twice that of ball bushings or ball rails. Bearings come with shields or superior rubber seals that naturally wipe debris, enhancing durability and reducing contamination risks. Stainless steel (440C) options are available for corrosive environments. The system is simple to design, install, and maintain, with compliance to misalignment and machining inaccuracies, resulting in lower overall costs.

Guide Roller Components

• Track: Available in single and double edge options, made from AISI 1045 or 420 stainless steel, with case hardened V-edge (49-52 RC). Tracks can be drilled or undrilled and mounted by bolting or welding.
• Guide Rollers: Made from 52100 or 440 stainless steel with superfinished raceways for smoothness and low noise. Available sealed or shielded and designed as drop-in replacements.
• Bushings: Adjustable (eccentric) bushings with knurled surfaces for secure positioning and stationary (concentric) bushings for load carrying. Made from carbon steel with nickel plating for corrosion resistance.
• Track Assembly: Custom integration into linear slides, mountable on any square edge.

Specifications and Dimensions

Guide rollers are pre-lubricated with ABEC-5 angular contact ball bearings and rated for 2 million inches of travel life. Working temperature ranges from -30°C to 100°C, with options for extended ranges. Load capacities vary by size, with maximum RPMs ranging from 750 to 2400 depending on model. Detailed dimensional tables specify outer diameter, inner diameter, width, and other critical parameters for rollers, bushings, and tracks.

Track and Double Track Details

Tracks are manufactured from AISI 1045 steel with hardened V-edges and tight tolerances on length and hole spacing. Available in undrilled or predrilled forms, with optional counterbores and riser blocks. Double track linear guides feature a compact design with standard and custom lengths up to 48 inches, offering high load capacities and easy installation.

Linear Guide Systems

• DT Series: Incorporates a patent-pending compliant rail feature that automatically compensates for machining inaccuracies and misalignment, ideal for transport applications. Available in rigid rail versions.
• VT Series (Vector Trio): Features a 3-roller in-line carriage design with compliant rail technology, compact size, and no need for carriage adjustment. Standard lengths up to 120 inches.
• VQ Series (Vector Quad): Offers a 4-roller carriage for good load capacity in all directions, low profile, and compliant rail feature. Standard lengths up to 120 inches.

Load Calculations and Mounting

Load calculations consider applied loads, moments, and lubrication conditions with factors for light, normal, and harsh environments. The fixed bushing carries the major load, while the adjustable bushing is preloaded to allow smooth roller rotation without excessive wear. Suggested lubricants include Mobil Vactra #2 Way Oil and Mobil Polyrex EP 2 Extreme Pressure Grease. Fasteners recommended are SAE series N flat and lock washers. Mounting tolerances and adjustment procedures are detailed to ensure optimal performance.

Applications and Benefits

Guide rollers provide smooth, quiet, and durable linear motion solutions with minimal maintenance. Their sealed and lubricated design resists contamination and shock loads, making them suitable for diverse industries including medical, electronics, semiconductor wafer transport, packaging, wood/construction, and commercial machinery. The compliant system design simplifies installation and improves operational smoothness, especially on lightweight frames.
