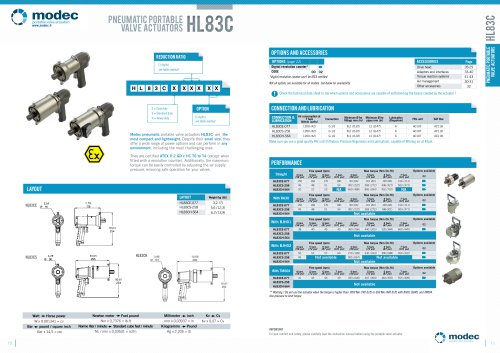

portable valve actuators www.modec.fr PNEUMATIC PORTABLE VALVE ACTUATORS (3 digits) see table overleaf Modec pneumatic portable valve actuators HL83C are the most compact and lightweight. Despite their small size, they offer a wide range of power options and can perform in any environment, including the most challenging ones. They are certified ATEX II 2 GD c IIC T6 to T4 (except when fitted with a revolution counter). Additionally, the maximum torque can be easily controlled by adjusting the air supply pressure, ensuring safe operation for your valves. OPTIONS AND ACCESSORIES OPTIONS (page 22) *digital revolution counter can't be A TEX certified. Not all options are available for all models. See below for availability. Check the technical data sheet to see which options and accessories are capable of withstanding the torque created by the actuator ! CONNECTION AND LUBRICATION CONNECTION & LUBRICATION Make sure you use a good quality FRL unit (Filtration, Pressure Regulation and Lubrication), capable of filtering air at 40pm. PERFORMANCE LAYOUT LAYOUT ** Warning! Do not use the actuator when the torque is higher than 1000 Nm (740 lb.ft) or 600 Nm (440 lb.ft) with RA30, BJH01 and TM004. Use pressure to limit torque Watt -► Horse power Newton meter -► Foot pound Millimeter -► inch Kv -► Cv Bar -► pound / square inch Normo liter / minute -► Standard cube feet / minute Kilogramme -► Pound For your comfort and safety, please carefully read the instruction manual before using the portable valve actuator. modec portable valve actuators
