Magnetic Disc Couplings

Product catalog summary

Introduction
This document provides technical details on Magnetic Disc Couplings, focusing on contactless torque transmission through various claddings. It highlights the design, applications, and technical specifications of these couplings.

Specifications
Magnetic Disc Couplings consist of two opposing discs equipped with powerful rare earth magnets. The torque applied to one disc is transferred through an air gap to the other disc. The design allows for angular misalignment up to 3° and parallel misalignment up to 6 mm while still transmitting nearly full rotational torque. The standard working temperature range is from -40 to +140°C, with special executions up to +280°C.

Applications
The contactless transmission of torque is suitable for various applications, including:

Power transmission for pumps, agitators, and compressors in closed liquid containers.
Power transmission for ventilators in closed containers with gases or steam.
Power transmission for underwater robot arms.
Transmission of display operations on round scales in different media.
Avoidance of motor vibration transfers.
Uncoupling of load influences during weighing processes.

Technical Data
All Magnetic Disc Couplings are made of stainless steel (Material: 1.4005 / 1.4305, with 1.4401 available on request). The document includes a table of torque processes and dimensions, indicating the maximum speed and weight per hub for different types (MTD-0.2 to MTD-50). Types MTD-0.2 to MTD-12 are in stock, while MTD-20 to MTD-50 are manufactured on request.

Conclusion
Magnetic Disc Couplings offer a versatile and efficient solution for contactless torque transmission in various industrial applications. Their ability to accommodate misalignments and operate under a wide range of temperatures makes them suitable for diverse environments.

Catalog excerpts

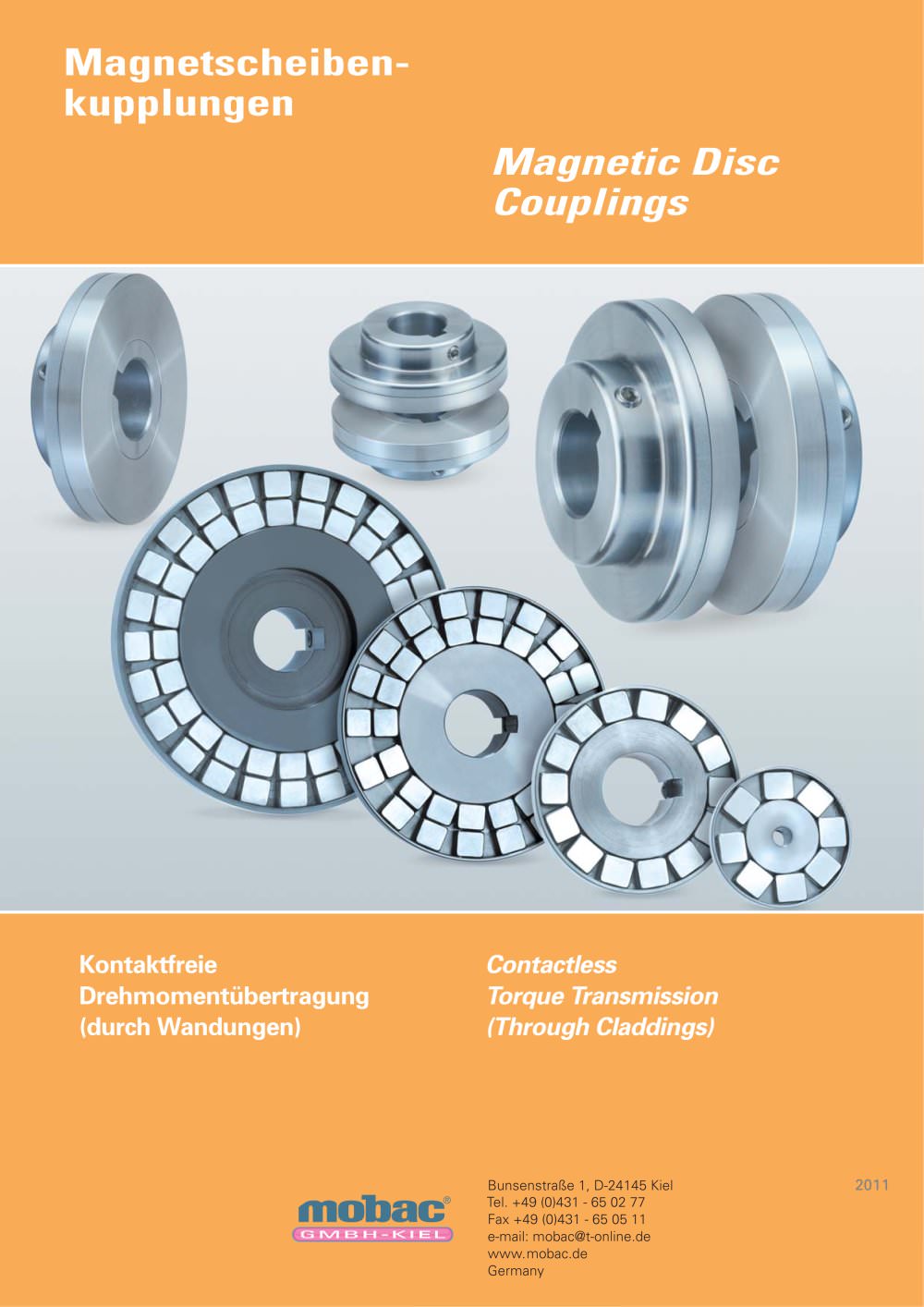

Magnetscheibenkupplungen Magnetic Disc Couplings Kontaktfreie Drehmomentübertragung (durch Wandungen) Contactless Torque Transmission (Through Claddings) Bunsenstraße 1, D-24145 Kiel Tel. +49 (0)431 - 65 02 77 Fax +49 (0)431 - 65 05 11 e-mail: [email protected] www.mobac.de Germany 2011

Open the catalog to page 1

▼ Standard-Arbeitstemperaturbereich -40 bis + 140°C (Sonderausführung bis +280°C) ▼ Abkopplung von Gewichtseinflüssen bei Wiegevorgängen ▼ Vermeidung von Motorvibrationsübertragungen ▼ Übertragung von Anzeigevorgängen auf Rundskalen in einem anderen Medium Power transmission for underwater robot-handling Transmission of round scale displays into a different medium ▼ ▼ Kraftübertragung zu Unterwasser-Roboterarmen Power transmission for ventilators in closed containers with gas, steam or similar Avoidance of motor vibration transfers ▼ ▼ Antrieb von Ventilatoren in geschlossenen Behältern mit Gasen...

Open the catalog to page 2

Maße und Daten Dimensions and Data Technische Daten /Technical Data Abmessungen / Dimensions (mm) Typ Type Max. Geschw. max. speed (rpm) Gewicht pro Hälfte weight per hub (kg) A B MTD-0.2 42000 0,05 26,9 20,5 MTD-0.3 26000 0,1 43,7 20,5 MTD-0.6 23000 0,15 50,0 28,4 C D E G H K 15,9 s. Tabelle Bohrungen see Bore Code Chart 9,4 15,0 15,0 15,0 8,6 nicht verfügbar 15,0 19,1 not available 25,4 siehe Tabelle “Drehmomentverläufe” Seite 3 8,6 25,4 MTD-1 19000 0,3 59,9 38,1 MTD-2 15500 0,6 72,6 50,8 19,1 10,2 MTD-4 12000 1,0 93,5 69,9 34,93 25,4 25,4 MTD-8 10500 1,2 106,7 69,9 34,93 25,4 25,4 MTD-12 9000...

Open the catalog to page 4
