Product catalog summary
Overview: The ERP Series – Eco Recycling Plant by Mizar is an energy-efficient solution designed for high recovery rates and consistent material purity in cable recycling. It features a compact and scalable design, making it suitable for various recycling operations.
Key Components: The system is centered around the FGR Fine Granulator and DES Densimetric Separator, which ensure complete copper liberation and precise separation of metal and plastic fractions, even with fine and mixed cable materials.
Efficiency and Design: The ERP Series is optimized for low energy consumption and stable output quality through controlled air circulation and an efficient drive system. Its compact structure allows for standalone operation or integration into larger recycling lines.
Operation and Control: The system is operated via a PLC-controlled touch-screen interface, allowing real-time monitoring and reducing operator dependency. All components are CE-certified and constructed with industrial-grade materials for durability and low maintenance.
Model Variants: The ERP Series is available in four models: S, M, L, and XL, with capacities ranging up to 2,000 kg/h. Each model varies in granulator power, rotor length, blade quantity, separator power, and table area.
Technical Specifications:
  • Granulator Power: Ranges from 15 kW (20.1 HP) to 75 kW (101.9 HP)
  • Rotor Diameter: 350 mm (13.7")
  • Rotor Length: Varies from 400 mm (15.7") to 1,600 mm (62.9")
  • Blade Quantity: Increases with model size
  • Separator Power: Ranges from 15 kW (20.1 HP) to 27 kW (36.2 HP)
  • Table Area: Varies from 0.85 m² (9.1 ft²) to 3.3 m² (35.5 ft²)
  • Approximate Capacity: Ranges from 400 kg/h (900 lb/h) to 2,000 kg/h (4,400 lb/h)
Performance Note: The capacities provided are approximate and may vary based on cable type, operator use, and installation conditions. No guarantee of exact capacity is implied.
See more

Catalog excerpts

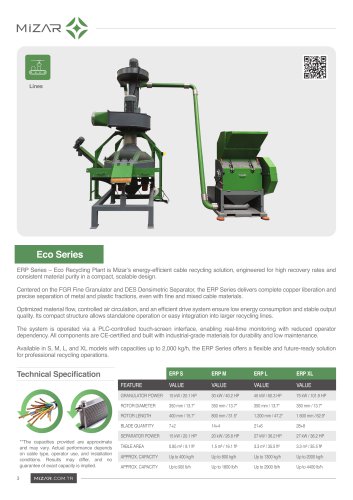

erp-1

Eco Series ERP Series - Eco Recycling Plant is Mizar’s energy-efficient cable recycling solution, engineered for high recovery rates and consistent material purity in a compact, scalable design. Centered on the FGR Fine Granulator and DES Densimetric Separator, the ERP Series delivers complete copper liberation and precise separation of metal and plastic fractions, even with fine and mixed cable materials. Optimized material flow, controlled air circulation, and an efficient drive system ensure low energy consumption and stable output quality. Its compact structure allows standalone operation or easy integration into larger recycling lines. The system is operated via a PLC-controlled touch-screen interface, enabling real-time monitoring with reduced operator dependency. All components are CE-certified and built with industrial-grade materials for durability and low maintenance. Available in S, M, L, and XL models with capacities up to 2,000 kg/h, the ERP Series offers a flexible and future-ready solution for professional recycling operations.

 Open the catalog to page 1
