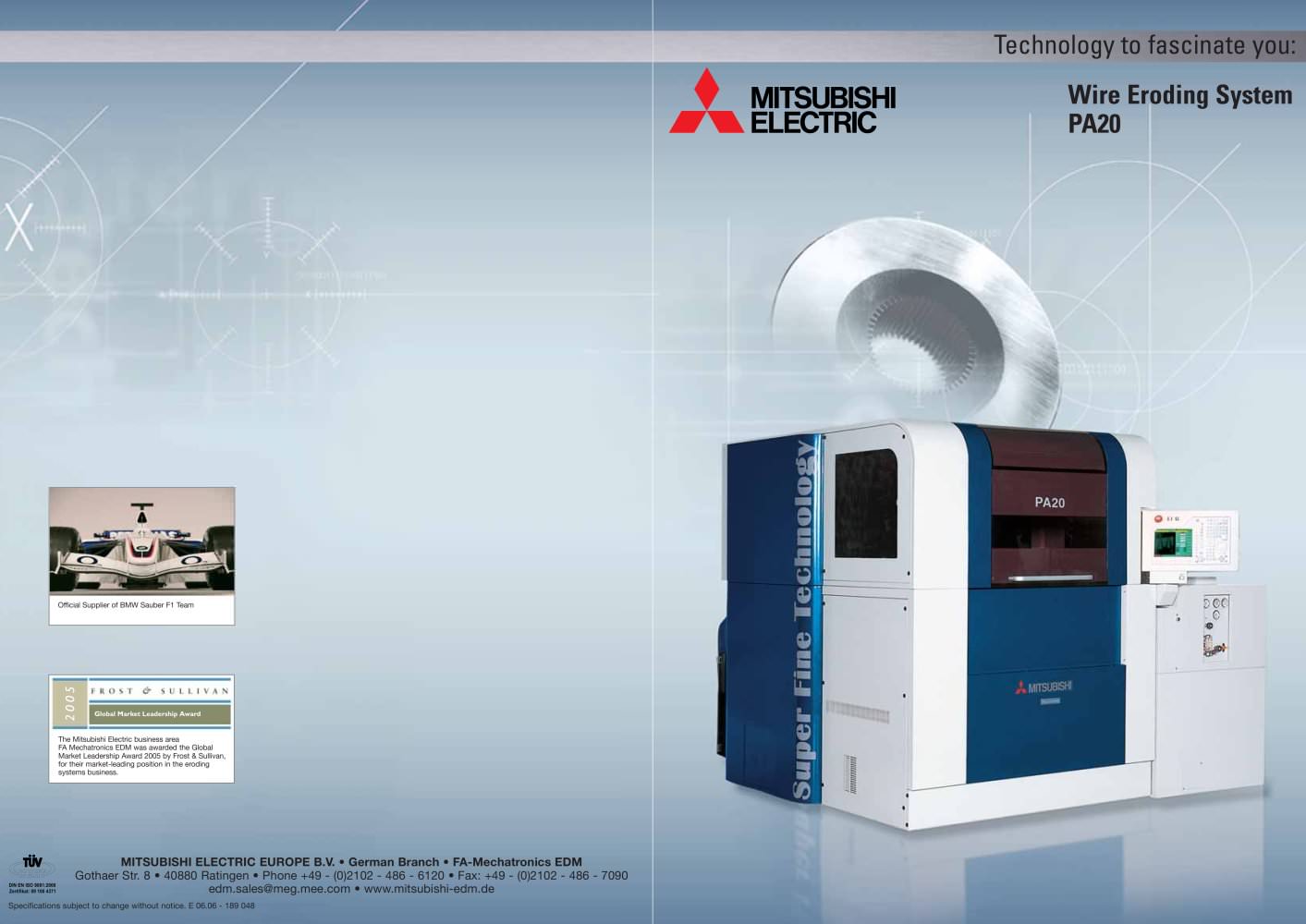

Technology to fascinate you: Wire Eroding System PA20 > Official Supplier of BMW Sauber F1 Team The Mitsubishi Electric business area FA Mechatronics EDM was awarded the GlobalMarket Leadership Award 2005 by Frost & Sullivan,for their market-leading position in the eroding systems business. MITSUBISHI ELECTRIC EUROPE B.V. German Branch Օ FA-Mechatronics EDM DIN EN ISO 9001:2000Zertifikat: 09 100 4371 GothaerStr. 8 40880 Ratingen Օ Phone +49 - (0)2102 - 486 - 6120 Fax: +49 - (0)2102 - 486 - 7090edm.sales@meg.mee.com Օ www.mitsubishi-edm.de Specificationssubject to change without notice. E 06.06 - 189 048 size="-2">

Thermal encapsulation A thermally tight encapsulation in conjunction with active cooling systems, avoids a loss of precision caused by thermal fluctuation. > Cooler Filter unit Cast steel machine design This classic concept guarantees a long service life and the solid machine construction easily handles heavy workpieces. Direct drive and generously dimensioned spindles Non-slip clutches, double distance closed loop measuring systems and intelligent distribution of dynamic loads ensure long-lasting precision. > 4 5 size="-1">

Threaded in 10 seconds: the AT System. The combination of a new measuring sensor and a fast retract function gives you the highest reliability and ultimate speed, even for smallest starting holes. > Telecontact Telecontact Telecontact Telecontrol: Remote control via PC.Telecontrol provides remote monitoring and remote control of the machine from any site. System optimisation for running processes is also possible with this service. > 6 7 size="-1">

3D graphic function Reliable graphic program check using the improved graphic and surface display. The speed of the graphic program check is faster than conventional systems. Programming The Graphic User Interface (GUI) makes the PA20 easy to operate, even for beginners. The operating and programming screens correspond to PC standards. Expert system E.S.P.E.R. The Easy Simple to Program by ExpertӔ system, combined with the 64-BIT CNC control system, complete the automatic adaptation and generator setting according to your process-specific data. Hybrid Pack Software This program helps you to...

Digital FS Generator: The newly developed fine smoothinggenerator allows a surface finish of up to 0.1 m Ra. It can also be used when applied to automation systems. Material: 1.2379Cutting height: 30 mm Wire electrode: 0.25 mm brass Precision: ձ0.003 mm Surface quality: Ra 0.12 m Processing time: 3 hours 28 minutes > [յmRa] 0,250,200,15 0,10 Surface qualityWorkpiece height in mm 050100 Orbit-Master continuously controls the conditions in the spark gap and allows geometrical reliability of the workpiece independent from corner geometries.Material: ASP23Cutting height: 25 mm Wire electrode:...

Travel path (X/Y/Z)mm500 x 350 x 300 Travel path (U/V) mm21 x ѱ21 Conic angle (for workpiece height) 10 (100 mm) Max. workpiece dimensions (W x D X H)mm1050 x 800 x 295 Max. workpiece weightkg1500 Table dimensions (W x D) mm780 x 630 Possible wire diameters mm0,05 Ж 0,3 > Wire reel reception kg10 Automatic water jet threading Max. advance (X/Y) mm/min1300 Overall dimensions (W x D x H) mm2210 x 2873 x 2150 Weight of the machine kg3500 > Tank capacity l750 Filter fineness m2 Filter elements 2 Temperature control Dielectric cooler Overall dimensions (W x D x H) mm880 x 2070 x 1565 > 2170...
