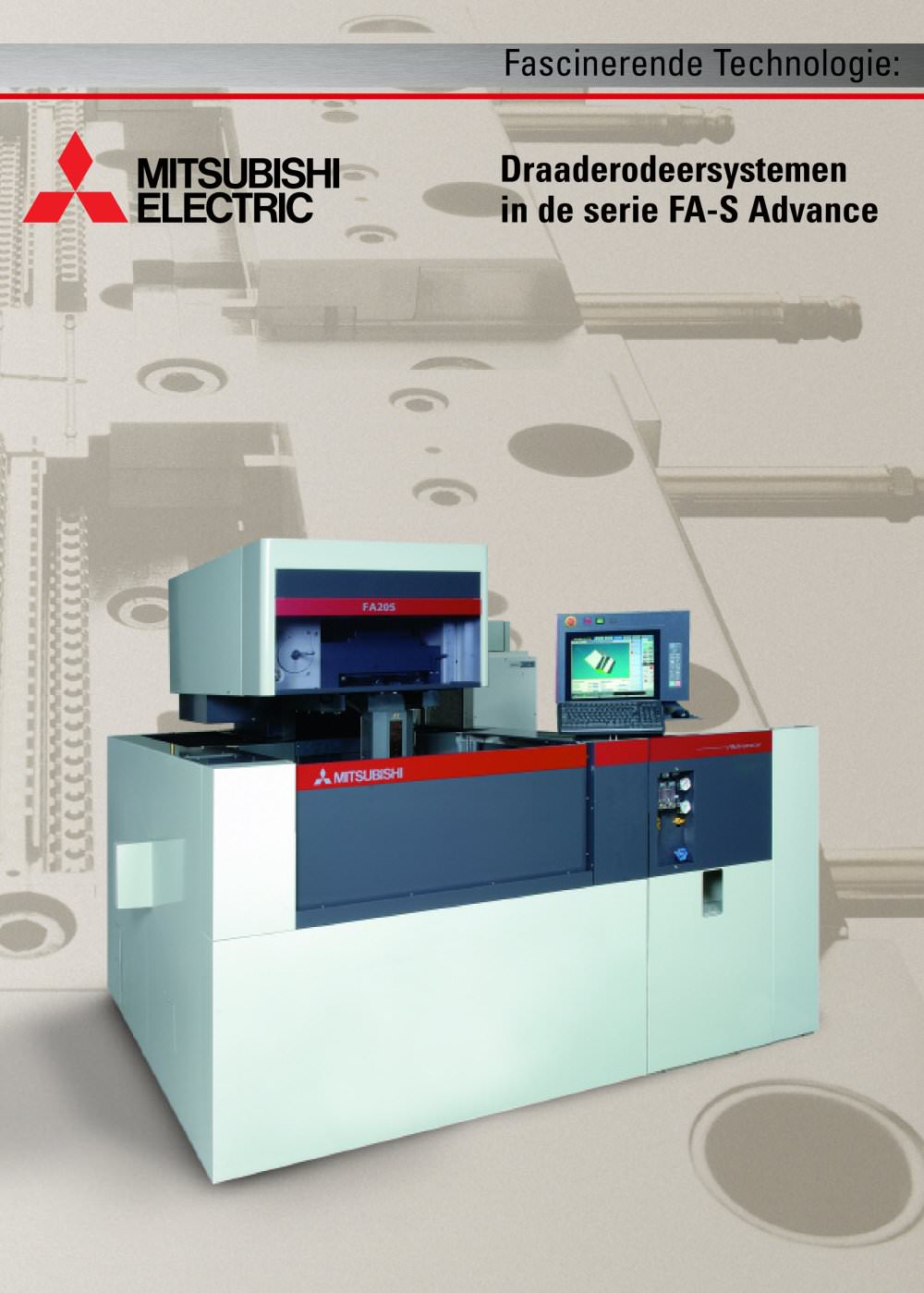

FA-S Advance Dutch

Product catalog summary

Overview: The document provides a comprehensive technical description of the Mitsubishi FA-S Advance series, emphasizing its capabilities, specifications, and technological advancements in wire EDM (Electrical Discharge Machining) systems. It highlights the machine's efficiency, precision, and adaptability to various materials and applications.

Key Specifications:

Surface roughness achievable up to Ra 0.10 µm.
Machining capacity up to 500 mm²/min.
Wire diameters ranging from 0.1 mm to 0.36 mm.
Advanced anti-electrolysis generator (D-AE) for improved process control.
Compatibility with a variety of materials including hard metals, titanium, and aluminum.

Technological Features:

D-AE Generator: Offers unique control over spark positioning to enhance parallelism in high workpieces.
V-Package: Includes a high-power generator for enhanced machining capabilities, compatible with the D-FS fine machining generator.
64-BIT CNC-PC Control: Provides intuitive operation with graphical interfaces and real-time monitoring tools.
Hybrid Pack Software: Assists in optimizing machine settings for specific processes.

Machine Models and Capabilities:

FA10-S Advance: Cutting range of 350 x 250 x 220 mm, suitable for smaller workpieces.
FA20-S Advance: Cutting range of 500 x 350 x 300 mm, offers enhanced automation options.
FA30-S Advance: Cutting range of 750 x 500 x 410 mm, supports larger workpieces and higher machining capacities.
FA40-V and FA50-V: Designed for maximum productivity with cutting ranges up to 1300 x 1000 x 400 mm.

Automation and Integration:

Integration with Mitsubishi robots and manipulation systems for enhanced automation.
MasterCell software for managing multiple connected machines and optimizing production processes.

Additional Features:

Optional Tool Package for extended capabilities in cutting tool production.
Rotary axis options for machining rotating workpieces.
Comprehensive support for exotic materials like PKD and CBN.

Conclusion: The Mitsubishi FA-S Advance series offers a versatile and efficient solution for precision machining, with advanced features that cater to a wide range of industrial applications. Its integration capabilities and automation options make it a competitive choice for modern manufacturing environments.

Technical Specifications Overview:

Models and Power Consumption: The document outlines various models such as FA10-S Advance, FA20-S Advance, FA30-S Advance, FA40-V, and FA50-V. Power consumption ranges from 13.5 KVA to 23.0 KVA depending on the model.
Installation Weight and Dimensions: The total weight of installations varies from 2,540 kg to 10,320 kg. Minimum door openings for workpiece insertion are specified, with dimensions varying by model.
Equipment and Layout: The document includes detailed layout plans for each model, specifying the required floor space and equipment arrangement, including components like the generator, control panel, filter system, and cooler.
V-Package Features: The V-Package is mentioned multiple times, indicating a specific configuration or set of features available for these models.

Additional Information:

Certification: The document mentions compliance with DIN EN ISO 9001:2000 standards.
Contact Information: Mitsubishi Electric Europe B.V. is listed as the contact point for sales and inquiries.
Partnerships: Mitsubishi Electric is noted as an official supplier to the BMW Sauber F1 Team.
