The MiniTec Profile System offers versatile belt conveyor solutions for industrial applications, featuring automatic design capabilities via MiniTec CADmenue software. Key components include plug-on and flanged motors, with belt widths from 260 mm to 800 mm, supporting loads up to 20 kg and lengths up to 2000 mm. Standard belts are made of PVC and PU, with antistatic properties.
Available in driven and non-driven versions, roller conveyors support tube lengths up to 1000 mm in materials like PVC, aluminum, and steel. Driven versions handle loads up to 300 kg per drive, with adjustable speeds and motor options including plug-on motors with chain tensioners.
Designed for precision, these conveyors offer single or multi-lane configurations, adjustable speeds, and special coatings for timing belts to meet specific needs.
These systems meet DIN EN ISO 14644-1 standards for high cleanliness environments, featuring polyurethane-coated timing belts and options for closed profile bases.
This program ensures rapid delivery of standard conveyors within 48 hours, built on a profile 45x45 F structure with various motor and belt material options.
The document details specifications and assembly instructions for components like conveyor bearings, belt tensioning and driving cylinders, motor attachment kits, torque supports, and additional components such as drum bearings and lateral guide supports.
Includes specifications for lateral guides, supporting sheets, T-slot magnets, support roller kits, transport rollers, tubes, and bearing assemblies, with detailed assembly instructions.
Details on transfer systems like the TSG, including speed, motor power, and system concepts. Components like basic lines, modules, baseframes, and curves are described with assembly instructions.
Information on FMS and RMS, including components, system capabilities, and ordering instructions. FMS features separators, switch holders, and lift equipment, while RMS includes friction rollers, workpiece carriers, and deflection systems.
Catalog excerpts

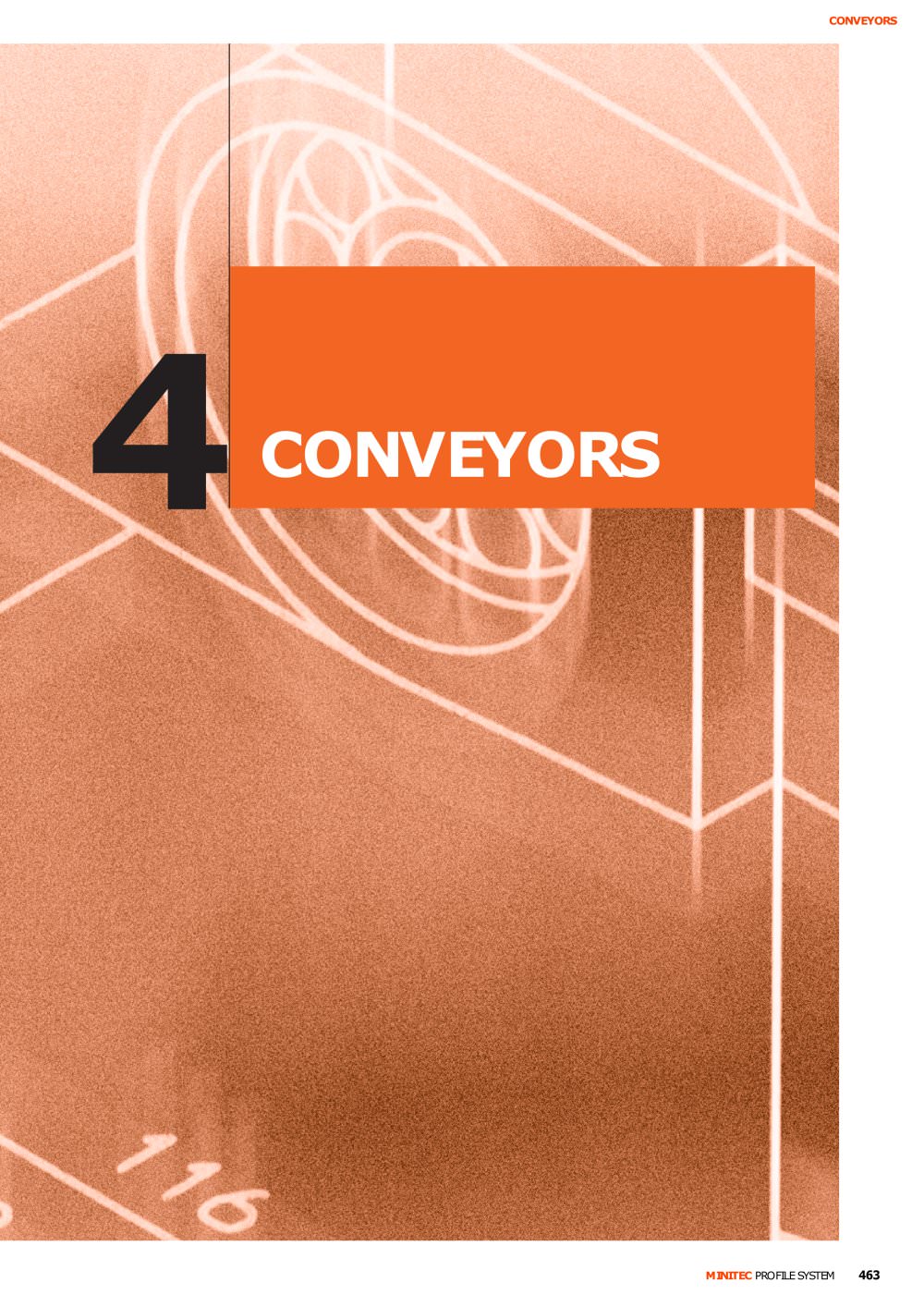

MINITEC PROFILE SYSTEM 463 CONVEYORS 4 CONVEYORS
Open the catalog to page 1
CONVEYORS BELT CONVEYOR 464 MINITEC PROFILE SYSTEM r o y e v n o c t l e B BELT CONVEYOR
Open the catalog to page 2
MINITEC PROFILE SYSTEM 465 CONVEYORS BELT CONVEYOR 00.0 065/ 0 BELT CONVEYOR - EXAMPLES Belt conveyor with drive roller Special conveyor with inbuilt demagnetizer Belt conveyor angeled Conveyor with nosebar
Open the catalog to page 3
CONVEYORS BELT CONVEYOR 466 MINITEC PROFILE SYSTEM Roller conveyor with pneumatic stoppers Belt conveyor with vacuum grip Conveyor for food-industry Special conveyor BELT CONVEYOR - EXAMPLES
Open the catalog to page 4
MINITEC PROFILE SYSTEM 467 CONVEYORS BELT CONVEYOR BELT CONVEYOR - SERIES 45 The belt conveyor module in our MiniTec CADmenue construction software designs your belt conveyor automatically according to your requirements. Furthermore it calculates the deflection, suggests the number of supports and generates the perspective part list - within a few minutes. Assembly can be carried out quickly and easily as a result of our proven components. Motor arrangement Plug-on motor Covered flanged motor Cylinder Ø 50 mm or nosebar Belt driving cylinder Ø 50 mm Cylinder Ø 50 mm or nosebar Belt driving cylinder...
Open the catalog to page 5
CONVEYORS BELT CONVEYOR 468 MINITEC PROFILE SYSTEM BELT CONVEYOR - SERIES 45 Subconstructions Height-adjustable Standard one foot Center drive 3 Wheels System Belt width max. 800 mm Belt driving cylinder Ø 50 mm or Ø 70 mm Cylinder Ø 50 mm or nosebar Cylinder Ø 50 mm or nosebar Belt driving cylinder Ø 50 mm Cylinder Ø 50 mm or nosebar Cylinder drive Belt width min. 260 mm Belt width max. 500 mm max. length 2000 mm max. load 20 kg
Open the catalog to page 6
MINITEC PROFILE SYSTEM 469 CONVEYORS BELT CONVEYOR Conveyor belts - Standard Belt PVC, black, smooth, antistatic Part N° 29.5019/1 Belt PVC, green, grip, antistatic Part N° 29.5019/2 Belt PVC, green, grip, adhesive, antistatic Part N° 29.5019/3 Belt PVC, green, smooth, antistatic Part N° 29.5019/4 Belt PU, blue, smooth Part N° 29.5019/5 Belt PU, white, smooth, antistatic Part N° 29.5019/6 Belt PVC, white, smooth, antistatic Part N° 29.5019/7 Belt PU, green, smooth, antistatic Part N° 29.5019/8 Belt fabric, white, antistatic Part N° 29.5019/9 Calculation of endless length EL: For cylinder 45:...
Open the catalog to page 7
CONVEYORS BELT CONVEYOR 470 MINITEC PROFILE SYSTEM 00.0 064/ 0 LATERAL GUIDE Short Long Low High CONVEYOR 45 AND 90 ROLLER CONVEYOR WITHOUT DRIVE
Open the catalog to page 8
MINITEC PROFILE SYSTEM 471 CONVEYORS BELT CONVEYOR INQUIRY STANDARD BELT CONVEYOR 45 Standard dimension Axial distance A mm Belt width L mm Lmax see page 4 Operating conditions Goods to be conveyed Weight/piece kg Total belt load kg Temperature °C Subconstructions Charging side height He mm Discharging side height Ha mm Number of supports Pcs. Height adjustable sup. from mm to mm Lateral guide one side both sides short long Angle bracket for floor fastening Part N° 21.1112/0 Floor anchor 12 Part N° 21.1115/0 Wheels Part N° Feet Part N° Options Conveyor belt Part N° Supporting sheet Aluminium...
Open the catalog to page 9
CONVEYORS BELT CONVEYOR 472 MINITEC PROFILE SYSTEM INQUIRY NOSEBAR CONVEYOR Standard dimension Axial distance A mm Belt width L mm (max. 300mm) Type with nosebar Goods to be conveyed Weight/piece kg one side Total belt load kg both sides Temperature °C Subconstructions Charging side height He mm Discharging side height Ha mm Number of supports Pcs. Height adjustable sup. from mm to mm Lateral guide one side both sides short long Angle bracket for floor fastening Part N° 21.1112/0 Floor anchor 12 Part N° 21.1115/0 Wheels Part N° Feet Part N° Options Conveyor belt Part N° Supporting sheet Aluminium...
Open the catalog to page 10
MINITEC PROFILE SYSTEM 473 CONVEYORS BELT CONVEYOR BELT CONVEYOR - SERIES 90 The belt conveyor module in our MiniTec CADmenue construction software designs your belt conveyor automatically according to your requirements. Furthermore it calculates the deflection, suggests the number of supports and generates the correct parts list - within a few minutes. Assembly can be carried out quickly and easily as a result of our proven components. Subconstructions Height-adjustable Standard Plug-on motor Cylinder Ø 95 mm Belt driving cylinder Ø 95 mm Covered flanged motor Cylinder Ø 95 mm Belt driving cylinder...
Open the catalog to page 11
CONVEYORS BELT CONVEYOR 474 MINITEC PROFILE SYSTEM INQUIRY STANDARD BELT CONVEYOR 90 Standard dimension Axial distance A mm Belt width L mm Operating conditions Goods to be conveyed Weight/piece kg Total belt load kg Temperature °C Subconstructions Charging side height He mm Discharging side height Ha mm Number of supports Pcs. Height adjustable sup. from mm to mm Lateral guide one side both sides short long Angle bracket for floor fastening Part N° 21.1112/0 Floor anchor 12 Part N° 21.1115/0 Wheels Part N° Feet Part N° Options Conveyor belt Part N° Supporting sheet Aluminium Inox Drive Motor...
Open the catalog to page 12
MINITEC PROFILE SYSTEM 475 CONVEYORS ROLLER CONVEYOR r o y e v n o c r e l l o R 00.0 064/ 0 ROLLER CONVEYOR
Open the catalog to page 13
CONVEYORS ROLLER CONVEYOR 476 MINITEC PROFILE SYSTEM 00.0 064/ 0 ROLLER CONVEYOR WITHOUT DRIVE Tube length L max. tube length L PVC tube 600 mm AL tube 1000 mm Steel tube 1000 mm Transport roller Transport roller S with slide bearing with roller bearing Profile 45 x 45 45 x 90 Transport roller Bearing
Open the catalog to page 14
MINITEC PROFILE SYSTEM 477 CONVEYORS ROLLER CONVEYOR ROLLER CONVEYOR WITHOUT DRIVE Subconstructions Examples Height-adjustable Standard
Open the catalog to page 15
CONVEYORS ROLLER CONVEYOR 478 MINITEC PROFILE SYSTEM 00.0 064/ 0 INQUIRY ROLLER CONVEYOR WITHOUT DRIVE Company Please call me back Name Please send me an offer Phone no. Fax no. E-Mail Standard dimension Axial distance A mm Roller distance mm Roller width L mm Profile 45 x 45 45 x 90 Operating conditions Goods to be conveyed Weight/piece kg Total belt load kg Temperature °C Subconstructions Charging side height He mm Discharging side height Ha mm Distance A mm Number of supports Pcs. Height adjustable sup. from mm to mm Lateral guide one side both sides Lateral guide 45 x 45 without low variable...
Open the catalog to page 16All Minitec catalogs and technical brochures
