Spherical Bearings SBT
1 / 1 PageView full catalog

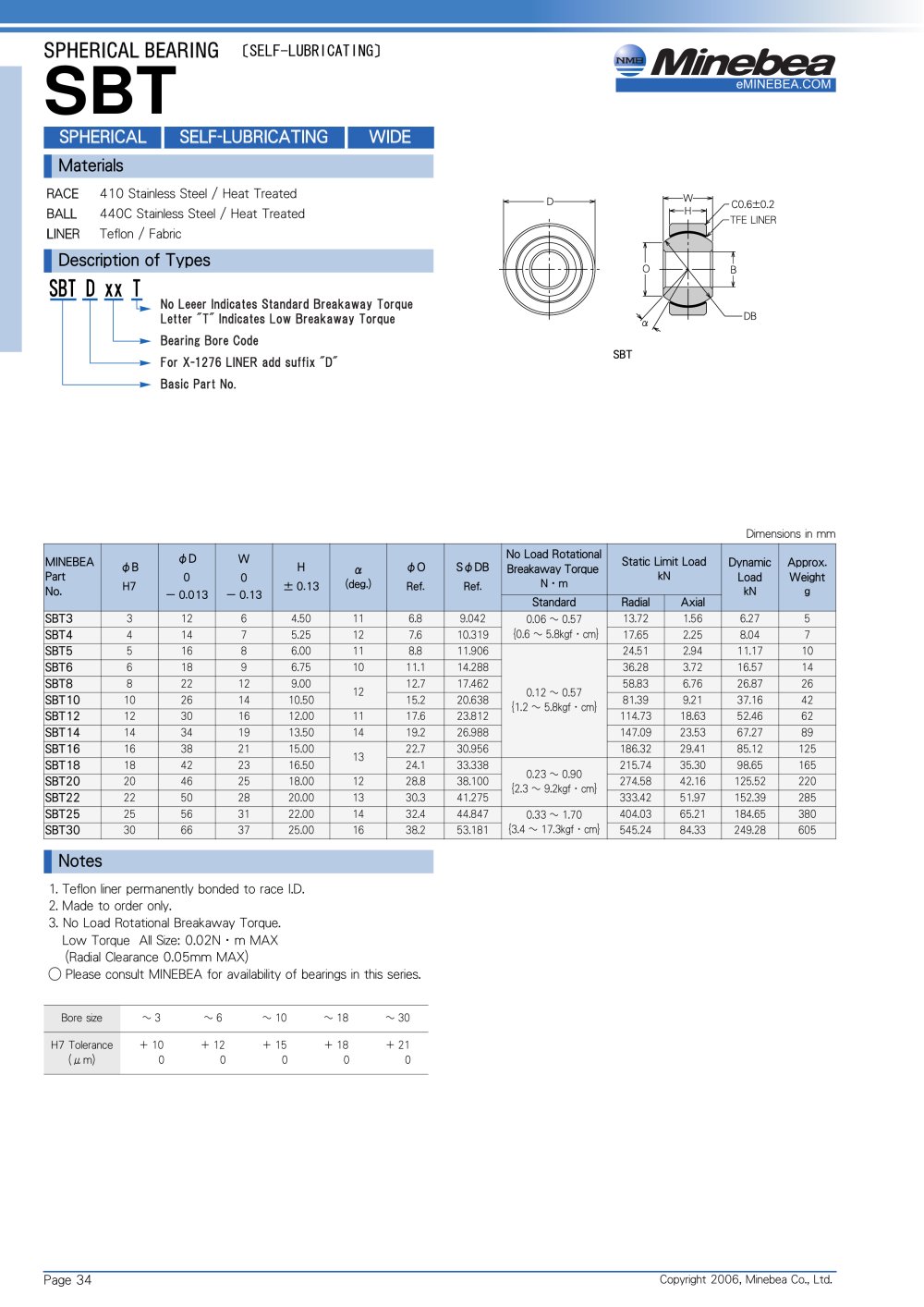

Spherical Bearings SBT
Product catalog summary
Spherical Bearing Specifications
- Material Composition: The race is made of 410 stainless steel, the ball is made of 440C stainless steel, and the liner is composed of Teflon fabric.
- Types and Dimensions: The document lists various types of spherical self-lubricating bearings with dimensions provided in millimeters. Key dimensions include bore diameter (φB), outer diameter (φD), width (W), and height (H).
- Performance Metrics: Each bearing type is associated with specific performance metrics such as no-load rotational breakaway torque, static limit load, dynamic load, and approximate weight.
- No Load Rotational Breakaway Torque: Varies across models, with a low torque maximum of 0.02 N・m for all sizes.
- Static and Dynamic Load Capacities: Provided in kilonewtons (kN) for each bearing type, indicating the load-bearing capabilities.
- Weight: Approximate weight is given in grams for each bearing type.
- The Teflon liner is permanently bonded to the race's inner diameter.
- Bearings are made to order, and availability should be confirmed with MINEBEA.
- H7 tolerance levels are specified for different bore sizes, indicating precision in manufacturing.
