Sleeve Bearing Overview

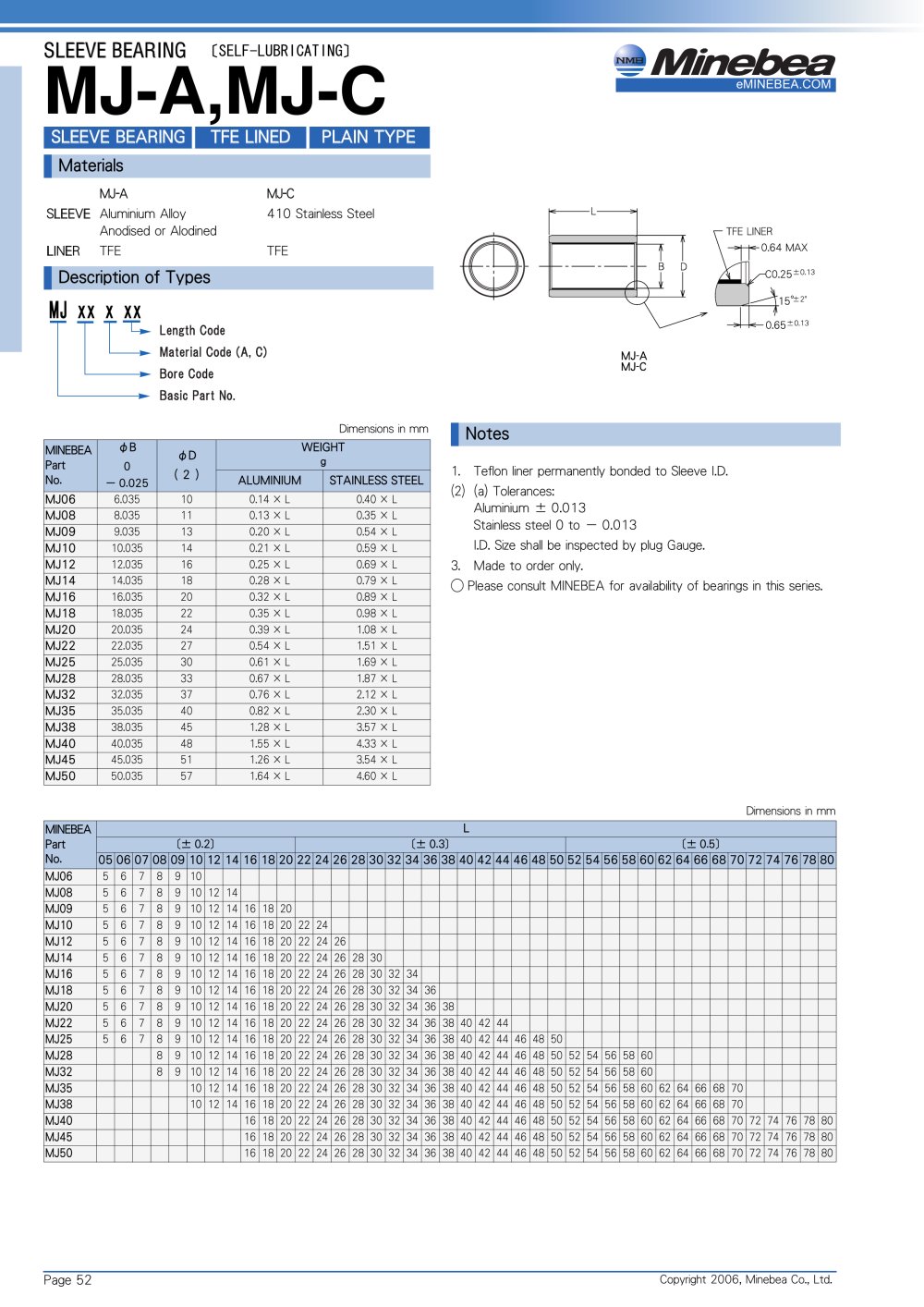

This document provides technical specifications for Minebea's self-lubricating sleeve bearings, specifically the MJ-A and MJ-C models. These bearings are designed with a TFE (Teflon) liner and are available in two material types: anodized or alodined aluminum alloy and 410 stainless steel.

Materials
- Sleeve: Available in Aluminum Alloy (anodized or alodined) and 410 Stainless Steel.
- Liner: TFE (Teflon) permanently bonded to the sleeve's interior.

Specifications
The document lists various part numbers (MJ06 to MJ50) with corresponding dimensions and weights. The dimensions are provided in millimeters, and weights are expressed as a function of length (L).

Dimensional Tolerances
- Aluminum: ± 0.013 mm
- Stainless Steel: 0 to -0.013 mm
Inspection of the internal diameter (I.D.) is conducted using a plug gauge.

Availability
These bearings are made to order, and customers are advised to consult Minebea for availability.

Length Options
The document provides a detailed table of available lengths for each part number, with tolerances specified as ± 0.2, ± 0.3, or ± 0.5 mm depending on the length.
