Rod End Bearings RBT-E
Product catalog summary

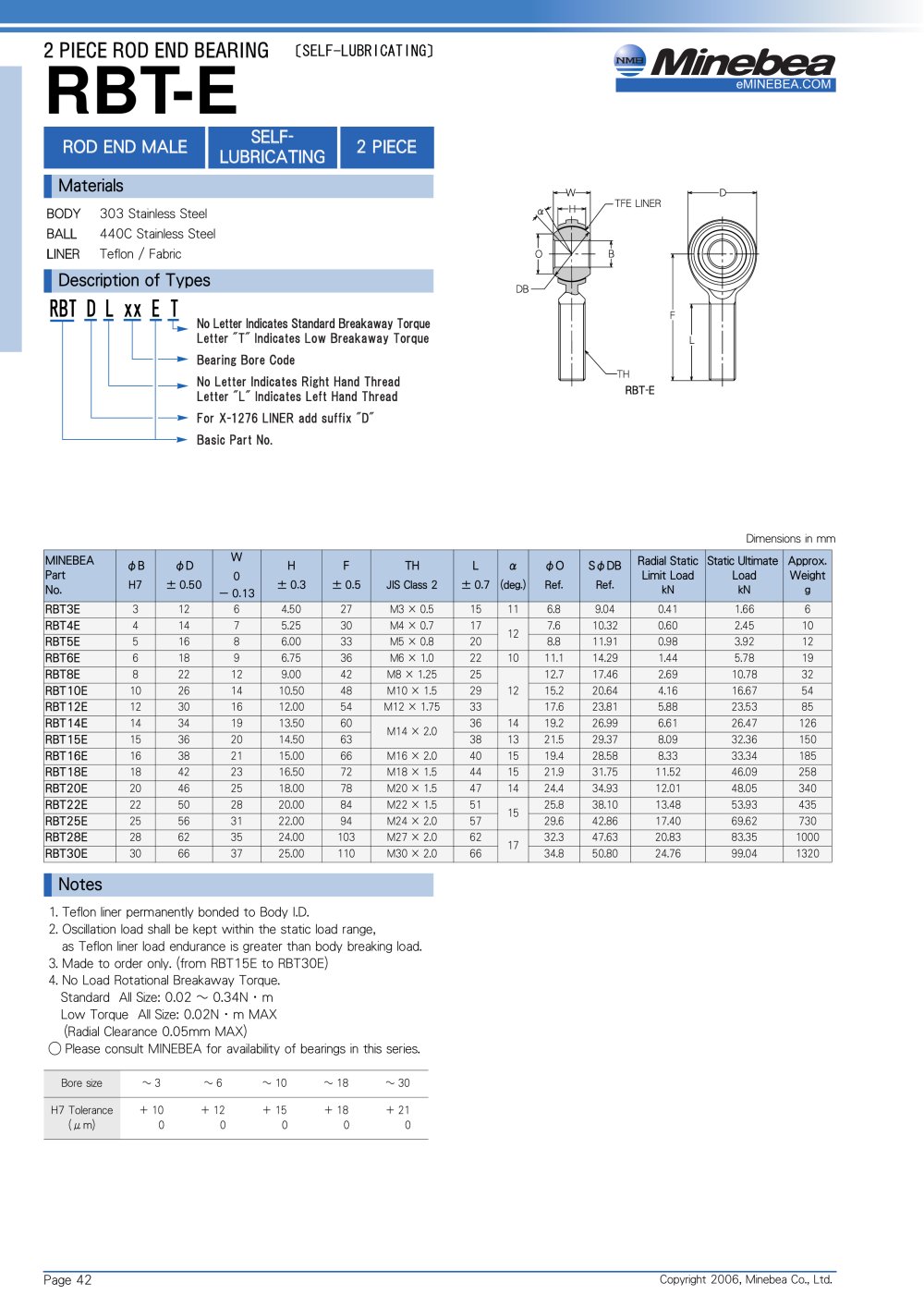

2 Piece Rod End Bearing (Self-Lubricating) - RBT-E
Materials: The body is made of 303 Stainless Steel, the ball is 440C Stainless Steel, and the liner is Teflon/Fabric.
Description of Types: The document provides detailed specifications for various rod end bearings, including dimensions, load limits, and weights. The dimensions are given in millimeters, and the load capacities are specified in kilonewtons (kN).
Key Specifications:
- Radial Static Limit Load and Static Ultimate Load are provided for each part number.
- Approximate weight is listed in grams for each bearing type.
Notes:
- The Teflon liner is permanently bonded to the body interior.
- Oscillation load should remain within the static load range due to the Teflon liner's higher load endurance compared to the body breaking load.
- Bearings from RBT15E to RBT30E are made to order.
- No Load Rotational Breakaway Torque is specified for standard and low torque options.
Consultation: It is advised to consult MINEBEA for the availability of bearings in this series.
Tolerances: Bore size tolerances are provided in micrometers for different size ranges.
