Face Master 3.0

1 / 2 PagesView full catalog

Face Master 3.0

Product catalog summary

Specifications:

Diesel-powered articulated chassis with permanent 4-wheel drive.
Fail-safe, wet multi-disc service brakes with an additional fail-safe emergency-parking brake.
Heavy-duty alloy profile feeder with stainless steel guide surfaces for improved performance and reduced operation costs.
Hydraulic joystick steering with full proportional control and shock protection.
Minimum tramming height: 2.9 m.
B 40L head rotation boom with automatic parallelism and cross-cutting capability.
Reliable hydraulic controls and low operation costs.
Rotary-percussive rockdrill by Boart Longyear.
Deutz diesel engine and Dana Off-Highway Powershift Transmission.
Operator’s Protection Canopy and fire suppression system.
Typical installed power: 125kW.

Main Components:

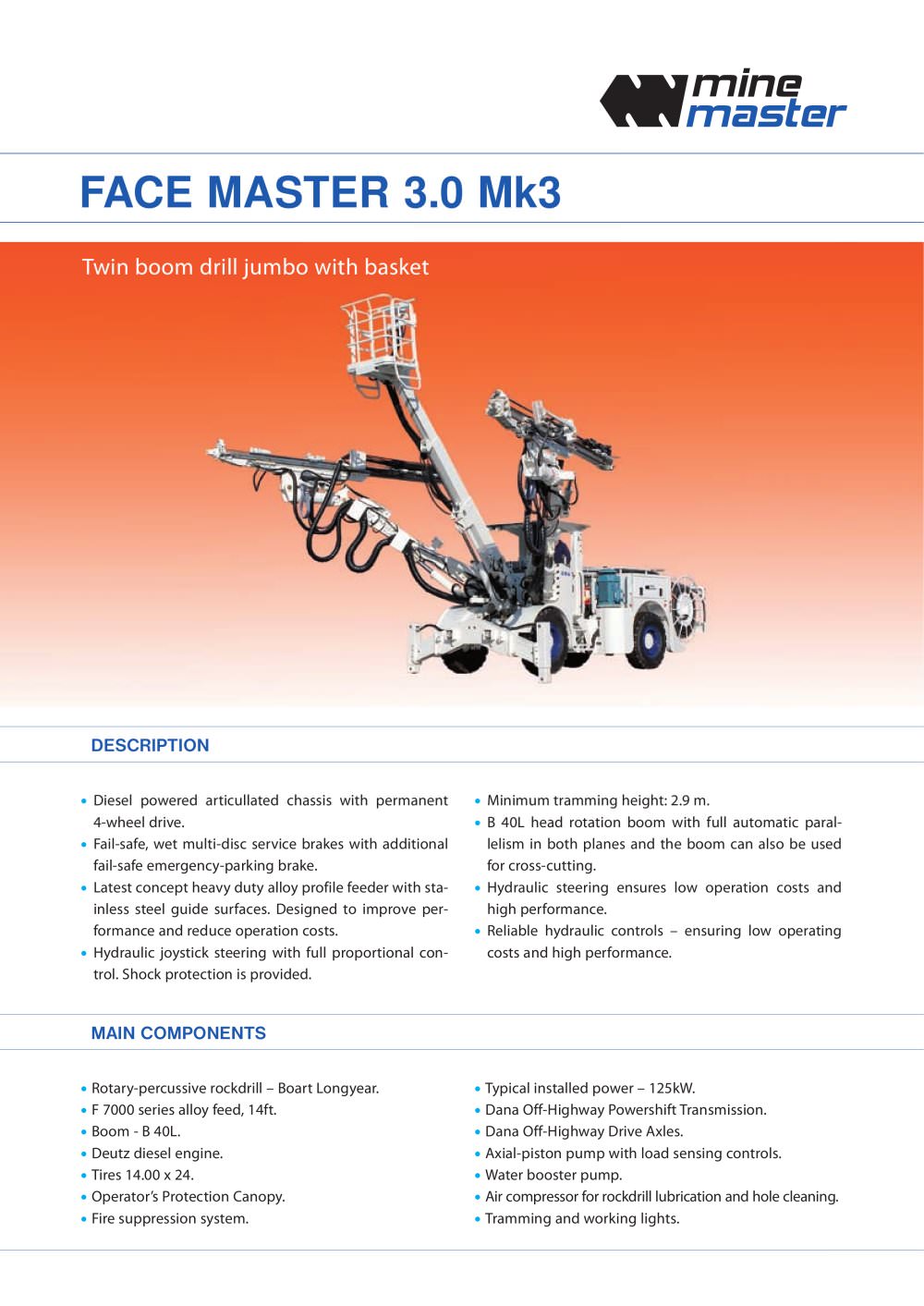

Face Master 3.0 Mk3 twin boom drill jumbo with basket.
Air conditioning for drilling operation when on electrical power.
Electric cable reel and water hose reel.
Automatic centralized lubrication system and mist air system.
Fire detection system and additional hydraulic filtration system.

Options:

Boom extension: 1500 mm, Boom Lift: +40 /-30°, Boom Swing: ± 40°.
Feeder Rotation: 360°, Feeder Crowd: 1500 mm, Feeder Swing: ± 40°, Feeder Tilt: 0-90°.

Dimensions:

Width: 2.50 m, Length: 13.20 m, Height min.: 2.90 m, Weight: 30,000 kg.
Gradeability: 10°, Cross-grade: 5°.

Contact Information:

Mine Master Ltd., ul. Dworcowa 27, Wilków, 59-500 Złotoryja, P.O. Box 25, Poland.
Tel.: +48 76 87 83 511, Fax: +48 76 87 84 101, Email: [email protected].

Catalog excerpts

Diesel powered articullated chassis with permanent 4-wheel drive. Օ Minimum tramming height: 2.9 m. B 40L head rotation boom with full automatic paral-lelism in both planes and the boom can also be used for cross-cutting. Օ Fail-safe, wet multi-disc service brakes with additional fail-safe emergency-parking brake. Latest concept heavy duty alloy profile feeder with sta-inless steel guide surfaces. Designed to improve per- formance and reduce operation costs. Օ Hydraulic steering ensures low operation costs and high performance. Reliable hydraulic controls Ֆ ensuring low operating costs and high performance. Hydraulic joystick steering with full proportional con-trol. Shock protection is provided. > Rotary-percussive rockdrill Ֆ Boart Longyear. Typical installed power Ֆ 125kW. F 7000 series alloy feed, 14ft. Օ Dana Off-Highway Powershift Transmission. Boom - B 40L. Օ Dana Off-Highway Drive Axles. Deutz diesel engine. Օ Axial-piston pump with load sensing controls. Tires 14.00 x 24. Օ Water booster pump. OperatorՒs Protection Canopy. Air compressor for rockdrill lubrication and hole cleaning. Օ Fire suppression system. Tramming and working lights. >
