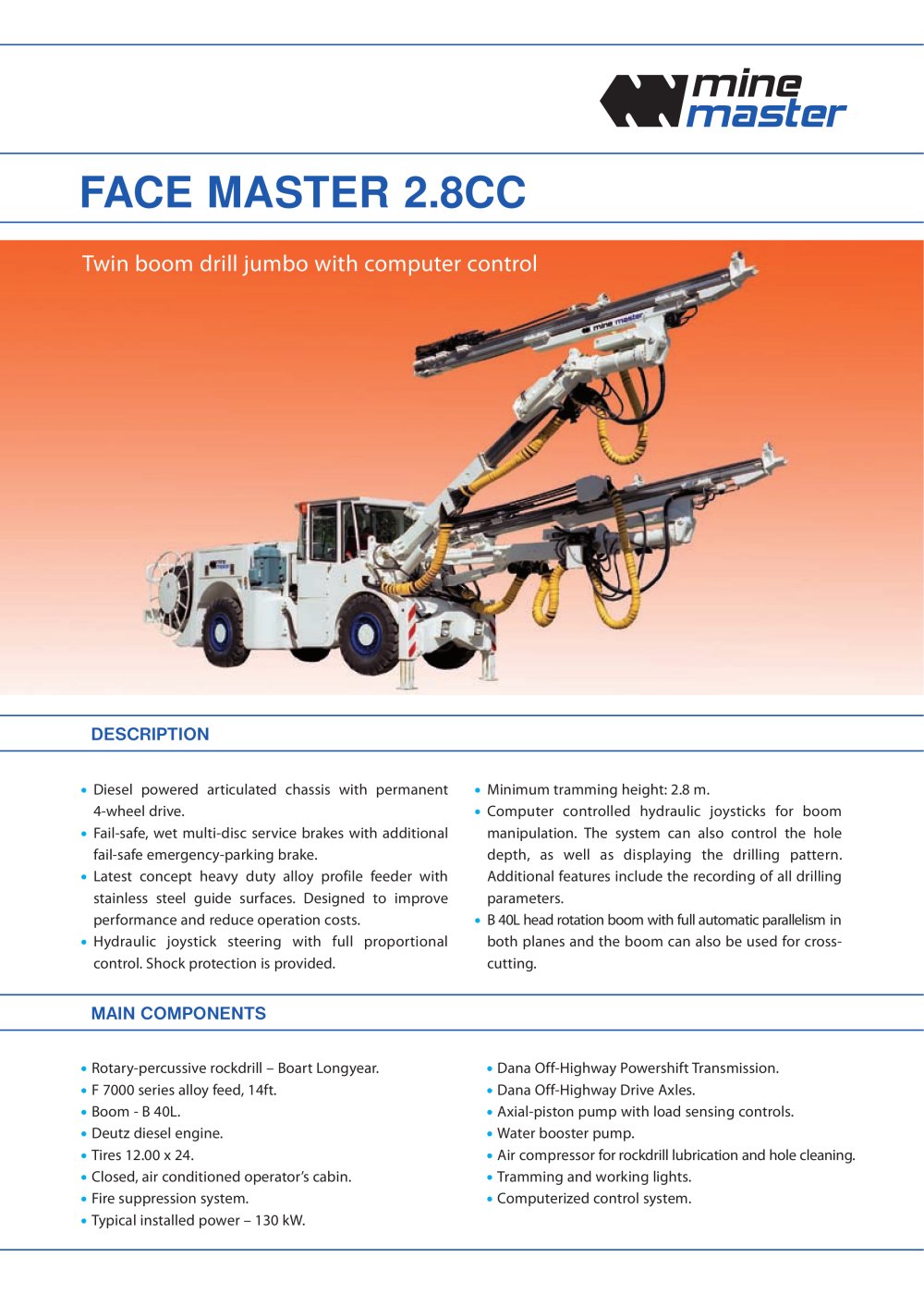

Face Master 2.8 CC

Product catalog summary

Specifications:

Diesel-powered articulated chassis with permanent 4-wheel drive.
Fail-safe, wet multi-disc service brakes with an additional fail-safe emergency-parking brake.
Heavy-duty alloy profile feeder with stainless steel guide surfaces to enhance performance and reduce costs.
Hydraulic joystick steering with full proportional control and shock protection.
Minimum tramming height of 2.8 meters.
Computer-controlled hydraulic joysticks for boom manipulation, capable of controlling hole depth and displaying drilling patterns.
B 40L head rotation boom with automatic parallelism and cross-cutting capability.
Rotary-percussive rockdrill by Boart Longyear.
F 7000 series alloy feed, 14ft.
Deutz diesel engine and 12.00 x 24 tires.
Closed, air-conditioned operator’s cabin with a fire suppression system.
Typical installed power of 130 kW.
Dana Off-Highway Powershift Transmission and Drive Axles.
Axial-piston pump with load sensing controls, water booster pump, and air compressor for rockdrill lubrication and hole cleaning.
Tramming and working lights with a computerized control system.

Main Components:

Face Master 2.8CC twin boom drill jumbo with computer control.
Feeder options: 8ft, 10ft, 12ft.
Electric cable reel and water hose reel.
Automatic centralized lubrication system and fire detection system.
Additional hydraulic filtration system for tramming and drilling systems.
Voltage customizable to customer requirements.
Rotary-percussive rockdrill by Montabert and rod adding system.

Options:

Boom extension of 1500 mm, lift of +40/-30°, and swing of ± 40°.
Feeder rotation of 360°, crowd of 1500 mm, swing of ± 40°, and tilt of 0-90°.

Dimensions:

Width: 2.20 m, Length: 13.10 m, Height: 2.80 m.
Weight: 24,000 kg.
Minimum seam width: 4.50 m.
Gradeability: 10°, Cross-grade: 5°.
Turning radius coverage.

Contact Information:

Mine Master Ltd., ul. Dworcowa 27, Wilków, 59-500 Złotoryja, P.O. Box 25, Poland.
Tel.: +48 76 87 83 511, Fax: +48 76 87 84 101.
Website: www.minemaster.eu, Email: [email protected].

Catalog excerpts

Diesel powered articulated chassis with permanent 4-wheel drive. Օ Minimum tramming height: 2.8 m. Computer controlled hydraulic joysticks for boom manipulation. The system can also control the hole depth, as well as displaying the drilling pattern. Additional features include the recording of all drilling parameters. Օ Fail-safe, wet multi-disc service brakes with additional fail-safe emergency-parking brake. Latest concept heavy duty alloy profile feeder with stainless steel guide surfaces. Designed to improve performance and reduce operation costs. Օ B 40L head rotation boom with full automatic parallelism in both planes and the boom can also be used for cross- cutting. Hydraulic joystick steering with full proportional control. Shock protection is provided. > Rotary-percussive rockdrill Ֆ Boart Longyear. Dana Off-Highway Powershift Transmission. Օ F 7000 series alloy feed, 14ft. Dana Off-Highway Drive Axles. Օ Boom - B 40L. Axial-piston pump with load sensing controls. Օ Deutz diesel engine. Water booster pump. Օ Tires 12.00 x 24. Air compressor for rockdrill lubrication and hole cleaning. Օ Closed, air conditioned operators cabin. ҕ Tramming and working lights. Fire suppression system. Օ Computerized control system. Typical installed power Ֆ 130 kW. >
