MV-SUS507GC/M 5MP USB Vision Camera with Advanced Vision Features

Product catalog summary

Introduction:
This document provides technical specifications and features of the MV-SUS507GC industrial camera, widely used in various industries such as electronics, semiconductors, logistics, transportation, biomedicine, and packaging.

Specifications:

Camera Type: CMOS
Resolution: 2448x2048 at 75 FPS
Dynamic Range: 67.6 dB
Pixel Size: 3.4um x 3.4um
Frame Buffer: 128M Bytes
Operating Temperature: 0~50°C
Storage Temperature: -30~60°C
Power Supply: USB 5V
Weight: <550g

Features:

High-speed USB3.0 interface with 5Gbps bandwidth
Low CPU utilization with DMA transmission
Programmable IO and external trigger support
Compatible with multiple vision software and protocols
Support for various operating systems including Windows, Linux, and Android
Advanced image processing features like ROI, contrast adjustment, and 3D noise reduction

Mechanical Specifications:

Dimensions: 29x29x50.3mm
Lens Interface: C/CS port with adapter rings

Applications:
The camera is suitable for integration into embedded devices and supports seamless operation with multiple cameras on a single computer without frame loss.

Connectivity:

USB3.0 data interface
GPIO with opto-coupler isolated input/output

Contact Information:
For sales and technical support, contact MindVision through their provided email addresses and phone number.

Catalog excerpts

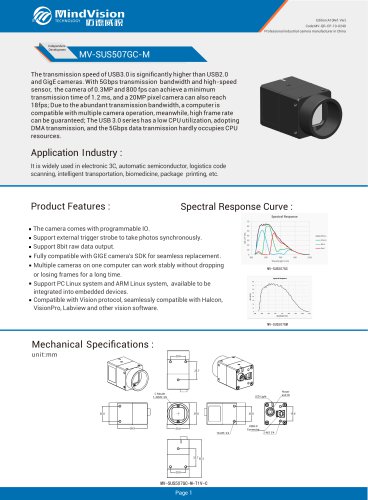

MV-SUS507GC/M 5MP USB Vision Camera with Advanced Vision Features-1

^/technology mijglfflBH Edition:A1(Ref. Ver) Code:MV-QR-CP-19-0240 Professional industrial camera manufacturer in China The transmission speed of USB3.0 is significantly higher than USB2.0 and GigE cameras. With 5Gbps transmission bandwidth and high-speed sensor, the camera of 0.3MP and 800 fps can achieve a minimum transmission time of 1.2 ms, and a 20MP pixel camera can also reach 18fps; Due to the abundant transmission bandwidth, a computer is compatible with multiple camera operation, meanwhile, high frame rate can be guaranteed; The USB 3.0 series has a low CPU utilization, adopting DMA transmission, and the 5Gbps data tranmission hardly occupies CPU resources. It is widely used in electronic 3C, automatic semiconductor, logistics code scanning, intelligent transportation, biomedicine, package printing, etc. Product Features : Spectral Response Curve : ■ The camera comes with programmable IO. ■ Support external trigger strobe to take photos synchronously. ■ Support 8bit raw data output. ■ Fully compatible with GIGE camera's SDK for seamless replacement. ■ Multiple cameras on one computer can work stably without dropping or losing frames for a long time. ■ Support PC Linux system and ARM Linux system, available to be integrated into embedded devices. ■ Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software. Mechanical Specifications : unit:mm

Open the catalog to page 1

MV-SUS507GC/M 5MP USB Vision Camera with Advanced Vision Features-2

rEdition:A1(Ref. Ver) Code:MV-QR-CP-19-0240 i loiessional industrial camera manufacturer in China TECHNICAL PARAMETER ® E mail(Sales Department):[email protected] @ E-mail(Technical Department) :[email protected] ® South China Company: 5th Floor, Building 6, Chiayiyuan Science and Technology Park, Huaning Road, Longhua New District, Shenzhen ® Central China Company: Building 5D, Yida Chuangzhi Island, Dangui Road, Wangcheng Economic Development Zone, Changsha City ® East China Company: 9th Floor, Jizhi Business Plaza, Erquan East Road, Xishan District, Wuxi City, Jiangsu Province...

Open the catalog to page 2

MV-SUS507GC/M 5MP USB Vision Camera with Advanced Vision Features-3

Edition:A1(Ref. Ver) Code:MV-QR-CP-19-0240 Professional industrial camera manufacturer in China www.mindvision.com.cn @400Tel: 400-998-7281® E mail(Sales Department):[email protected] @ E-mail(Technical Department) :[email protected] ® South China Company: 5th Floor, Building 6, Chiayiyuan Science and Technology Park, Huaning Road, Longhua New District, Shenzhen ® Central China Company: Building 5D, Yida Chuangzhi Island, Dangui Road, Wangcheng Economic Development Zone, Changsha City ® East China Company: 9th Floor, Jizhi Business Plaza, Erquan East Road, Xishan District, Wuxi...

Open the catalog to page 3
