Rigid Linkages

Rigid Linkages
1 / 52 PagesView full catalog

Rigid Linkages

Product catalog summary
Overview: The document is a catalog from Midwest Control Products Corp, detailing a range of rigid linkages, accessories, and threaded rods. It includes specifications for various products such as turnbuckles, ladder bar adjusters, bellcranks, crank arms, shift knobs, bent rods, pre-cut tubes, adaptors, and threaded rods.
Specifications:
  • Turnbuckles: Available in M8, M10, and M12 sizes with right-hand and left-hand threads, made from carbon steel with zinc plating.
  • Jack Screw Turnbuckles (JSI & JSM): Constructed from steel with zinc yellow plating, available in various thread sizes and lengths.
  • Ladder Bar Adjusters (LBA): Made from 1045 steel with zinc clear plating, featuring male and female threads.
  • Universal Bellcranks (MBC): Include oil-impregnated bronze bearing race and steel housing, with multiple hole patterns.
  • Crank Arms (MCA): Steel construction with zinc yellow plating, available in different sizes.
  • Shift Knobs (RBK): Made from black phenolic plastic, available in various thread styles and sizes.
  • Bent 90° Rods (PBR): Steel construction with zinc clear plating, available in different thread sizes and dimensions.
  • Pre-Cut Chrome Moly Tubes (SCT): Made from 4130 chrome moly tubing, available in various outer diameters and lengths.
  • Step Down Adaptors (SD) and Step Up Adaptors (SU): Steel construction with zinc yellow plating, designed for thread conversion.
Threaded Rods: The catalog details standard and metric threaded rods made from 1018 Steel with Zinc Yellow plating. It includes specifications for thread sizes, lengths, and assembly lengths when used with linkage ends like ball joints and clevises.
Standards and Construction: MCP offers threaded rods designed for fast and economical linkages, emphasizing durability with 1018 Steel and Zinc Yellow plating.
Assembly Lengths: Detailed tables provide center-to-center lengths for rod assemblies, varying with linkage ends. For example, a TR1875-13.000 rod with spherical rod ends has a minimum assembly length of 14.000 inches and a maximum of 14.749 inches.
Recommendations: For Yoke End Assemblies, the minimum length should account for the width of the mating component, suggested to be at least one pin hole diameter. Similar advice is given for Clevis End Assemblies.
Additional Offerings: The catalog mentions other products like spherical rod ends, rod end seals, connecting links, assortment kits, and the Scotty BoltTM. Over 3,000 items are available online with no minimum purchase requirements.
Contact Information: Midwest Control Products Corp is located at 590 E Main St, Bushnell, IL 61422 USA. Contact via phone at 309-772-3163, fax at 309-772-2266, or email at [email protected]. More information and purchases can be made through their website www.midwestcontrol.com.
See more

Catalog excerpts

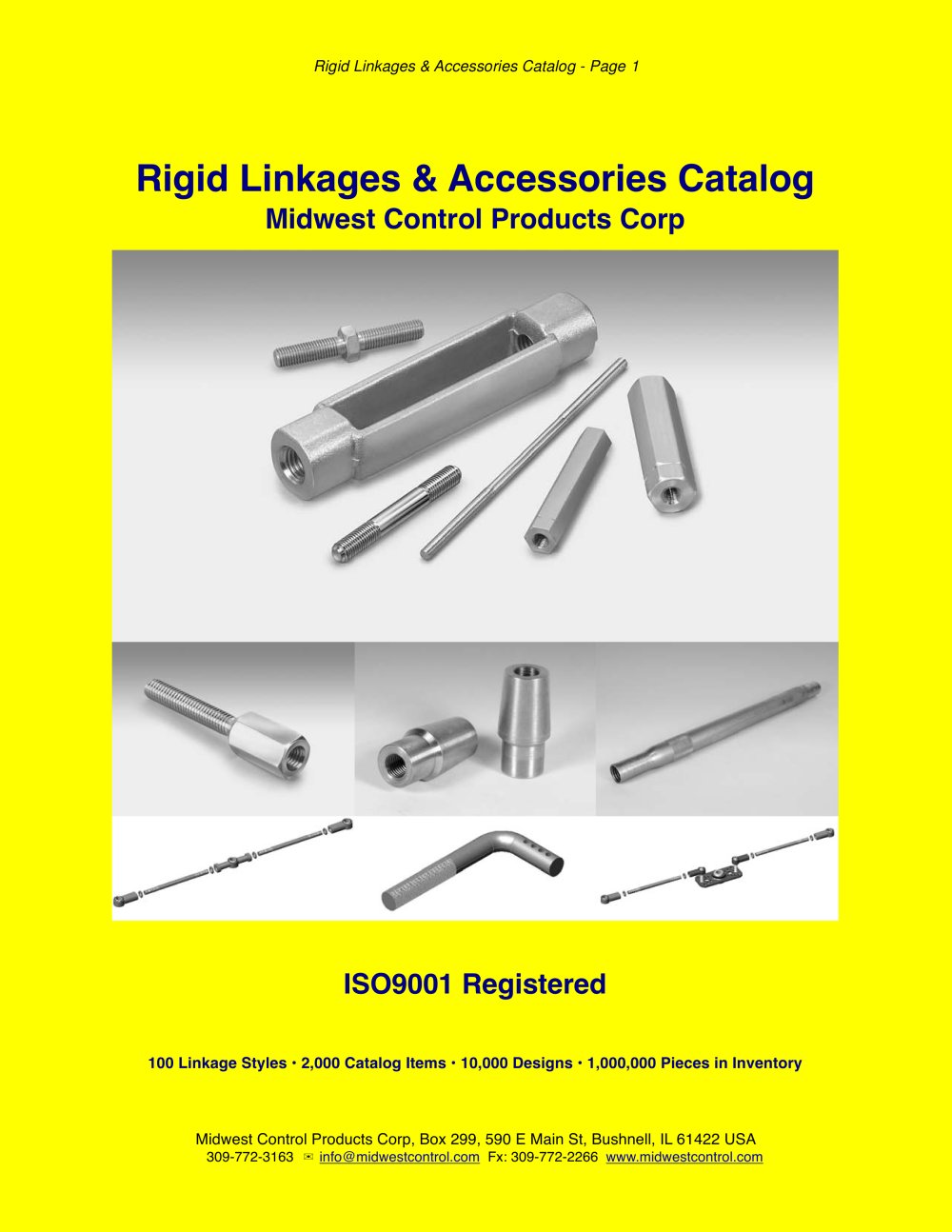

Rigid Linkages-1

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA > Midwest Control Products Corp Rigid Linkages & Accessories Catalog - Page 1 > Rigid Linkages & Accessories Catalog ISO9001 Registered 100 Linkage Styles 2,000 Catalog Items Օ ! 10,000 Designs 1,000,000 Pieces in Inventory >

 Open the catalog to page 1
Rigid Linkages-2

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com > Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA Rigid Linkages & Accessories Catalog - Page 2 MHT 8 Steel Metric FTM 3 Metric HBT 4 Steel Inch JSM 12 Metric SU 20 TRC 22 Steel Chrome Plated, LH/RH Threads WTF A 35 Aluminum > Family Photo Series Pg Material Features System Links FT 3 Steel Forged Housing, LH/RH Thread Inch Links AHT 4 Aluminum Hex Shaped, LH/RH Threads Inch Links JSi 12 Steel Jack Screws Inch Links LBA 13 Steel Ladder Bar Adjuster Inch Systems MBC 14 Steel Universal...

 Open the catalog to page 2
Rigid Linkages-7

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA " x " I n d i c a t e s T h r e a d S i z e I n d i c a t e s H e x B a r L e n g t h H B T [ x ] - [ L e n g t h ] N o m e n c l a t u r e R i g h t H a n d T h r e a d s L e f t H a n d T h r e a d s > AHT (Aluminum) & HBT (Steel) Hex T urnbuckles Rigid Linkages & Accessories Catalog - Page 7 L > Left Hand and Right Hand Threads Cable Controls Catalog Performance Catalog Fabrications Catalog >

 Open the catalog to page 7
Rigid Linkages-12

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com > Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T H R E A D T H R E A D L E F T H A N D R I G H T H A N D JSI & JSM (Jack Screw T urnbuckles) B Rigid Linkages & Accessories Catalog - Page 12 A JSI-4F 1/4-28 RH & LH JSI-5F 5/16-24 RH & LH JSI-6C 3/8-24 RH & LH JSI-8F 1/2-20 RH & LH JSI-10F 5/8-18 RH & LH JSI-12F 3/4-16 RH & LH > Steel Construction, Plated Zinc Y ellow Part Number Thread Thread Length Hex Size A B JSI-3F 10-32 RH & LH 0.563 0.313 1.402 0.156 JSI-4C 1/4-20 RH & LH 0.750...

 Open the catalog to page 12
Rigid Linkages-13

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA > M a l e T h r e a d F e m a l e T h r e a d LBA (Ladder Bar Adjusters) D B No Minimums. 3,000+ items. F C Rigid Linkages & Accessories Catalog - Page 13 > www.midwestcontrol.com Linkages Buy On-Line at A Number Thread Thread >

 Open the catalog to page 13
Rigid Linkages-14

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA > No Minimums. 3,000+ items. Rigid Linkages & Accessories Catalog - Page 14 > www.midwestcontrol.com Polished Ball

 Open the catalog to page 14
Rigid Linkages-15

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA ( . 1 4 ) . 2 5 5 . 1 2 C > Set Screws Provide Attachment Method . 7 5 ѱ . 1 2 ( . 3 1 3 ) > MCA (Crank Arms) G . 5 ر . 1 2 > No Minimums. 3,000+ items. Rigid Linkages & Accessories Catalog - Page 15 > www.midwestcontrol.com Linkages ( 1 . R a d i u s ) > Buy On-Line at Joints Catalog > Steel Construction, Plated Zinc Y ellow Rigid Part Number C G MCA-6 2.875 0.387 MCA-7 2.875 0.450 MCA-8 2.875 0.512 MCAX-6 4.625 0.387 MCAX-7 4.625 0.450 MCAX-8 4.625 0.512 Other Midwest Control Products ʼ Catalogs... Fabrications Catalog...

 Open the catalog to page 15
Rigid Linkages-16

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T h r e a d C B A D > S t y l e B D B ؘ A > RBK (Shift Knobs) No Minimums. 3,000+ items. Rigid Linkages & Accessories Catalog - Page 16 > www.midwestcontrol.com Linkages T h r e a d > Buy On-Line at (ball ) (thd depth) (stem ؘ) (height) > Material: Black Phoenolic Plastic S t y l e A Rigid Part Number Thread Style A B C D RBK-500F-1 1/2-20 RH A 1.380 0.500 na - RBK-500F-2 * 1/2-20 RH A 1.620 0.625 na - RBK-625F-1 5/8-18 RH A 1.900 0.591 na 1.81 1 RBK-750-1 3/4-16 RH B 1.870 0.787 1.024 2.680 * The RBK-500F-2 threads...

 Open the catalog to page 16
Rigid Linkages-17

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com > Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA E ( T y p ) D 2 D 1 D 4 D 3 F T h r e a d R PBR (Bent 90ذ Rods) No Minimums. 3,000+ items. A B Rigid Linkages & Accessories Catalog - Page 17 www.midwestcontrol.com Linkages for our swivels-> > Buy On-Line at C vises Catalog >

 Open the catalog to page 17
Rigid Linkages-18

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com > Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T T u u b b e e I O SCT (Pre-Cut Chrome Moly T ubes) D D Rigid Linkages & Accessories Catalog - Page 18 C u t L e n g t h . 9 " 4130 Chome Moly T ubing - Cut to Length 0.625 OD x 0.058 T ube 0.750 OD x 0.125 T ube 0.875 OD x 0.083 T ube 1.000 OD x 0.058 T ube SCT -10-058-06 6.0 SCT -12-125-06 6.0 SCT -14-083-06 6.0 SCT -16-058-06 6.0 SCT -10-058-12 12.0 SCT -12-125-12 12.0 SCT -14-083-12 12.0 SCT -16-058-12 12.0 SCT -10-058-18 18.0 SCT...

 Open the catalog to page 18
Rigid Linkages-21

Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T h r e a d S i z e 2 " R o d L e n g t h S S R ( x x x ) - 2 . N o r m e n c l a t u r e R i g h t H a n d T h r e a d ( B o t h E n d s ) > SSR (Stainless Threaded Rods) Rigid Linkages & Accessories Catalog - Page 21 > Parts are Threaded RH/RH T h r e a d m a y b e c u t o n n o m i n a l d i a m e t e r o r r o l l e d o n p i t c h d i a m e t e r m a t e r i a l . > 300 Series Stainless Steel

 Open the catalog to page 21
Rigid Linkages-22

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T h r e a d S i z e 1 2 . " R o d L e n g t h T R ( x x x x ) - 1 2 . N o r m e n c l a t u r e TRC (Standard Chrome Plated & Threaded Rods) L e f t H a n d T h r e a d R i g h t H a n d T h r e a d Rigid Linkages & Accessories Catalog - Page 22 Plated Bright Chrome Steel Construction T h r e a d m a y b e c u t o n n o m i n a l d i a m e t e r o r r o l l e d o n p i t c h d i a m e t e r m a t e r i a l . and Length and Length Part Number...

 Open the catalog to page 22
Rigid Linkages-23

ὸ 309-772-3163 [email protected] Fx: 309-772-2266 www .midwestcontrol.com Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA T h r e a d S i z e 1 2 . " R o d L e n g t h T R ( x x x x ) - 1 2 . 14.749. N o r m e n c l a t u r e of 14.000Ԕ, and a maximum assembly length of gives a center-to-center minimum assembly length rod that, when assembled to spherical rod ends, TR (Standard Threaded Rods - 10-32 Threads) L e f t H a n d T h r e a d R i g h t H a n d T h r e a d noted. For example, the TR1875-13.000 is a 13 the center-to-center lengths using the linkage...

 Open the catalog to page 23
