G-Link® is a high-speed, triaxial accelerometer node designed for integration into wireless sensor networks. It combines MEMS accelerometers with MicroStrain’s Micro Datalogging Transceiver systems, offering 2 KHz sweep rates and 2 Mbytes of flash memory. Each node has a unique 16-bit address, allowing a single host transceiver to manage thousands of nodes. The system supports real-time data transmission and logging from up to 70 meters, with simultaneous streaming from up to 16 nodes in the 2.4 GHz range. Available in 2g or 10g ranges, these accelerometers are suitable for monitoring tilt and vibration in various applications.

Features & Benefits

2.4 GHz direct sequence spread spectrum radio, license-free worldwide.
IEEE 802.15.4 open communication architecture.
Supports simultaneous streaming from multiple nodes to a PC.
Available in 2g or 10g range.
Datalogging rates up to 2048 Hz and real-time streaming rates up to 736 Hz.
On-board memory for up to 1,000,000 measurements.
Communication range up to 70m line-of-sight.
Low power consumption for extended use.

Applications

Inclination and vibration testing and control.
Security systems using wireless sensor networks.
Assembly line testing with smart packaging.
Sports performance and sports medicine analysis.
Condition-based maintenance via wireless sensor networks.
Smart machines, structures, and materials.

Specifications

Triaxial MEMS accelerometers (ADXL202 or ADXL210).
Accelerometer range: ±2 g or ±10 g.
Measurement accuracy: 10 mg; Resolution: 200 µg/√Hz.
Shock limit: 500 g.
12-bit A/D converter.
Data storage capacity: 2 megabytes.
Data logging mode: 32 Hz to 2048 Hz.
Real-time streaming mode: 1 to 4 KHz depending on channels.
Low duty-cycle mode supports multiple nodes on a single RF channel.
2.4 GHz RF transceiver, license-free worldwide.
RF data packet standard: IEEE 802.15.4.
RF programming & downloading: 8 minutes for full memory.
Range: 70 m line-of-sight, up to 300 m with high gain antenna.
Internal Li-Ion battery: 3.7 volt, 200 mAh.
Power consumption: 25 mA for streaming and datalogging, 0.5 mA in sleep mode.
Operating temperature: -20 to +60˚C, extended range optional.
Dimensions: 58 mm x 43 mm x 26 mm; Weight: 46 grams.
Case: ABS plastic.
Software: Agile-Link™ compatible with Windows XP.
PC Communication: Serial port, 115.2 kBaud.

Catalog excerpts

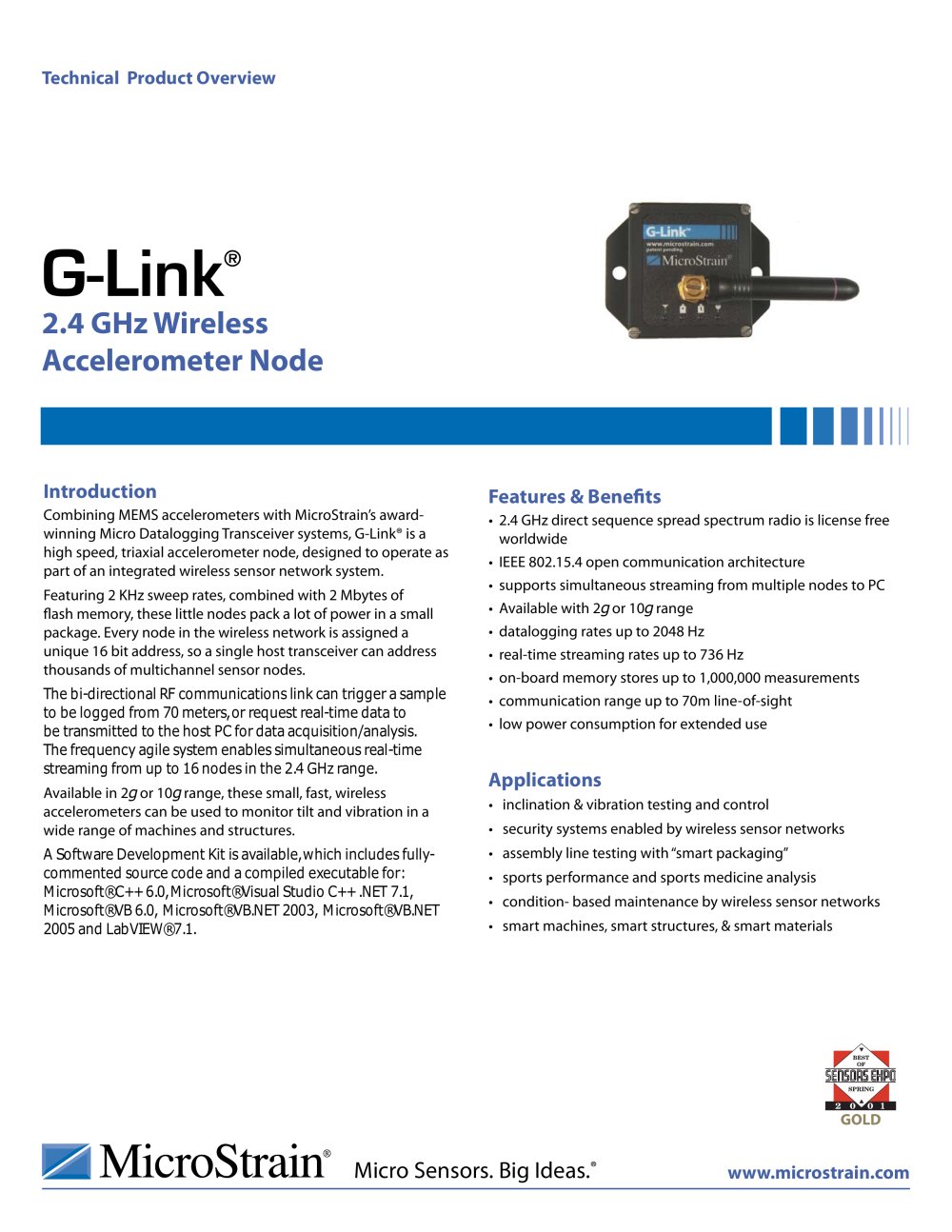

Combining MEMS accelerometers with MicroStrainΒs award- winning Micro Datalogging Transceiver systems, G-Link is a high speed, triaxial accelerometer node, designed to operate as part of an integrated wireless sensor network system.Featuring 2 KHz sweep rates, combined with 2 Mbytes of fl ash memory, these little nodes pack a lot of power in a small package. Every node in the wireless network is assigned a unique 16 bit address, so a single host transceiver can address thousands of multichannel sensor nodes. Ε 2.4 GHz direct sequence spread spectrum radio is license free worldwide IEEE 802.15.4 open communication architecture Օ supports simultaneous streaming from multiple nodes to PC Available with 2 g or 10 g rangeՕ datalogging rates up to 2048 Hz real-time streaming rates up to 736 Hz Օ on-board memory stores up to 1,000,000 measurements communication range up to 70m line-of-sight Օ low power consumption for extended use Available in 2 g or 10 g range, these small, fast, wireless accelerometers can be used to monitor tilt and vibration in a wide range of machines and structures. A Software Development Kit is available, which includes fully-commented source code and a compiled executable for: Microsoft C++ 6.0, Microsoftή Visual Studio C++ .NET 7.1, Microsoft VB 6.0, Microsoftή VB.NET 2003, Microsoft VB.NET 2005 and LabVIEWή 7.1. The bi-directional RF communications link can trigger a sample to be logged from 70 meters, or request real-time data to be transmitted to the host PC for data acquisition/analysis. The frequency agile system enables simultaneous real-time streaming from up to 16 nodes in the 2.4 GHz range. > inclination & vibration testing and controlՕ security systems enabled by wireless sensor networks assembly line testing with Փsmart packaging ԕ sports performance and sports medicine analysis condition- based maintenance by wireless sensor networks Օ smart machines, smart structures, & smart materials >
