MICROS Routine Laboratory Microscope Series "MC50"
2Pages

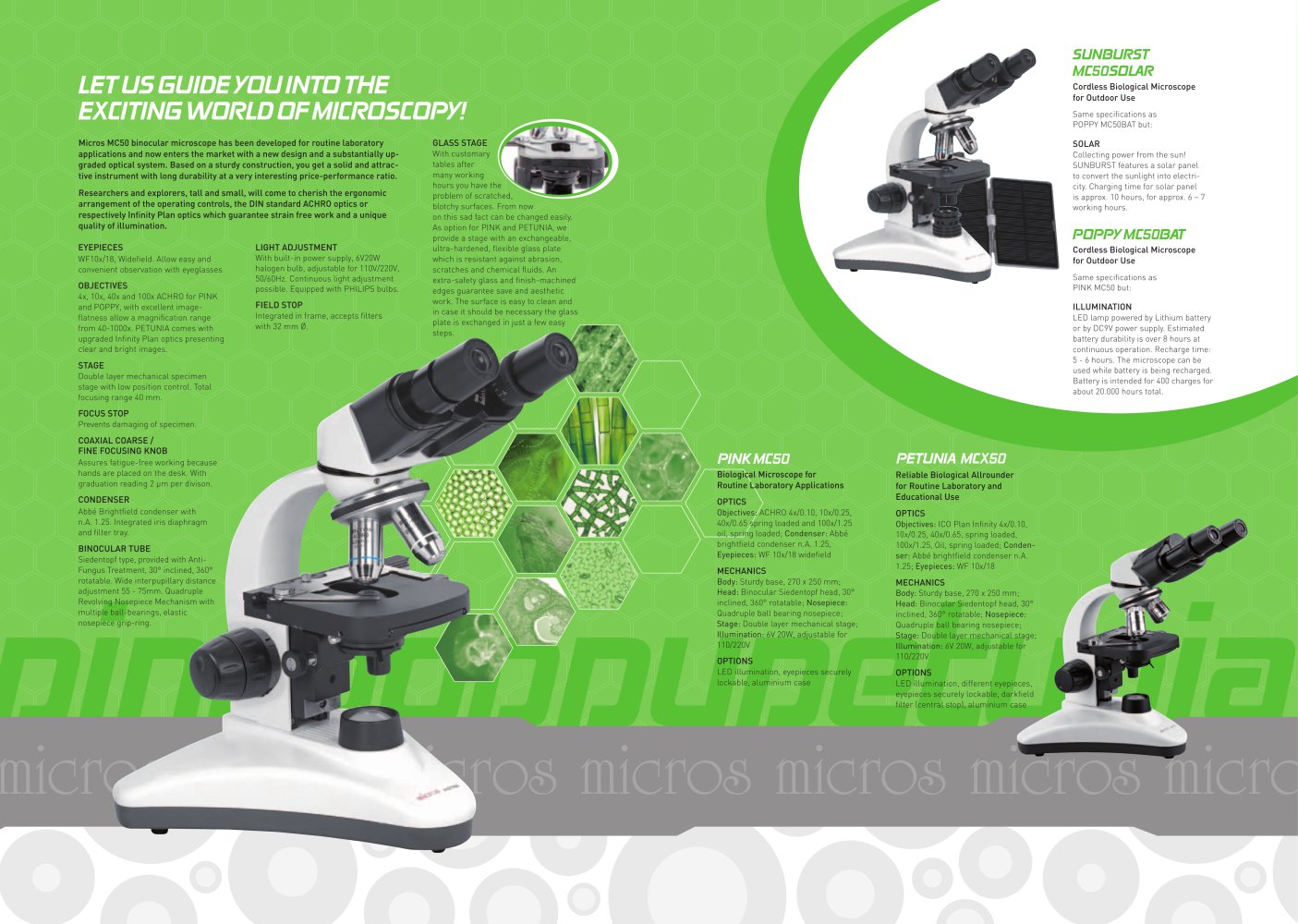

pinkpoppypetunia LET US GUIDE YOU INTO THE EXCITING WORLD OF MICROSCOPY! Micros MC50 binocular microscope has been developed for routine laboratory applications and now enters the market with a new design and a substantially upgraded optical system. Based on a sturdy construction, you get a solid and attractive instrument with long durability at a very interesting price-performance ratio. Researchers and explorers, tall and small, will come to cherish the ergonomic arrangement of the operating controls, the DIN standard ACHRO optics or respectively Infi nity Plan optics which guarantee strain free work and a unique quality of illumination. micros micros micros micros micros micros micro EYEPIECES WF10x/18, Widefi eld. Allow easy and convenient observation with eyeglasses OBJECTIVES 4x, 10x, 40x and 100x ACHRO for PINK and POPPY, with excellent imagefl atness allow a magnifi cation range from 40-1000x. PETUNIA comes with upgraded Infi nity Plan optics presenting clear and bright images. STAGE Double layer mechanical specimen stage with low position control. Total focusing range 40 mm. FOCUS STOP Prevents damaging of specimen. COAXIAL COARSE / FINE FOCUSING KNOB Assures fatigue-free working because hands are placed on the desk. With graduation reading 2 ìm per divison. CONDENSER Abbé Brightfi eld condenser with n.A. 1.25. Integrated iris diaphragm and fi lter tray. BINOCULAR TUBE Siedentopf type, provided with Anti- Fungus Treatment, 30° inclined, 360° rotatable. Wide interpupillary distance adjustment 55 - 75mm. Quadruple Revolving Nosepiece Mechanism with multiple ball-bearings, elastic nosepiece grip-ring. LIGHT ADJUSTMENT With built-in power supply, 6V20W halogen bulb, adjustable for 110V/220V, 50/60Hz. Continuous light adjustment possible. Equipped with PHILIPS bulbs. FIELD STOP Integrated in frame, accepts fi lters with 32 mm Ø. GLASS STAGE With customary tables after many working hours you have the problem of scratched, blotchy surfaces. From now on this sad fact can be changed easily. As option for PINK and PETUNIA, we provide a stage with an exchangeable, ultra-hardened, fl exible glass plate which is resistant against abrasion, scratches and chemical fl uids. An extra-safety glass and fi nish-machined edges guarantee save and aesthetic work. The surface is easy to clean and in case it should be necessary the glass plate is exchanged in just a few easy steps. POPPY MC50BAT Cordless Biological Microscope for Outdoor Use Same specifi cations as PINK MC50 but: ILLUMINATION LED lamp powered by Lithium battery or by DC9V power supply. Estimated battery durability is over 8 hours at continuous operation. Recharge time: 5 - 6 hours. The microscope can be used while battery is being recharged. Battery is intended for 400 charges for about 20.000 hours total. SUNBURST MC50SOLAR Cordless Biological Microscope for Outdoor Use Same specifi cations as POPPY MC50BAT but: SOLAR Collecting power from the sun! SUNBURST features a solar panel to convert the sunlight into electricity. Charging time for solar panel is approx. 10 hours, for approx. 6 – 7 working hours. PETUNIA MCX50 Reliable Biological Allrounder for Routine Laboratory and Educational Use OPTICS Objectives: ICO Plan Infi nity 4x/0.10, 10x/0.25, 40x/0.65, spring loaded, 100x/1.25, Oil, spring loaded; Condenser: Abbé brightfi eld condenser n.A. 1.25; Eyepieces: WF 10x/18 MECHANICS Body: Sturdy base, 270 x 250 mm; Head: Binocular Siedentopf head, 30° inclined, 360° rotatable; Nosepiece: Quadruple ball bearing nosepiece; Stage: Double layer mechanical stage; Illumination: 6V 20W, adjustable for 110/220V OPTIONS LED illumination, different eyepieces, eyepieces securely lockable, darkfi eld fi lter (central stop), aluminium case Biological Microscope for Routine Laboratory Applications OPTICS Objectives: ACHRO 4x/0.10, 10x/0.25, 40x/0.65 spring loaded and 100x/1.25 oil, spring loaded; Condenser: Abbé brightfi eld condenser n.A. 1.25, Eyepieces: WF 10x/18 widefi eld MECHANICS Body: Sturdy base, 270 x 250 mm; Head: Binocular Siedentopf head, 30° inclined, 360° rotatable; Nosepiece: Quadruple ball bearing nosepiece; Stage: Double layer mechanical stage; Illumination: 6V 20W, adjustable for 110/220V OPTIONS LED illumination, eyepieces securely lockable, aluminium case PINK MC50

micros AUSTRIA microsmic MC50 SERIES cros micros micros micros micros micros micros Magnification Range Microscope Body Nosepiece Head Stage Condenser Eyepieces Objectives Illumination Halogen Illumination Battery Illumination LED Accessories for PINK and PETUNIA Accessories for POPPY Solar Panel Options Magnification Range 40x - 1000x Sturdy, 270 x 250 mm base with supportive rubber feet Quadruple, mechanism with multiple ball bearings, elastic nosepiece grip-ring Binocular Siedentopf Head, 30° inclined, 360° rotatable, interpupillary distance 55 – 75 mm, provided with Anti-Fungus...
