MICROS Laboratory Microscope LILY MCX500
2Pages

{{requestButtons}}

Catalog excerpts

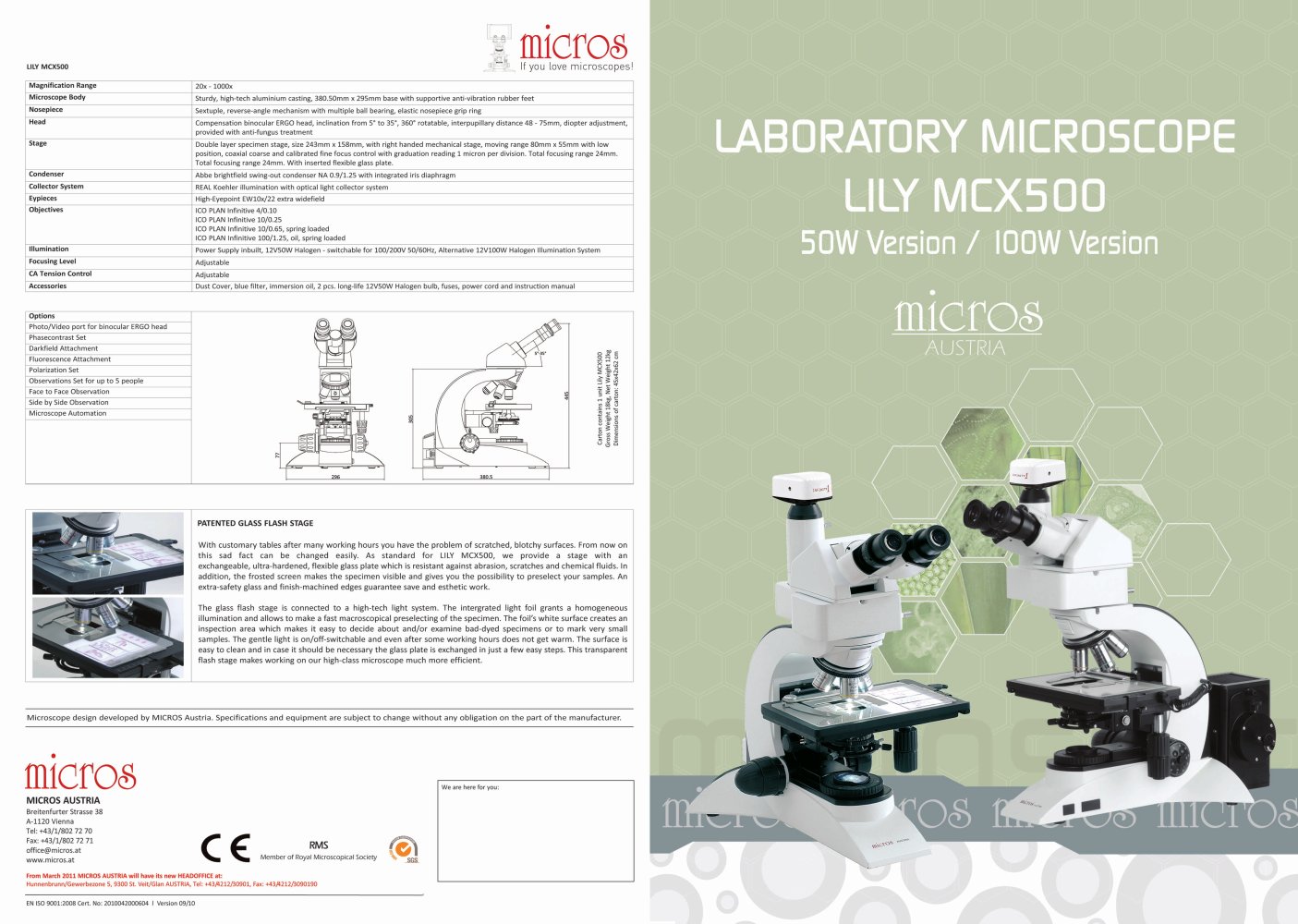

MICROS Laboratory Microscope LILY MCX500 - 1

micros LILY MCX500 !| If you love microscopes Magnification Range 20x-1000x Microscope Body Sturdy, high-tech aluminium casting, 380.50mm x 295mm base with supportive anti-vibration rubber feet Nosepiece Sextuple, reverse-angle mechanism with multiple bail bearing, elastic nosepiece grip ring Head Compensation binocular ERGO head, inclination from 5° to 35°, 360° rotatable, interpupillary distance 48 - 75mm, diopter adjustment, provided with anti-fungus treatment Stage Double layer spcimen stage, size 243mm x 158mm, with right handed mechanical stage, moving range 80mm x 55mm with low position, coaxial coarse and calibrated fine focus controi with graduation reading 1 micron per division. Total focusing range 24mm. Total focusing range 24mm. With inserted flexible glass plate. Condenser Abbe brightfield swing-out condenser NA 0.9/1.25 with integrated iris diaphragm Collecter System REAL Koehler illumination with optical light collector System Eypieces High-Eyepoint EW10x/22 extra widefield Objectives ICO PLAN Infinitive 4/0.10 ICO PLAN Infinitive 10/0.25 ICO PLAN Infinitive 10/0.65, spring loaded ICO PLAN Infinitive 100/1.25, oil, spring loaded Illumination Power Supply inbuilt, 12V50W Halogen - switchable for 100/200V 50/60HZ, Alternative 12V100W Halogen Illumination System Focusing Level Adjustable CA Tension Control Adjustable Accessories Dust Cover, blue filter, immersion oil, 2 pcs. long-life 12V50W Halogen bulb, fuses, power cord and instruction manual LAB0RAT0RY MICROSCOPE LILY MCX500 50W Version / I00W Version micros Options o ^ O rsi X Photo/Video port for binocular ERGO head Phasecontrast Set Darkfield Attachment Fluorescence Attachment Polarization Set Observations Set for up to 5 people Face to Face Observation Side by Side Observation Microscope Automation II! PATENTED GLASS FLASH STAGE With customary tables after many working hours you have the problem of scratched, blotchy surfaces. From now on this sad fact can be changea easily. As standard for LILY MCX500, we provide a stage with an exchangeable, ultra-hardened, flexible glass plate which is r鄩sistant against abrasion, scratches and chemical fluids. In addition, the frosted screen makes the spcimen visible and gives you the possibility to preselect your samples. An extra-safety glass and finish-machined edges guarantee save and esthetic work. The glass flash stage is connected to a high-tech light System. The intergrated light foil grants a homogeneous illumination and allows to make a fast macroscopical preselecting of the spcimen. The foil's white surface cr驩tes an inspection area which makes it easy to dcide about and/or examine bad-dyed sp⩩cimens or to mark very small samples. The gentle light is on/off-switchable and even after some working hours does not get warm. The surface is easy to clean and in case it should be necessary the glass plate is exchanged in just a few easy steps. This transparent flash stage makes working on our high-class microscope much more efficient. Microscope design developed by MICROS Austria. Spcifications and equipment are subject to change without any obligation on the part of the manufacturer. micros MICROS AUSTRIA Breitenfurter Strasse 38 A-1120 Vienna Tel:+43/1/802 72 70 Fax: +43/1/802 72 71 office@micros.at www.micros.at RMS Member of Royal Microscopical Society We are here for you: SGS From March 2011 MICROS AUSTRIA will have its new HEADOFFICE at: Hunnenbrunn/Gewerbezone 5, 9300 St. Veit/Glan AUSTRIA, Tel: +43/4212/30901, Fax: +43/4212/3090190 EN ISO 9001:2008 Cert. No: 2010042000604 I Version 09/10

Open the catalog to page 1
MICROS Laboratory Microscope LILY MCX500 - 2

For professional research Sharpness, clariy and flaness cai i be MCX500 is the resuit of processing high-quality raw materials with great accuracy and a love ERGONOMICTUBE Tireless relaxed work with a microscope over a long period of time can only be achieved by the optimal adjustment of an ergonomie tube. MCX500 ergonomie tube can be smoothly inclined in diffﯩrent angles between 5° and 35°. Interpupillary distance is variable from 48 - 75 mm with diopter adjustment. On the optional photo/video port ail popular photo and video camras can be mounted. OPTICAL SYSTEM The infinitive corrected...

Open the catalog to page 2
