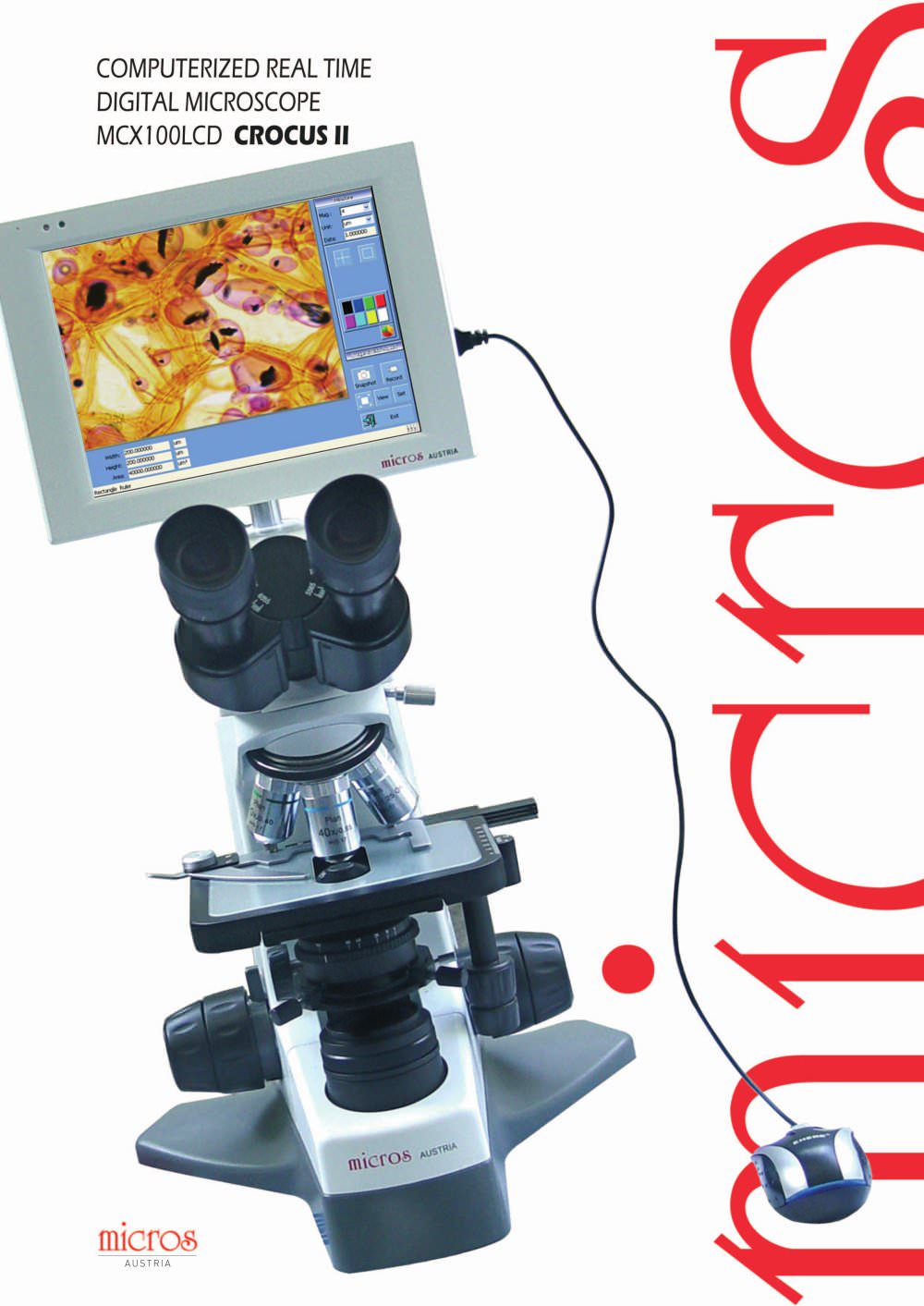

MICROS Computerized Real Time Digital Microscope CROCUS II MXC100LCD

Product catalog summary

Overview: The document describes the specifications and features of the Crocus II, a high-tech optical microscope integrated with advanced computer image processing capabilities. It is designed for observing, analyzing, and grading biological images, with functionalities for capturing photos and videos, and storing, outputting, and printing images.

Specifications:

Display and Camera: 8.4-inch TFT LCD touch screen with a resolution of 800 x 600, 2 Mega pixel CMOS real-time camera, USB 2.0, SD interface, AV/VGA connection, and image capture function.
Operating System: Real-time operating system WIN CE 5.0 with W-LAN and LAN functions.
Recording Capabilities: Supports video recording in MPEG-4 format, MIC audio input, digital voice recording, and audio output.
Input Support: Keyboard and mouse input support with measuring function.
Optical Magnification: Range from 40x to 1000x.
Microscope Body: Sturdy base measuring 300 x 270 mm with supportive rubber feet.
Nosepiece: Quintuple, reverse-angle mechanism with multiple ball bearings and elastic nosepiece grip-ring.
Head: Binocular Siedentopf head, 30° inclined, with interpupillary distance of 55 - 75 mm and anti-fungus treatment.
Stage: Double layer mechanical stage, 160 x 140 mm, with exchangeable ultra-hardened flexible glass plate, low position coaxial course, and calibrated fine focus control.
Condenser: Abbé brightfield condenser with n.A. 1.25, integrated aperture diaphragm, and positive guide marking for objectives.
Eyepieces: EW 10x/20 extra widefield with diopter adjustment and eye shields.
Objectives: ICO Plan Infinitive objectives ranging from 4x/0.10 to 100x/1.25 oil, spring-loaded.
Illumination: Koehler Illumination with in-built power supply, 6V 20W halogen bulb, switchable to 110/220V, 50/60Hz.
Focusing and Control: Adjustable focusing level and CA tension control.

Accessories: Includes dust cover, blue filter, immersion oil, instruction manual, fuses, two PHILIPS 6V 20W halogen bulbs, and an optical mouse. Optional accessories include an aluminum case, lockable eyepieces, and a stand for the LCD screen.

Manufacturer Information: Developed by MICROS AUSTRIA with contact details for various regional offices including Austria, USA, Russia & CIS, and Iberoamerica.

Certifications: Member of the Royal Microscopical Society and EN ISO 9001:2000 certified.
